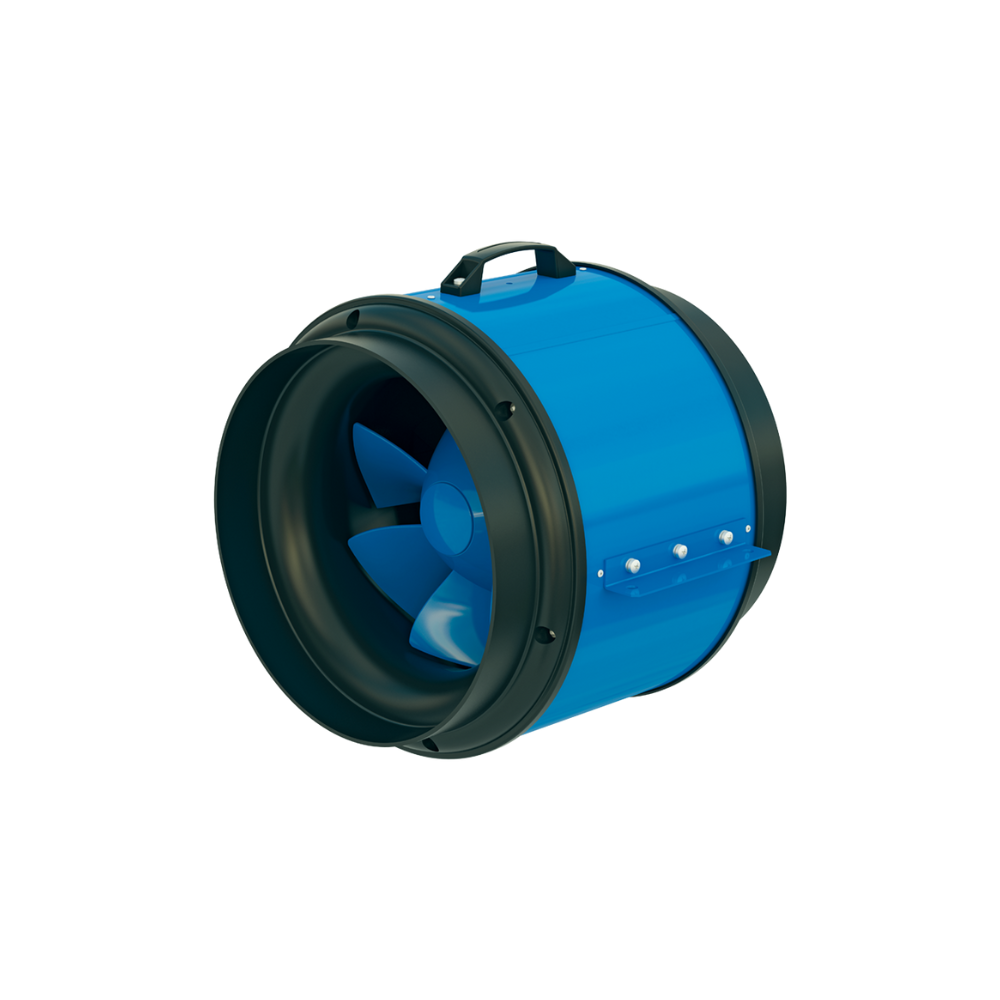

Blauberg Primo 355 Mixed Flow Inline EC Fan - 355MM (14" Inch) | 3685 M3/H | IPX4
Air Flow 3685 M³/H | Power Consumption 352W | IPX4
Blauberg Primo 355 Mixed Flow Inline EC Fan - 355MM (14" Inch)...
Product Overview
| Model Number | Primo EC 355 |
| Airflow (M³/H) | 3685 |
| Duct Flange Size | 350MM (14" Inch) |
| Motor Type | EC |
| Exhaust Fan Power (W) | 353 |
| Noise Level | 55 dBA at 3M |
| IP Rating | IPX4 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | PWM (0–10V) Control |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Blauberg - 2 years replacement warranty* |
Description
Description
The Blauberg Primo EC 355 mixed flow inline fan is a compact high performance solution for commercial and industrial supply and exhaust ventilation. Delivering up to 3685 M3/H through a 355MM (14" Inch) duct, it is ideal for medium-length duct runs, risers and plant rooms where reliable airflow and static pressure are required. The energy-efficient EC motor reduces running costs and allows smooth 0-10V speed control compared with standard AC fans.
A robust plastic casing with reinforced housing, IPX4 protection and an operating range from -250C to +550C makes this fan suitable for demanding Australian conditions. Running on 230V single phase with only 346W rated power, it provides strong performance up to 2470 RPM with sound levels from 33 to 63 dB(A) at 3M. The Primo EC 355 mounts in any position in the duct run, giving HVAC contractors, builders and maintenance teams a reliable inline duct fan for commercial ventilation projects across Australia.
Note: This fan is supplied without a power cable. Installation must be carried out by a qualified electrician.
Features
Features
- High efficiency EC motor for reduced energy use and smooth 0-10V speed control
- Mixed flow impeller delivering up to 3685 M3/H through 355MM ductwork
- Compact plastic casing with IPX4 protection for commercial and industrial environments
- 230V single phase supply compatible with standard Australian electrical installations
- Flexible mounting in any duct orientation for easy installation on site
Specifications
Specifications
- Model: Blauberg Primo EC 355
- Fan type: Inline mixed flow EC fan
- Maximum airflow: 3685 M3/H (approx. 1024 L/s)
- Connected air duct size: 355MM (14" Inch) round
- Duct connection diameter (D): 350MM (35.0CM)
- Outer flange diameter (D1): 390MM (39.0CM)
- Supply voltage: 230V, single phase, 50Hz
- Rated power: 346W
- Unit current: 1.54A
- Motor type: EC motor, external rotor
- Impeller type: Mixed flow
- Maximum fan speed: 2470 RPM
- Sound pressure level at 3M: 33 to 63 dB(A)
- Transported air temperature: -25°C to +55°C
- Ingress protection: IPX4 housing, IP44 motor
- Casing material: Plastic with reinforced housing
- Installation: Inline duct mounting in any position
- Typical applications: Commercial and industrial supply and exhaust ventilation
What's in the box
What's in the box
- [1] x Blauberg Primo 355 Mixed Flow Inline EC Fan - 355MM (14" Inch) | Metal Casing
