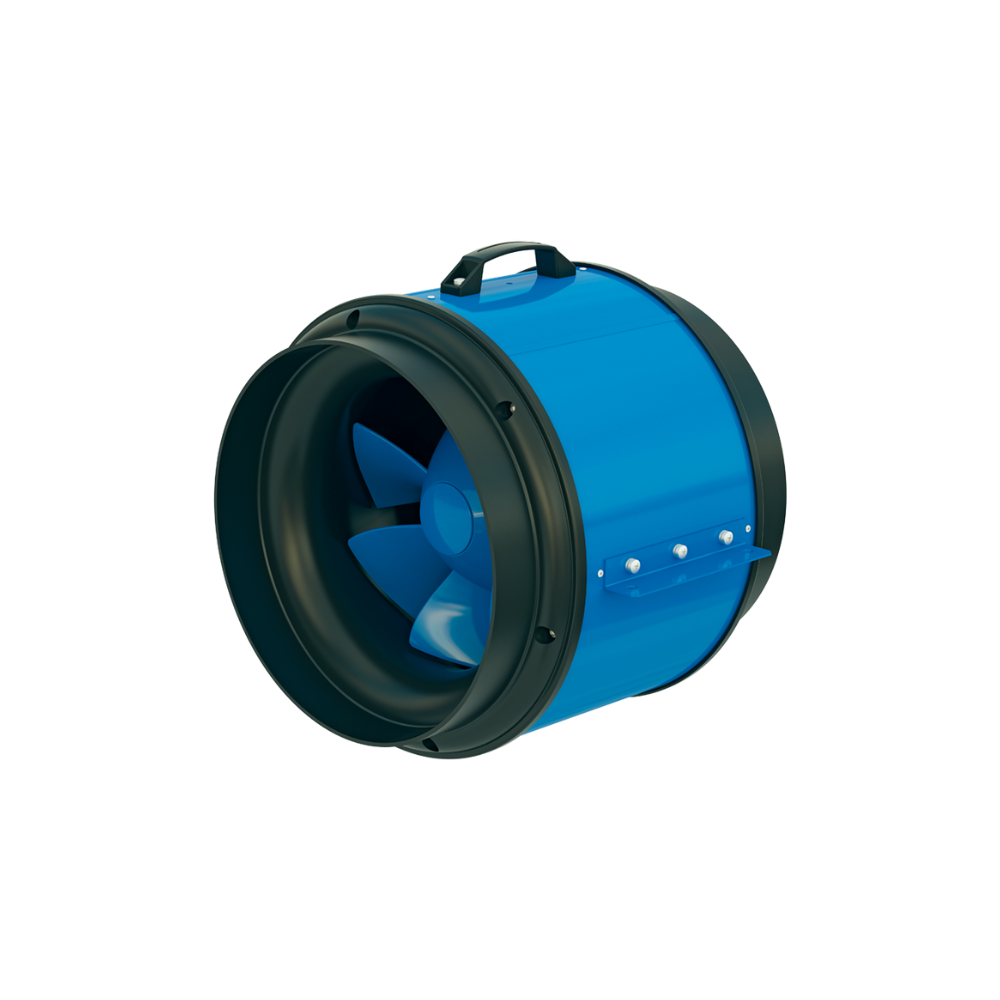

Blauberg Primo 400 Mixed Flow Inline EC Fan - 400MM (16" Inch) | Metal Casing
Air Flow 5700 M³/H | Power Consumption 726W | IPX4
Blauberg Primo 400 Mixed Flow Inline EC Fan - 400MM (16" Inch)...
Product Overview
| Model Number | Primo EC 400 |
| Airflow (M³/H) | 5700 |
| Duct Flange Size | 400MM (16" Inch) |
| Motor Type | EC |
| Exhaust Fan Power (W) | 726 |
| Noise Level | 60 dBA at 3M |
| IP Rating | IPX4 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | PWM (0–10V) Control |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Blauberg - 2 years replacement warranty* |
Description
Description
The Blauberg Primo 400 mixed flow inline EC fan is a high-performance solution for commercial and industrial supply and exhaust ventilation. Delivering up to 5700 M3/H through a 400MM (16" Inch) duct, it is ideal for long duct runs, high resistance systems and plant rooms in Australian projects. The high efficiency EC motor provides lower running costs, soft start and smooth speed control compared with conventional AC fans.
A robust plastic casing, IPX4 protection and an operating range from -250C to +550C make this fan suitable for demanding commercial environments. With 230V single phase supply, 726W rated power and up to 2580 RPM, it offers strong airflow with sound levels from 33 to 66 dB(A) at 3M. The Primo 400 can be mounted in any position in the duct run, giving HVAC contractors, builders and maintenance teams a reliable inline duct fan for Australian ventilation installations.
Note: This fan is supplied without a power cable. Installation must be carried out by a qualified electrician.
Features
Features
- High efficiency EC motor for reduced power usage and smooth speed control
- Mixed flow impeller delivering up to 5700 M3/H through 400MM duct
- Durable plastic casing with IPX4 protection for commercial and industrial applications
- 230V single phase supply suitable for typical Australian electrical setups
- Flexible installation with mounting in any orientation in the duct run
Specifications
Specifications
- Model: Blauberg Primo EC 400
- Fan type: Inline mixed flow EC fan
- Maximum airflow: 5700 M3/H (approx. 1580 L/s)
- Duct connection size: 400MM (16" Inch) round
- Duct diameter: 400MM (40CM) nominal
- Supply voltage: 230V, single phase, 50Hz
- Rated power: 726W
- Unit current: 3.23A
- Motor type: EC motor, external rotor
- Impeller type: Mixed flow
- Maximum fan speed: 2580 RPM
- Sound pressure level at 3M: 33 to 66 dB(A)
- Transported air temperature: -25°C to +55°C
- Ingress protection: IPX4 housing, IP44 motor
- Casing material: Plastic
- Installation: Inline duct mounting in any position
- Application: Commercial and industrial supply and exhaust ventilation
What's in the box
What's in the box
- [1] x Blauberg Primo 400 Mixed Flow Inline EC Fan - 400MM (16" Inch) | Metal Casing
