Blauberg Sound Insulated Iso-Mix Inline Exhaust AC Silent Fan - 200MM (8" Inch) | 2 Speed

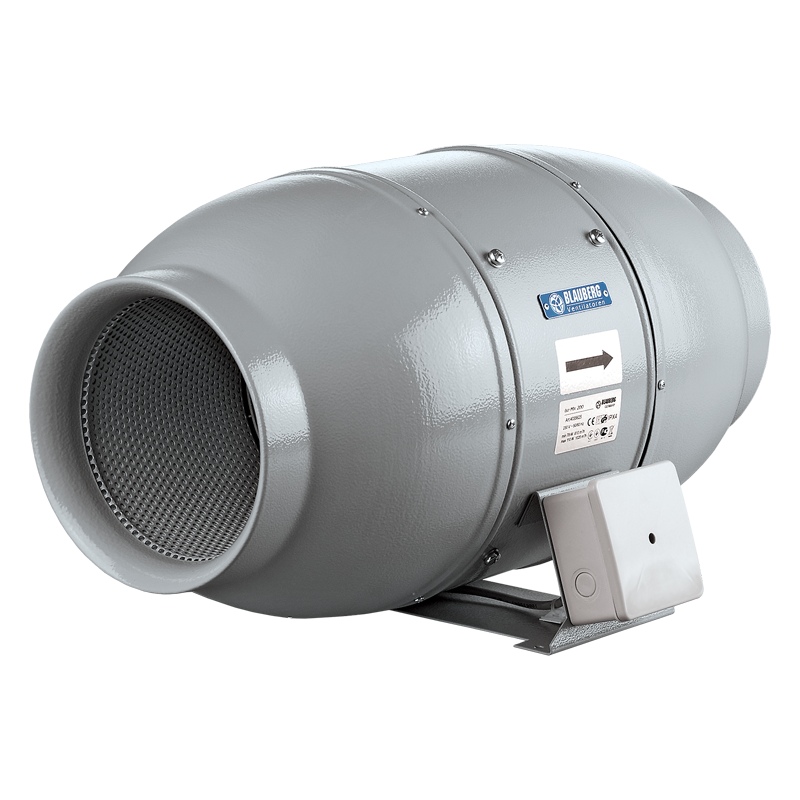

The Blauberg Iso-Mix 200MM AC Fan is a professional-grade, sound-insulated inline exhaust fan engineered for powerful airflow and low-noise performance. Designed for use in supply and extract systems across residential, commercial, or industrial settings, this fan is ideal for applications requiring high static pressure and minimal acoustic disturbance.

The unit features a polymer-coated steel casing lined with 50mm mineral wool insulation to dampen sound across a wide frequency range. Its aerodynamically optimised mixed-flow impeller, combined with precision diffusers and vanes, delivers an impressive 1035 m3/h airflow at a whisper-quiet 36 dBA. The fans two-speed AC motor offers versatility in ventilation control and includes a thermal overload protection system, compliant with Australian standards.

Compact, reliable, and energy-efficient, this 200MM model is perfect for duct systems where both performance and quiet operation are essential.

• Dual-speed airflow: 790 - 1035 m³/h with external switch
• Quiet operation: only 31 - 36 dBA at 3m
• Steel housing with 50mm mineral wool insulation for superior sound dampening
• High-efficiency mixed-flow impeller ensures pressure stability
• Plug-and-play setup - includes 1.2m lead, 2-pin plug, and 2-speed switch
• Manual reset thermal overload protection for added safety
• Flexible installation - suitable for walls, ceilings, floors, or inline duct runs
• IPX4 rating - safe for damp or humid environments

• Airflow (m³/h):
  • Low Speed: 790
  • High Speed: 1035
• RPM:
  • Low Speed: 2000
  • High Speed: 2460
• Power (W):
  • Low Speed: 78
  • High Speed: 110
• Current (A):
  • Low Speed: 0.35
  • High Speed: 0.49
• Noise @ 3m (dBA):
  • Low Speed: 31
  • High Speed: 36
• Max Operating Temp (°C):
  • High Speed: 60
• Ingress Protection:
  • High Speed: IPX4

Physical Dimensions (mm)

• Duct Diameter (D1): 198
• Width (B): 293
• Height (H): 386
• Length (L): 550
• Weight: 8.0 kg

• [1] x Blauberg Sound Insulated Iso-Mix Inline Exhaust AC Silent Fan - 200MM (8" Inch) | 2 Speed

• Specification Sheet - Click Here
• Product Manual - Click Here
