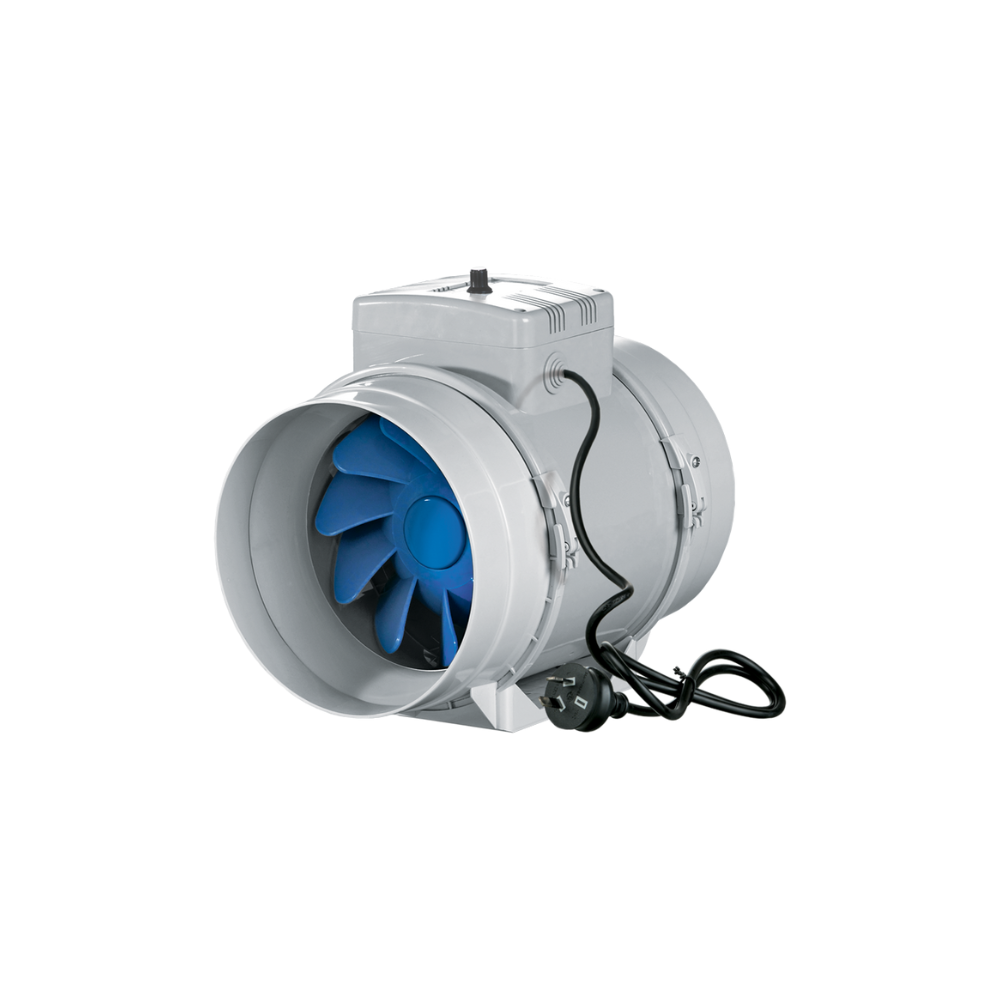

Blauberg Turbo EC Mixed Flow Fan - 200MM (8" Inch) | w/ Speed Controller & Lead and Plug

The Blauberg Turbo EC 200 is a high-capacity inline mixed-flow fan engineered for efficient air exchange up to 1040 m3/h. Featuring a quiet and powerful EC motor, it provides high static pressure and energy savings of up to 35% compared to conventional motors-making it ideal for large hydroponic grows, commercial kitchens, industrial spaces, and HVAC systems.

With 0-10V signal control, the fan can dynamically adjust airflow based on temperature, pressure, or smoke sensor inputs, and integrates seamlessly into building management systems (BMS). The hybrid axial/centrifugal impeller design ensures powerful airflow with low noise, and the fans maintenance-friendly design includes a removable motor unit and flat wall-mounting plate.

• High Volume Airflow: Moves up to 1040 m³/h for large-scale ventilation systems.
• Advanced EC Motor: Electronically commutated motor with full-range speed control and lower energy consumption.
• Smart Speed Regulation: 0-10V input control from sensors, controllers, or BMS.
• Hybrid Fan Design: Mixed-flow impeller boosts pressure and flow with minimal sound.
• Quick Maintenance: Detachable motor core enables tool-free servicing.
• Flexible Mounting: Suitable for any orientation, with built-in flat wall plate.
• Durable Build: Low-combustible polypropylene housing with IPX4 rating for humid environments.
• Wide Compatibility: Ideal for 200mm duct systems in grow rooms, commercial spaces, and industrial zones.

• Voltage: 230 V
• Phase: 1 ~
• Frequency: 50/60 Hz
• Current: 0.48 A
• Power: 55 W
• RPM: 3390 min⁻¹
• Max Air Flow: 600 m³/h
• Max Air Flow: 167 l/s
• Sound Pressure (3m): 46 dBA
• Inlet/Outlet Diameter: 150 mm
• Transport Air Temp: -25 to +55 °C
• Ingress Protection: IPX4
• Weight: 2.3 kg
• Design: Axial / Centrifugal
• SEC Class: B
• Mounting: Inline
• ErP: 2018

• [1] x Blauberg Turbo EC Mixed Flow Fan – 200MM (8" Inch) | w/ Speed Controller & Lead and Plug
