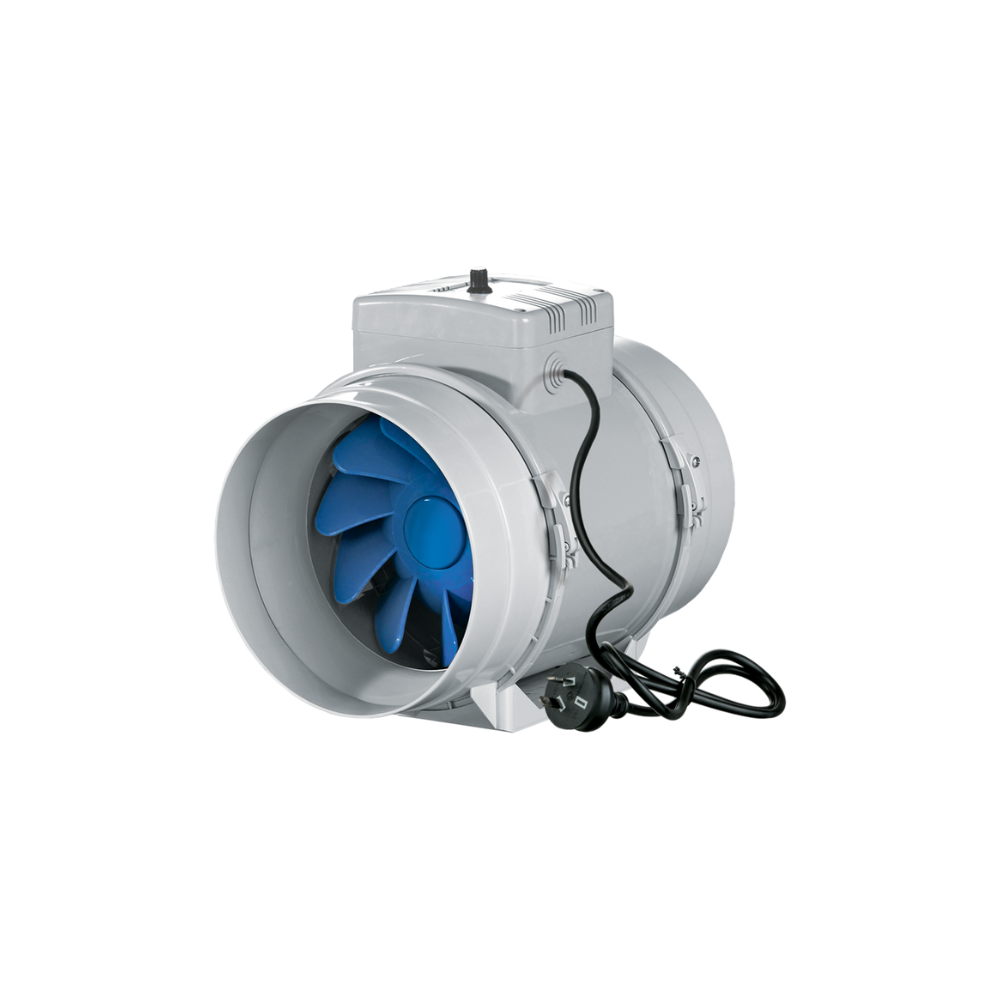

Blauberg Turbo EC Mixed Flow Fan - 250MM (10" Inch) | w/ Speed Controller & Lead and Plug
Air Flow 1285 M³/H | Power Consumption 169W | IPX4
Blauberg Turbo EC Mixed Flow Fan - 250MM (10" Inch) | w/ Speed...
Description
Description
The Blauberg Turbo EC 250 is a high-capacity inline mixed-flow fan designed to deliver up to 1285 m3/h airflow while maintaining ultra-efficient, low-noise operation. With its intelligent EC motor and support for 010V speed control, this fan is perfect for large hydroponic setups, industrial exhaust systems, and commercial applications requiring precise air volume regulation and integration with building management systems (BMS).
The advanced aerodynamic design combines the advantages of axial and centrifugal airflow, providing high pressure and volume while minimising turbulence. Its low-combustible polypropylene housing, removable motor module, and flat wall-mounting bracket make installation and servicing simple and safe. The Turbo EC 250 is suitable for 250 mm duct systems and delivers consistent performance under demanding conditions.
Specifications
Specifications
| Parameter | Value | Unit |
|---|---|---|
| Voltage | 230 | V |
| Phase | 1 | ~ |
| Frequency | 50/60 | Hz |
| Current | 1.38 | A |
| Power | 169 | W |
| RPM | 2870 | min⁻¹ |
| Max Air Flow | 1285 | m³/h |
| Max Air Flow | 357 | l/s |
| Sound Pressure (3m) | 53 | dBA |
| Connecting Piece Diameter | 250 | mm |
| Transported Air Temperature | -25 to +55 | °C |
| Ingress Protection Rating | IPX4 | - |
| Motor Type | EC Motor | - |
| Weight | 7.80 | kg |
| Design | Axial / Centrifugal | - |
| SEC Class | B | - |
| Mounting | Inline | - |
| ErP Compliance | 2018 | - |
What's in the box
What's in the box
[1] x Blauberg Turbo EC Mixed Flow Fan - 250MM (10" Inch) | w/ Speed Controller & Lead and Plug
Downloads
Downloads
Specification Sheet - Click Here
Product Manual - Click Here
