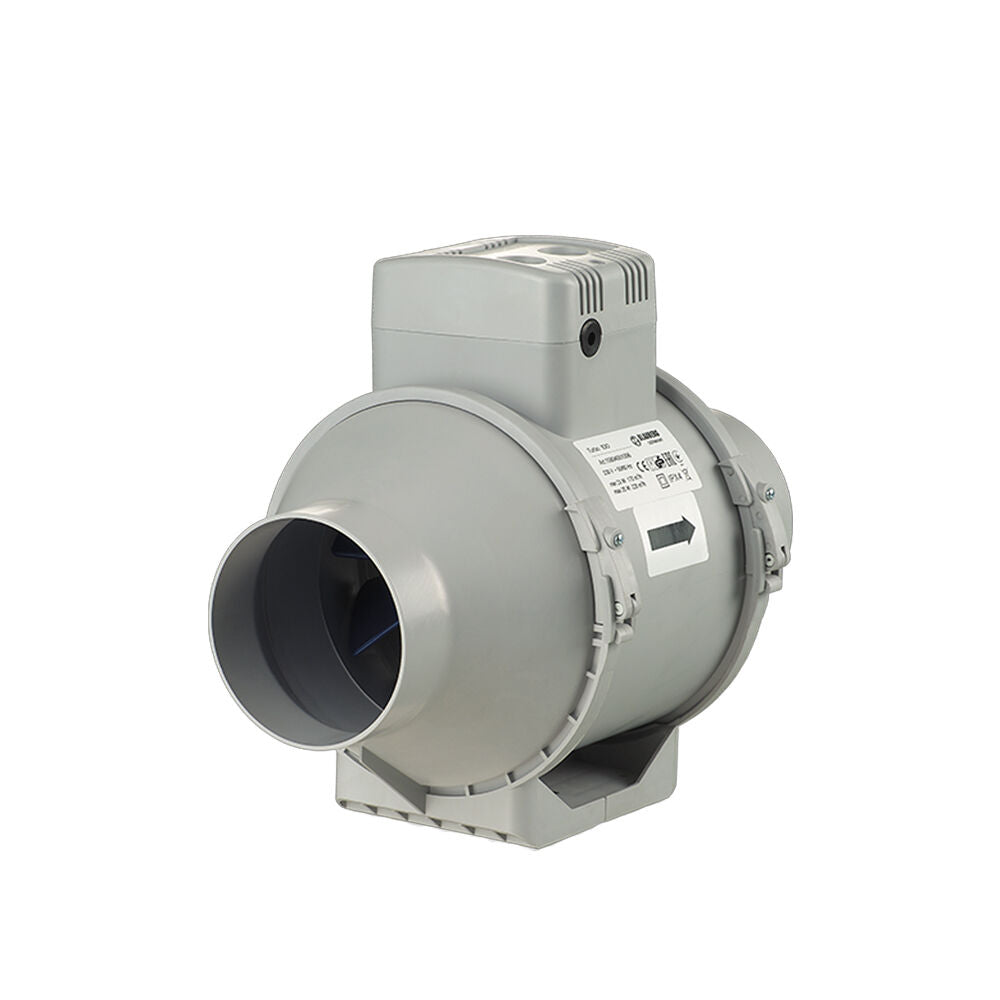

Blauberg Turbo Mixed Flow Inline AC Exhaust Fan - 100MM (4" Inch) | 2 Speed

The Blauberg Turbo Mixed Flow AC Fan 100MM is a compact inline exhaust fan designed for high-pressure duct runs in bathrooms, toilets, laundries and kitchens. Delivering up to 245 M3/H of airflow across 100MM (4" Inch) duct, it is ideal for tradies, builders and maintenance contractors needing reliable performance in tight ceiling spaces.

This mixed flow inline fan features a 2-speed AC motor with an external speed switch, so you can match airflow and noise to each job. The low-flammable polypropylene housing, ball bearing motor and IPX4 rating provide a durable solution for continuous residential and light commercial use. A 1.2M lead with 2 pin plug makes installation fast on site, while the removable motor block simplifies servicing without removing ductwork.

Use the Blauberg Turbo 100 as a duct-mounted bathroom exhaust fan, toilet exhaust fan or general inline fan wherever you need strong performance, low noise and flexible mounting in any orientation.

Efficient Airflow - Delivers up to 245 m³/h, ensuring optimal ventilation.

• Quiet Performance - Low noise operation with a sound pressure level of 32 dB(A) at 3m.
• Durable Construction - Casing made from low-flammable polypropylene for long-lasting reliability.
• Easy Maintenance - Special casing design allows quick disassembly of the impeller and motor block without removing the air duct.
• Versatile Installation - Can be mounted in any position for maximum flexibility.
• Dual-Speed Motor - Double-speed, single-phase AC motor with ball bearings for enhanced durability.
• Built-In Protection - Equipped with thermal overload protection for safe operation.
• User-Friendly Operation - Features a speed switch for easy airflow adjustment.
• Plug-and-Play Convenience - Comes with a cable and mains plug for simple setup.

The Blauberg Turbo Mixed-Flow AC Fan combines power, efficiency, and reliability, making it an excellent choice for ventilation systems requiring high performance and low noise levels.

• Connected air duct size (mm): 100
• Phases: 1
• Minimum supply voltage (V): 230
• Maximum supply voltage (V): 230
• Power supply frequency (Hz): 50/60
• Rated power (W): 23 / 25
• Unit current (A): 0.10 / 0.11
• Maximum airflow (m³/h): 180 / 245
• Sound pressure level LpA at 3 m (dB(A)): 27 / 32
• Weight (kg): 1.75
• Transported air temperature (max) (°C): 60
• Ingress protection rating: IPX4
• Ingress protection rating of the drive: IPX4

• [1] x Blauberg Turbo Mixed Flow Inline AC Exhaust Fan - 100MM (4" Inch) | 2 Speed
