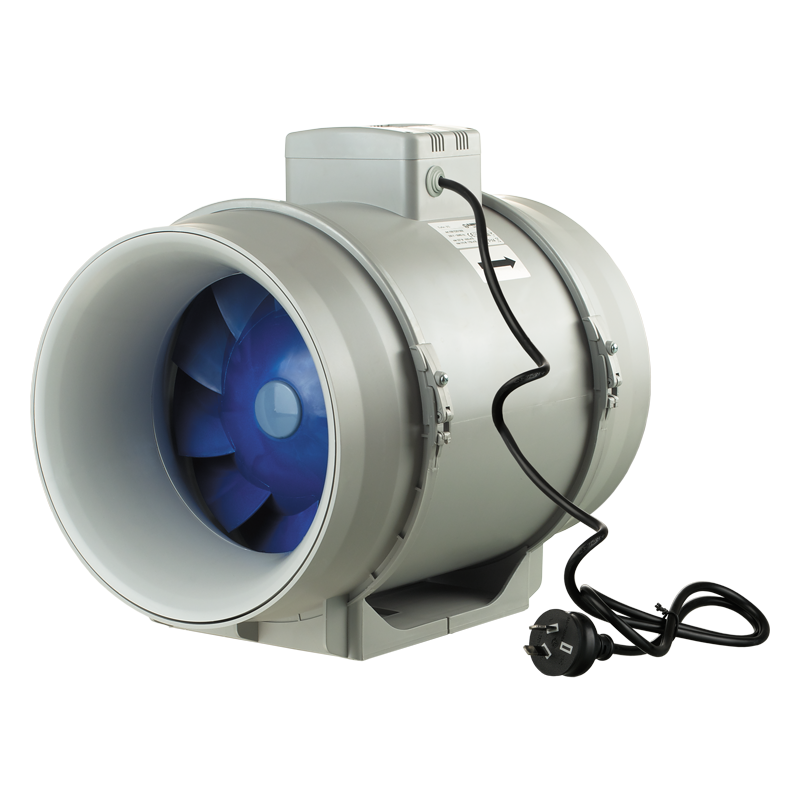

Blauberg Turbo Mixed Flow Inline AC Exhaust Fan - 315MM (12" Inch) | 2 Speed

The Blauberg Turbo Mixed Flow AC Fan 315MM is a high-capacity inline exhaust fan designed for long duct runs and large areas. Moving up to 2050 M3/H through a 315MM (12" Inch) duct, it suits big bathrooms, laundries, commercial amenities, workshops and plant rooms where serious extraction is required.

A 2-speed AC motor and mixed flow impeller provide strong pressure with controlled noise, so you can select low speed for quieter operation or high speed when maximum airflow is needed. The low-flammable plastic housing, ball bearing motor, IPX4 rating and manual reset thermal overload protection make it a robust choice for continuous duty on Australian 230V supplies.

Supplied with a 1.2M lead, 2-pin plug and external two-speed switching, the Turbo 315 installs quickly and mounts in any orientation in ceiling spaces or inline ductwork. The removable motor block allows servicing without dismantling the duct system, saving time for tradies, builders and ventilation maintenance contractors. Add this Blauberg Turbo 315 inline fan to your cart for your next high airflow job.

Efficient Airflow - Delivers up to 2050 m³/h, ensuring optimal ventilation.

• Quiet Performance - Low noise operation with a sound pressure level of 52 dB(A) at 3m.
• Durable Construction - Casing made from low-flammable polypropylene for long-lasting reliability.
• Easy Maintenance - Special casing design allows quick disassembly of the impeller and motor block without removing the air duct.
• Versatile Installation - Can be mounted in any position for maximum flexibility.
• Dual-Speed Motor -Double-speed, single-phase AC motor with ball bearings for enhanced durability.
• Built-In Protection - Equipped with thermal overload protection for safe operation.
• User-Friendly Operation - Features a speed switch for easy airflow adjustment.
• Plug-and-Play Convenience - Comes with a cable and mains plug for simple setup.

The Blauberg Turbo Mixed-Flow AC Fan combines power, efficiency, and reliability, making it an excellent choice for ventilation systems requiring high performance and low noise levels.

• Connected air duct size: 315 mm
• Phases: 1
• Minimum supply voltage: 230 V
• Maximum supply voltage: 230 V
• Power supply frequency: 50/60 Hz
• Rated power: 230 / 320 W
• Unit current: 1.42 / 1.0 A
• Maximum airflow: 1570 / 2050 m³/h
• Sound pressure level LpA at 3 m: 41 / 52 dB(A)
• Weight: 11.95 kg
• Transported air temperature (max): 60 °C
• Ingress protection rating: IPX4
• Ingress protection rating of the drive: IPX4

• [1] x Blauberg Turbo Mixed Flow Inline AC Exhaust Fan - 315MM (12" Inch) | 2 Speed
