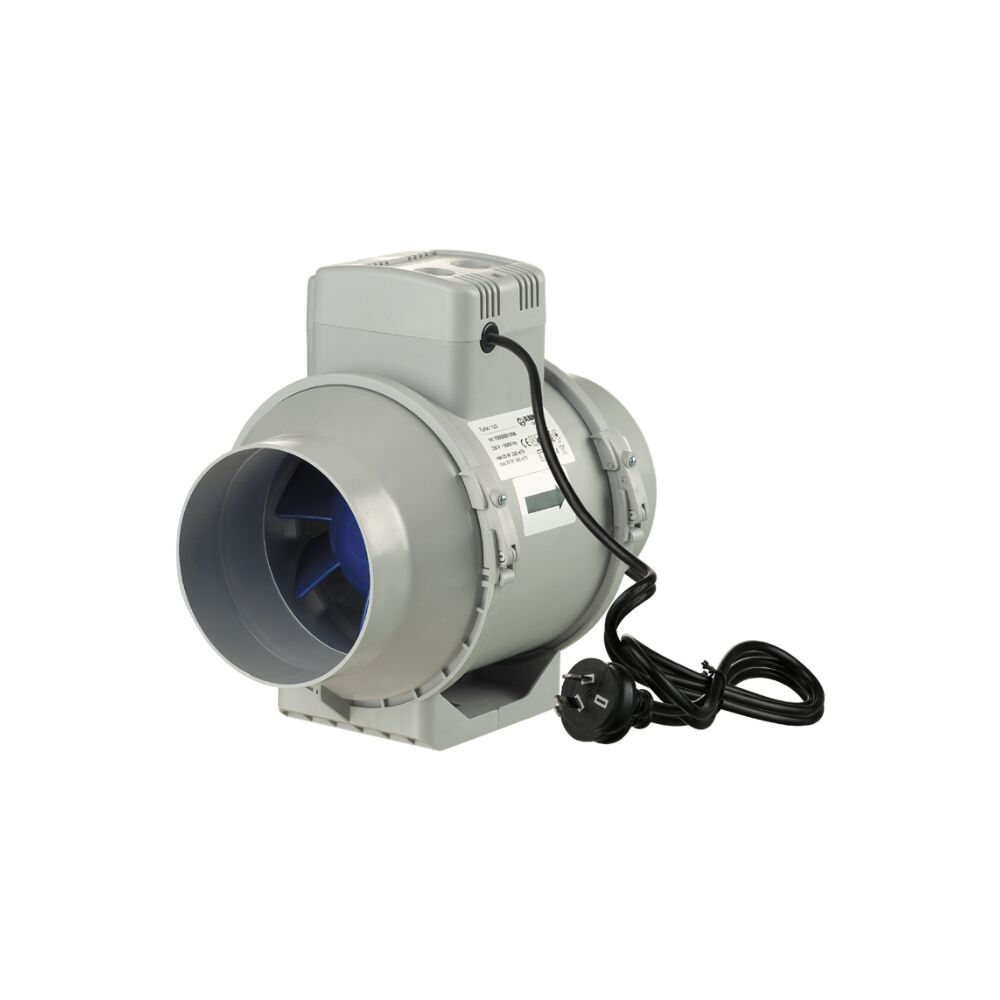

Blauberg Turbo Mixed Flow Inline AC Exhaust Fan - 125MM (5" Inch) | 2 Speed

The Blauberg Turbo 125 Mixed Flow Inline Exhaust Fan is a compact and powerful ventilation solution designed for 125MM (5" Inch) round duct systems. Combining the airflow characteristics of axial and centrifugal fans, this mixed flow inline fan provides strong air movement and pressure performance while maintaining relatively quiet operation.

Ideal for bathroom ventilation, kitchen ventilation, laundries, toilets, ensuites, offices, apartments, hotels and commercial buildings, the Turbo 125 is particularly suited to ducted ventilation systems where reliable airflow and pressure are required. Its compact construction also makes it suitable for installations in restricted spaces, including behind false ceilings.

The fan features a durable low flammable polypropylene casing and a 2 speed single phase motor with ball bearings and thermal overheating protection. The Turbo 125 provides airflow of up to 345 M3/H, allowing users to select between minimum and maximum operating speeds according to ventilation requirements.

A practical casing design allows the impeller and motor assembly to be removed for servicing without dismantling the connected ductwork. The fan can be installed at different points throughout a ventilation system and supports wall or ceiling mounting with a mounting plate.

Choose the Blauberg Turbo 125 inline exhaust fan for a compact, versatile and high performance solution for residential and commercial ducted ventilation. Order online from Vent Experts for quality ventilation equipment and Australia wide delivery.

• Mixed Flow Design: Delivers a combination of strong airflow and pressure performance for ducted ventilation systems.
• 2 Speed Operation: Minimum and maximum operating speeds provide flexibility for different ventilation requirements.
• High Airflow: Delivers 230 M³/H at minimum speed and up to 345 M³/H at maximum speed.
• 125MM Duct Connection: Designed for 125MM (5" Inch) round ventilation ducting.
• Quiet Performance: Sound pressure level of 29dB(A) at minimum speed and 34dB(A) at maximum speed, measured at 3 metres.
• Compact Installation: Suitable for confined installation spaces, including areas behind false ceilings.
• Flexible Mounting: Suitable for wall or ceiling mounting with a mounting plate.
• Service Friendly Design: Impeller and motor assembly can be removed for servicing without dismantling the connected air duct.
• Durable Housing: Manufactured from low flammable polypropylene.
• Ball Bearing Motor: Two speed single phase motor with thermal overheating protection.
• IPX4 Rated: Fan and motor are rated IPX4.
• Versatile Applications: Suitable for bathrooms, toilets, laundries, kitchens, ensuites, offices, apartments, hotels, homes and commercial ventilation applications.

• [1] x Blauberg Turbo Mixed Flow Inline AC Exhaust Fan - 125MM (5" Inch) | 2 Speed
