Dantherm MVHR - HCH 5 | Residential Ventilation Unit
Horizontal heat recovery unit for homes up to 475m²
Dantherm MVHR - HCH 5 | Residential Ventilation Unit
Product Overview
Description
Description

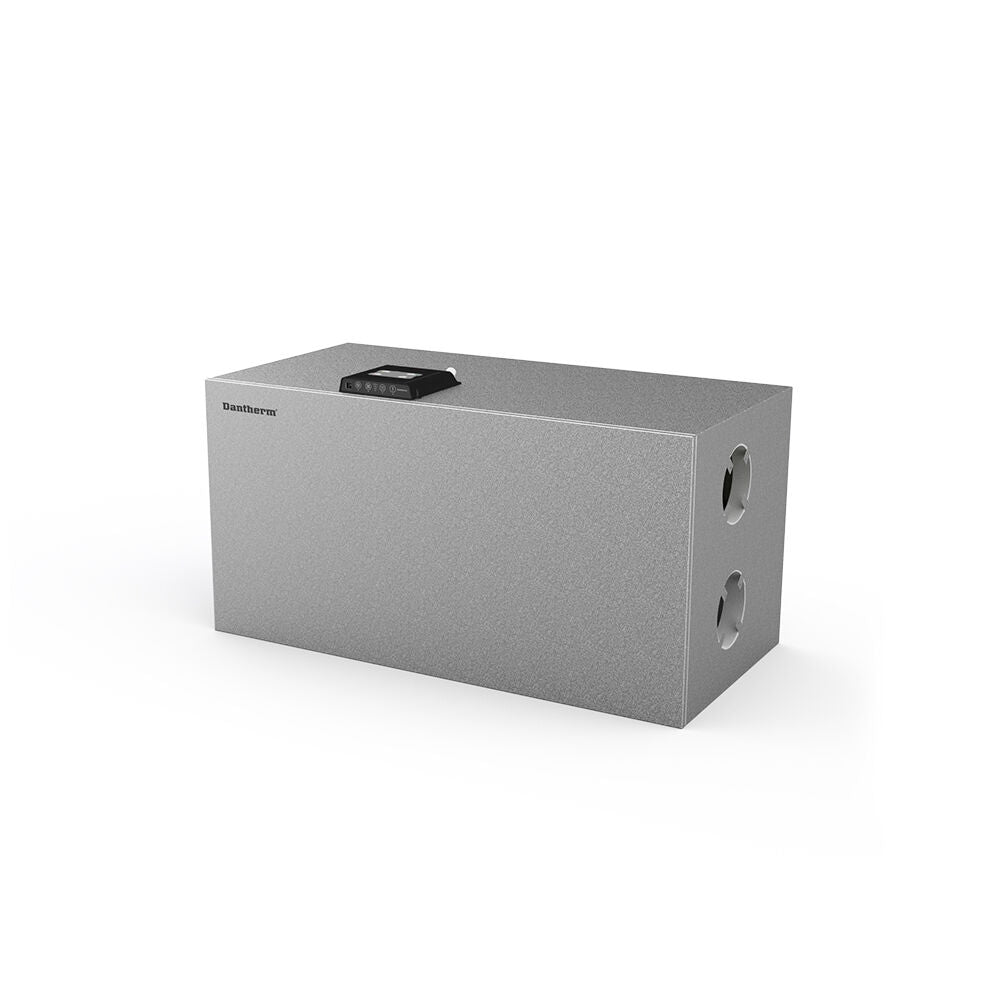

The Dantherm HCH 5 is a high-performance horizontal residential ventilation unit specifically designed for 12 family homes or dwellings up to approximately 475m2, depending on installation parameters. Designed for attic or plant room floor installation, this energy-efficient system delivers demand-controlled fresh air with high-efficiency counter-flow heat recoveryensuring low energy use and optimal indoor air quality.
The HCH 5 comes packaged with an integrated humidity sensor for demand-based ventilation, EC fan motors with low SPI values, and pressure pipes for accurate airflow calibration. Its built for easy installation and reliable operation even in uninsulated attic environments, making it ideal for Australian homes facing variable climate conditions.
With a robust galvanised steel cabinet, 94% thermal efficiency, and full bypass functionality, the HCH 5 strikes the perfect balance between performance, durability, and quiet operation.
Features

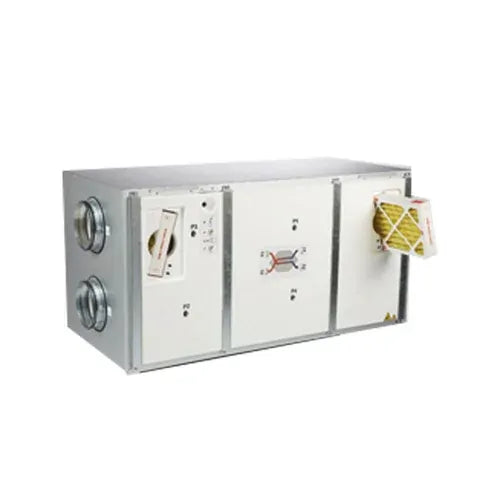

- High-Efficiency Heat Recovery: Counter-flow heat exchanger delivers up to 94% efficiency for superior energy savings.
- Demand-Controlled Ventilation: Integrated humidity sensor adjusts airflow to meet indoor needs.

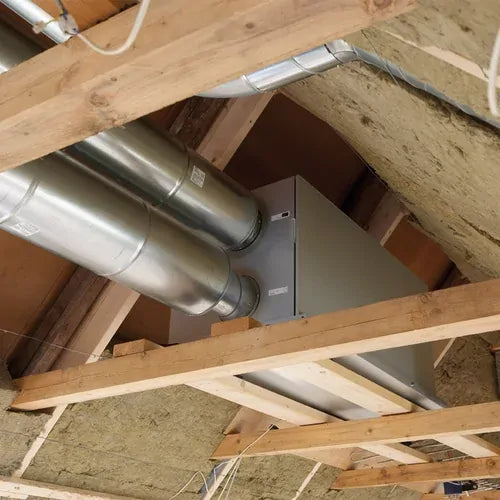

- Optimised for Attics: Can be installed in uninsulated lofts, perfect for space-saving installations.
- Low Energy EC Fans: Extremely low Specific Fan Power (SPI), ideal for sustainable home design.
- Full Bypass Mode: Enables fresh air ventilation without heat exchange when required.
- Quiet & Durable: Low-noise operation and galvanised cabinet with 40mm polystyrene insulation.

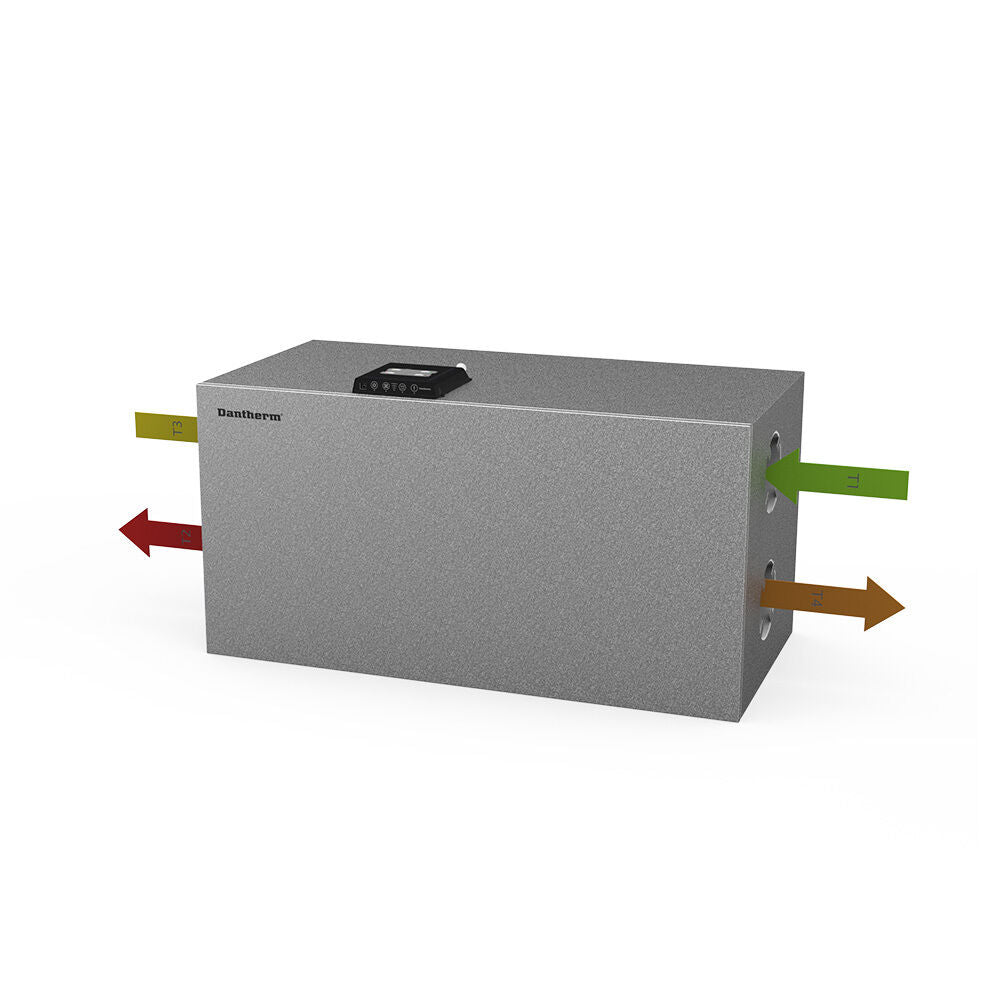

- Flexible Duct Connection: All duct connections are placed at unit ends for horizontal layout.
- Certified Performance: Built to EN 13141-7 and EN 779/ISO16890 filter standards with fire classification ratings.
Features
Features
Specifications
Specifications
| Dantherm HCH 5 | |
|---|---|
| Maximum Airflow @ 100Pa | 350 m³/h |
| Declared Airflow @ 100Pa | 300 m³/h |
| Reference Airflow (EN 13141-7) | 210 m³/h |
| Thermal Efficiency | Up to 94% |
| Bypass | Yes |

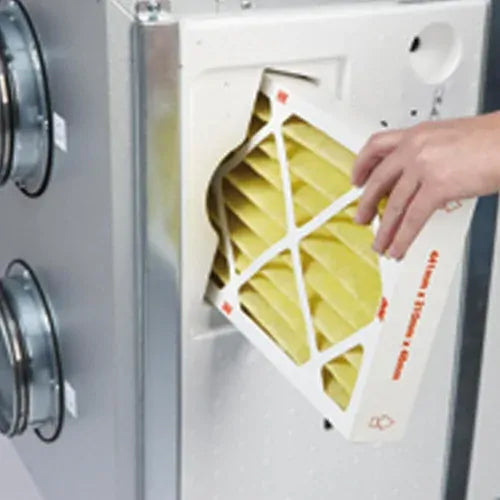

| Filter Class (EN779 / ISO16890) | G4 / ISO Coarse 75% (Optional F7 / ePM1>50%) |
| Operational Temp. Range (No Preheat) | -13°C to +50°C |
| Operational Temp. Range (With Preheat) | -20°C to +50°C |
| Installation Temperature Range | -12°C to +50°C |
| Duct Connection | Ø160 mm |
| Cabinet Dimensions (W x H x D) | 1180 x 600 x 580 mm |
| Cabinet Material | Galvanised metal |
| Insulation | 40 mm Polystyrene |
| Cabinet Insulation Factor | 0.78 W/m²K |
| Protection Class | IP20 |
| Supply Voltage | 1 x 230V |
| Frequency | 50 Hz |
| Max Power Consumption (No/With Preheater) | 154 W / 1554 W |
| Weight (Net / Packaged) | 52 kg / 66 kg |
What's in the box
What's in the box
[1] x Dantherm MVHR - HCH 5 | Residential Ventilation Unit
