Ergovent Kvadro 100 - 100MM (4" Inch) | White Square Frameless Diffuser

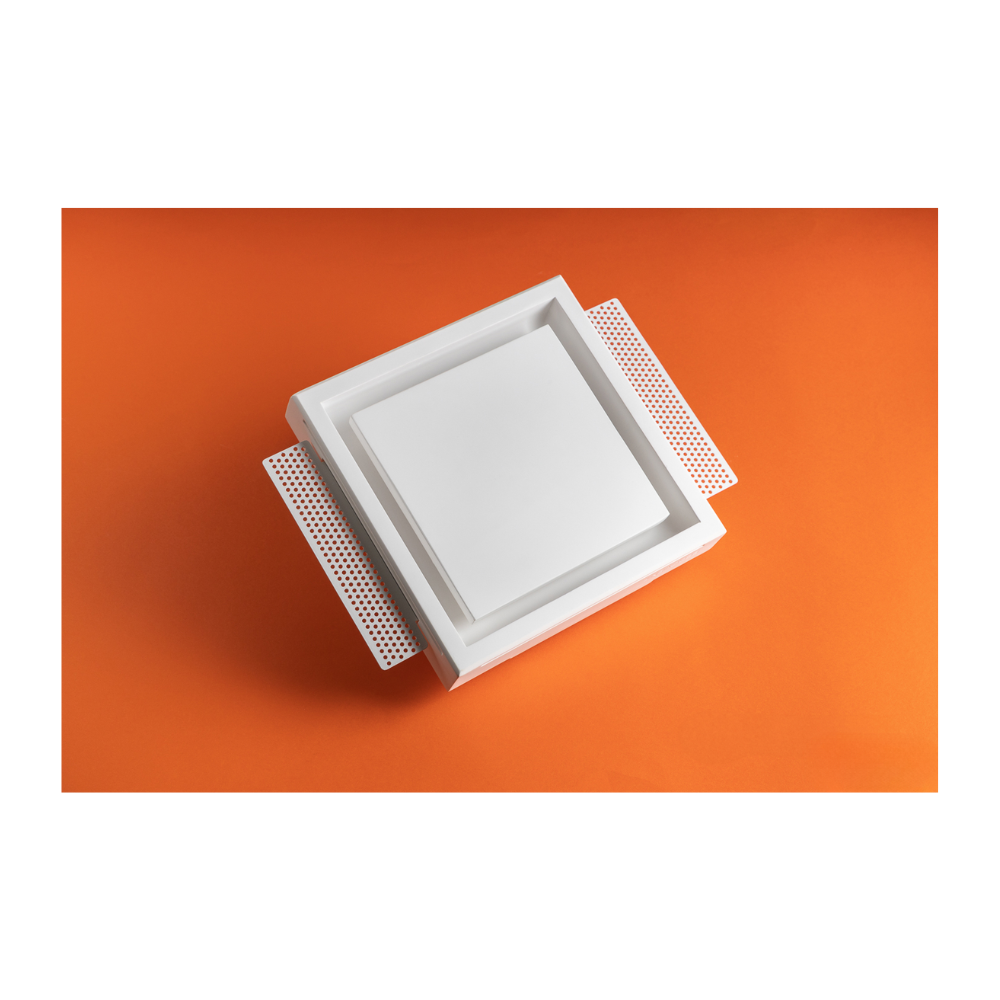

The Ergovent Kvadro 100 is a 100MM square frameless ceiling diffuser designed to disappear into plasterboard ceilings and walls while still delivering reliable airflow. The pure gypsum, paintable face can be finished with the same coating as the ceiling, giving architects, builders and tradies a truly minimalist ceiling vent that suits modern Australian interiors.

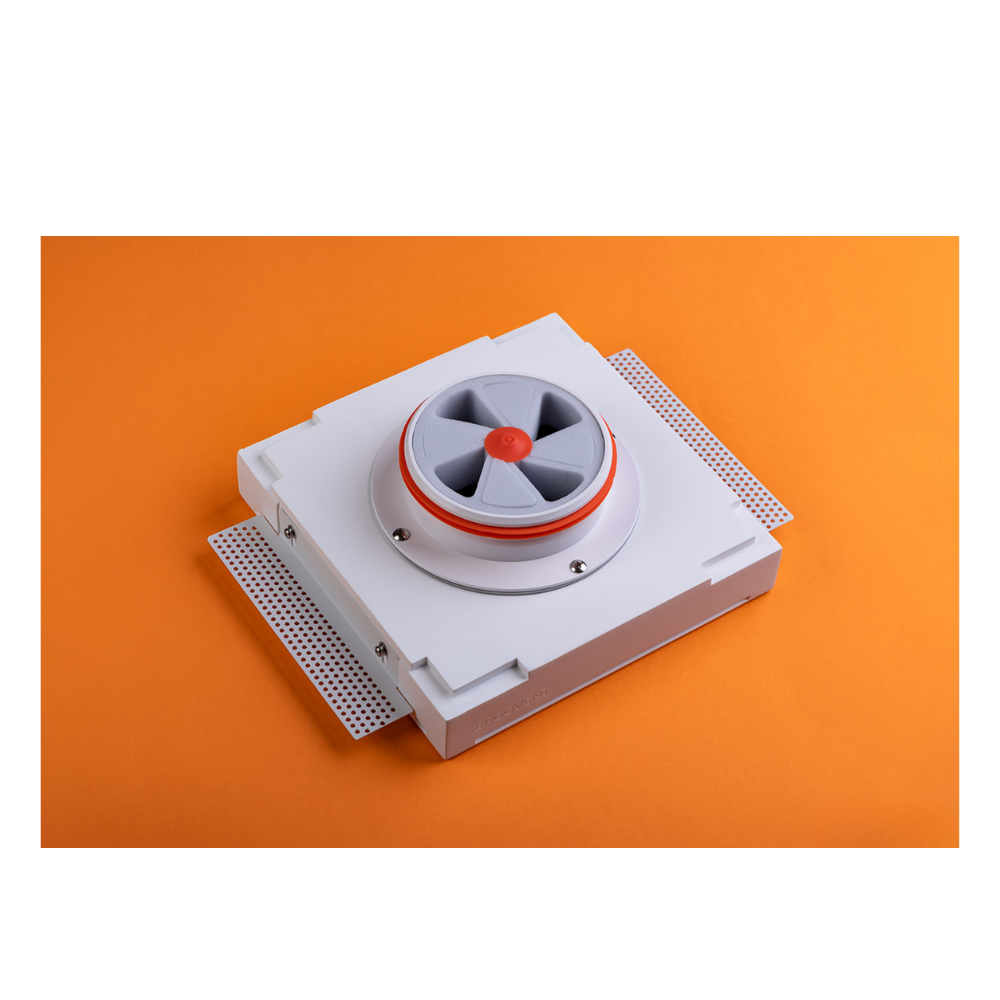

With a 100MM round frame pipe and 240MM x 240MM body, it connects easily to standard rigid or flexible ductwork or plenum boxes on supply or exhaust branches. A built in balancing damper with PU segments lets installers fine tune airflow on site, supporting up to 92 M3/H per diffuser without visible regulators. The anti static gypsum body and optimised outlet profile help reduce dirt rings around the grille and support quieter operation.

Ideal for residential and light commercial projects, this flush mounted gypsum ceiling diffuser is a smart upgrade for new builds, renovations and ventilation maintenance work across Australia.

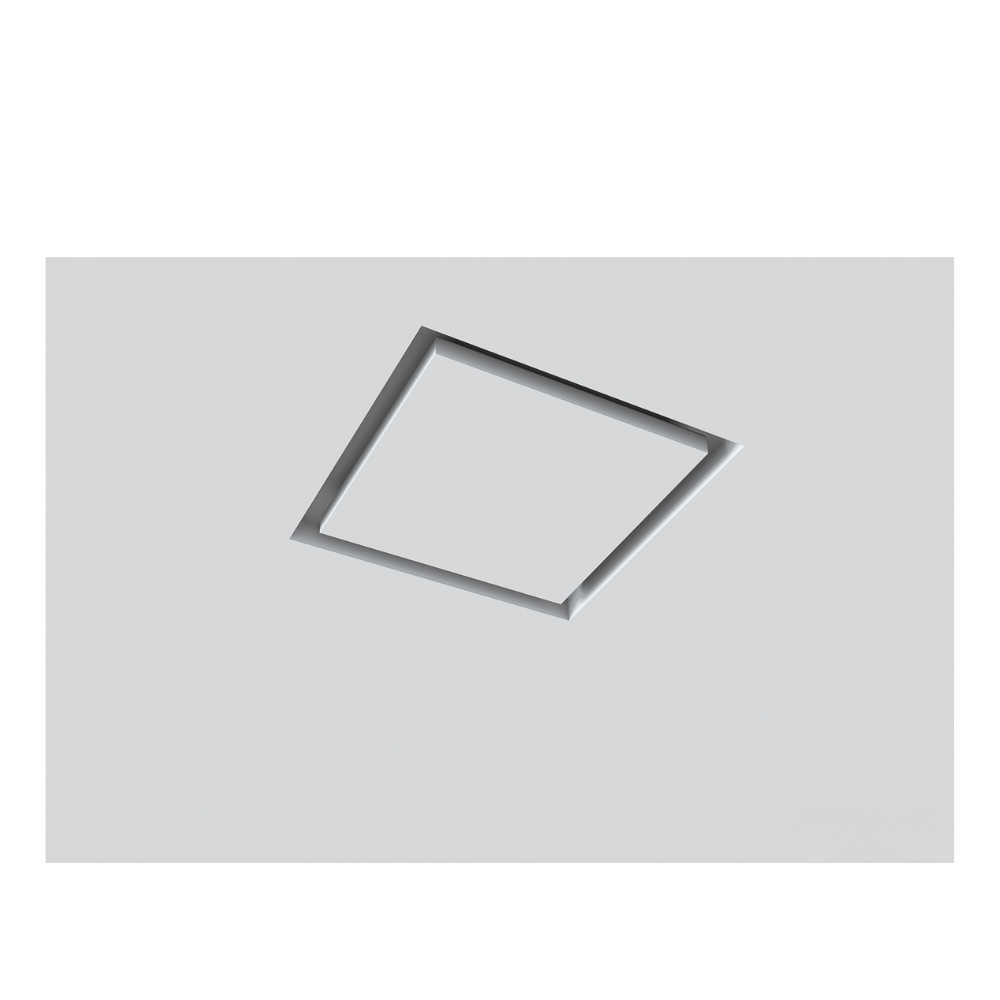

• Frameless gypsum design - Paintable square face for a seamless ceiling or wall finish.
• 100MM duct connection - Round frame pipe suits standard 100MM (4" Inch) duct and plenum boxes.
• Universal supply and exhaust use - One diffuser for both supply and return air terminals.
• Built in balancing damper - PU segments allow simple on site airflow adjustment.
• Magnetic cover fixing - Strong magnetic holders for secure fit and easy access for cleaning.
• Plasterboard friendly - Suitable for single or double layer plasterboard and custom thicknesses.

• Brand: Ergovent
• Model: Kvadro 100
• Product Type: Square frameless gypsum ceiling diffuser

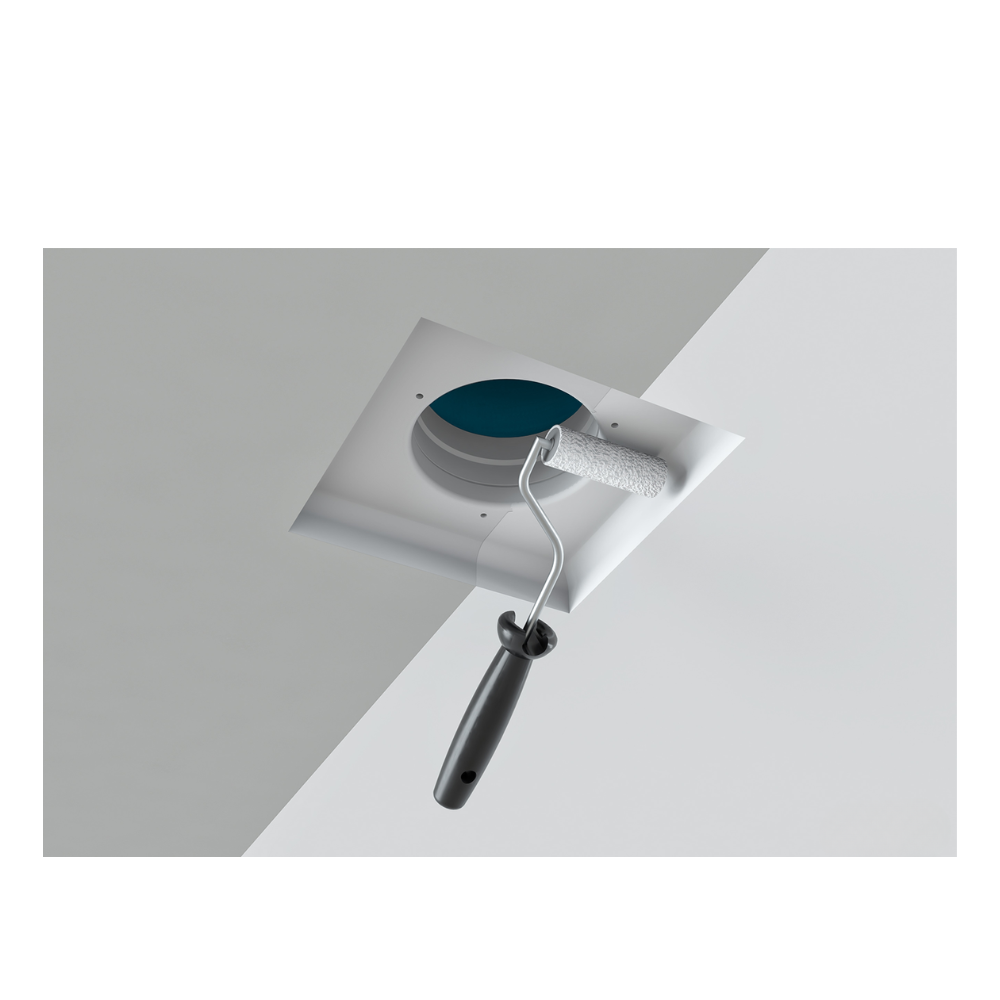

• Colour: White, fully paintable on site
• Material: Pure high quality, anti static gypsum

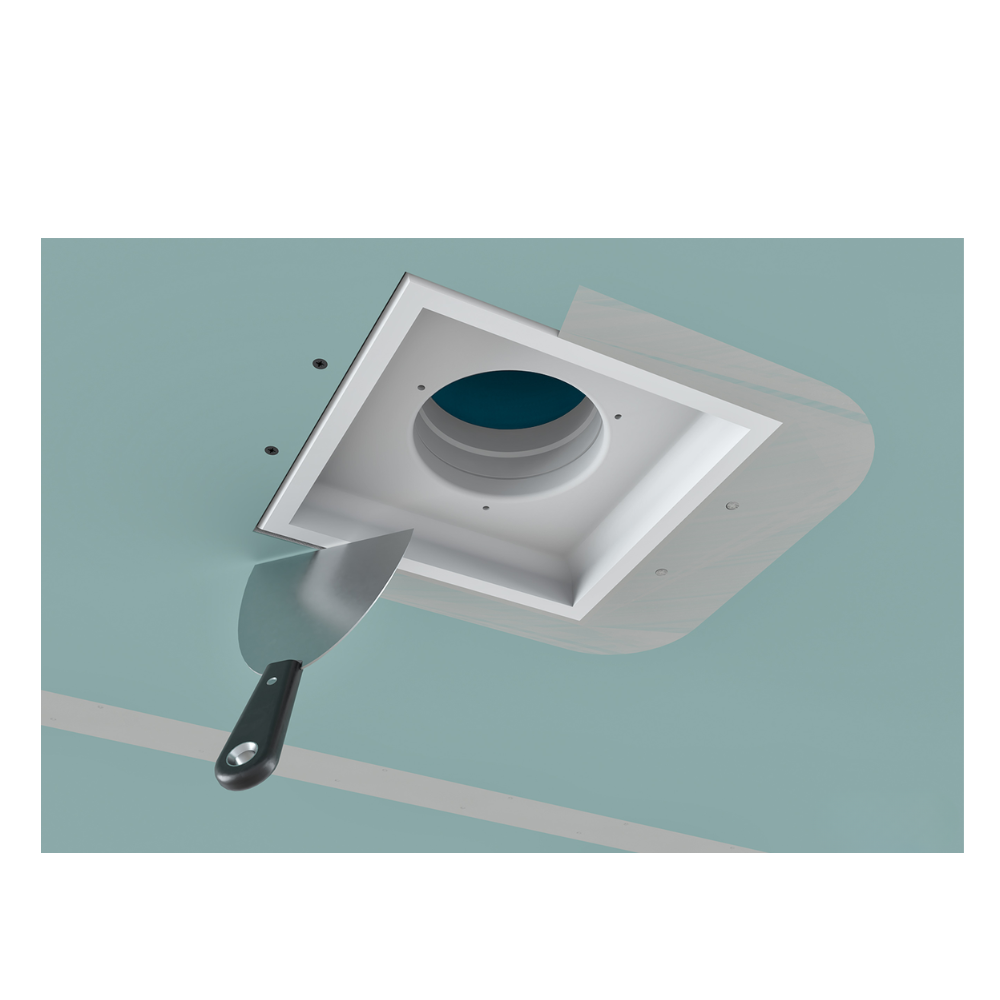

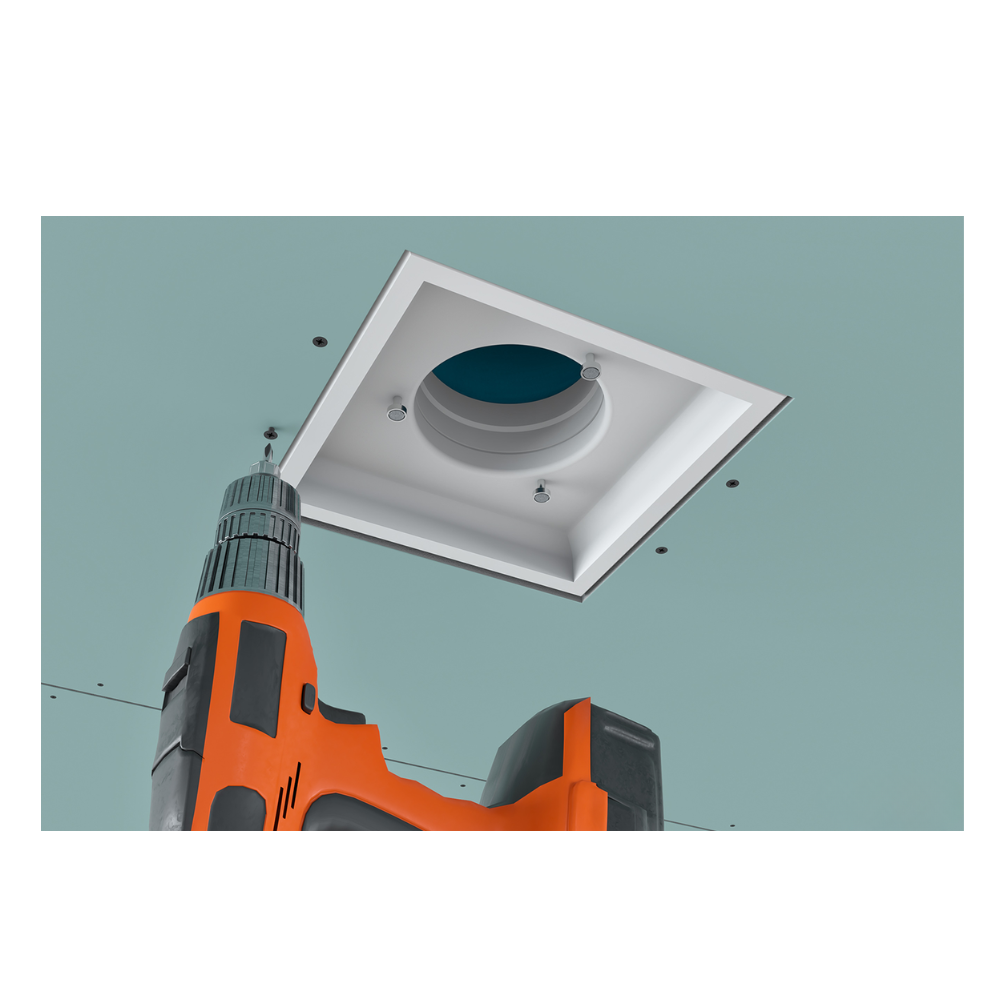

• Mounting: Flush plastered into plasterboard ceiling or wall
• Duct Connection Size: 100MM (4" Inch) round frame pipe

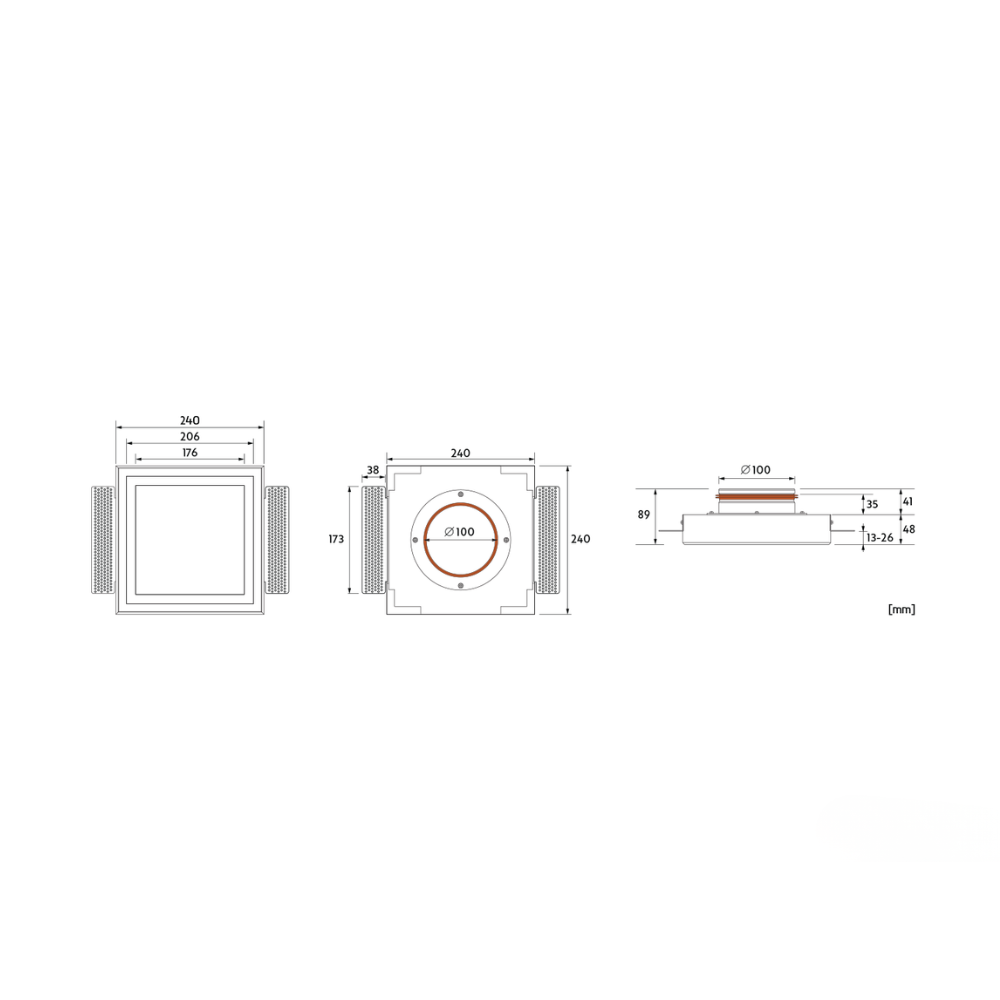

• Body Dimensions: 240MM x 240MM (24CM x 24CM)
• Body Height: 48MM (4.8CM)
• Overall Height With Connector: 89MM (8.9CM)
• Maximum Airflow: Up to 92 M³/H per diffuser (installation dependent)
• Air Application: Supply and exhaust air
• Duct Systems: Compatible with steel or plastic ductwork and plenum boxes

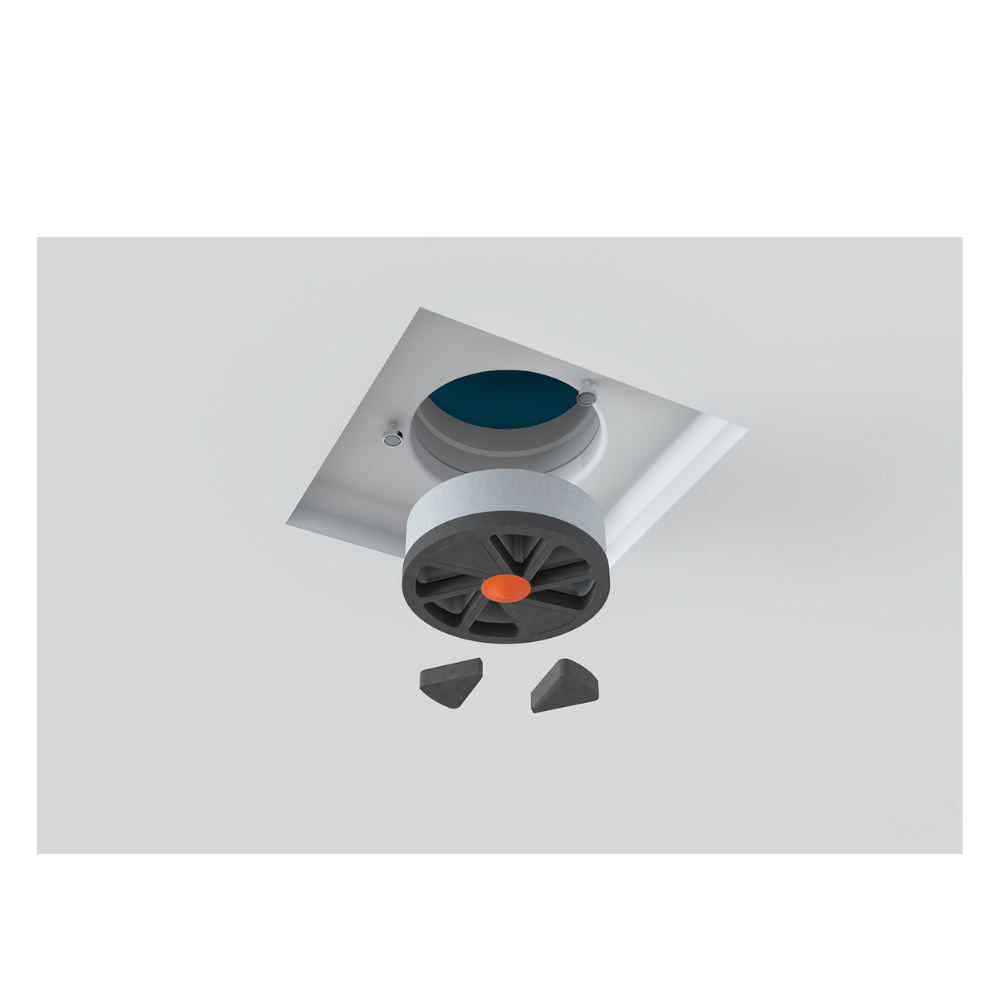

• Balancing Damper: Integrated PU segment damper for precise airflow control
• Compatible Ceiling Types: Single and double layer plasterboard and custom thickness ceilings

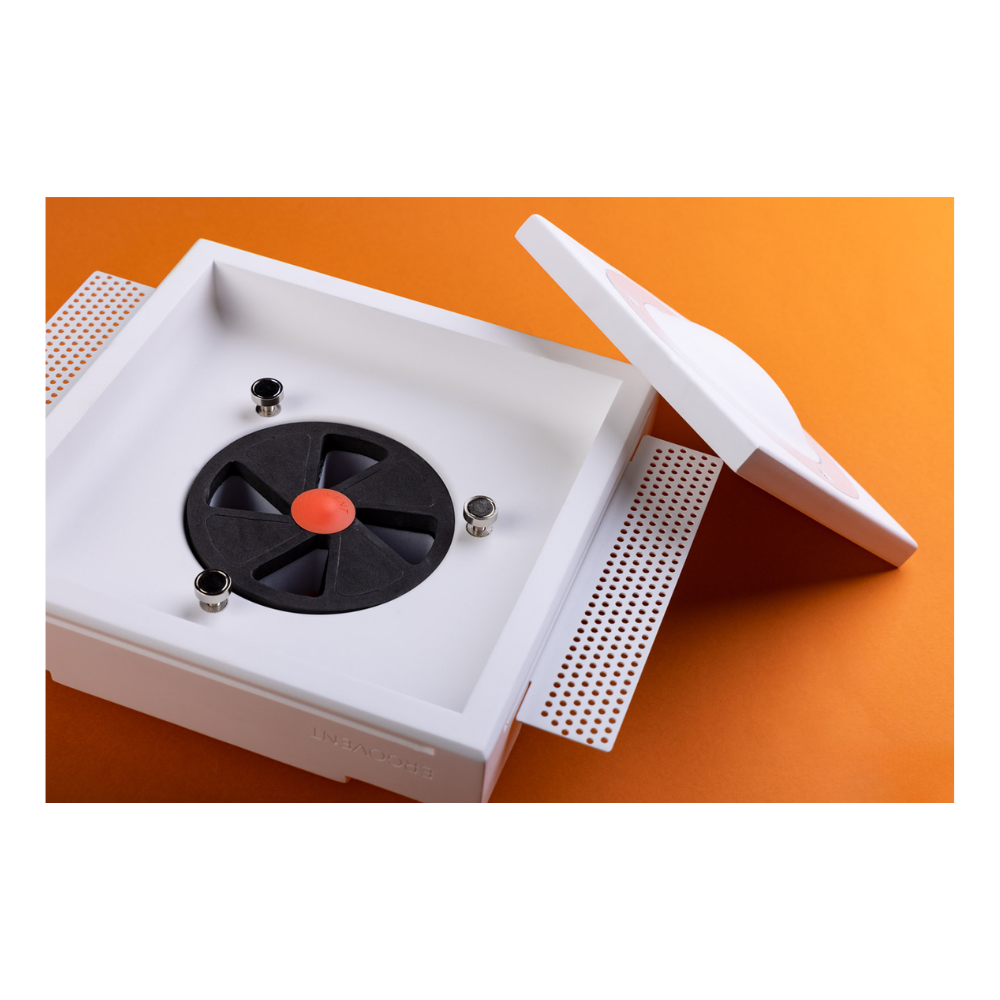

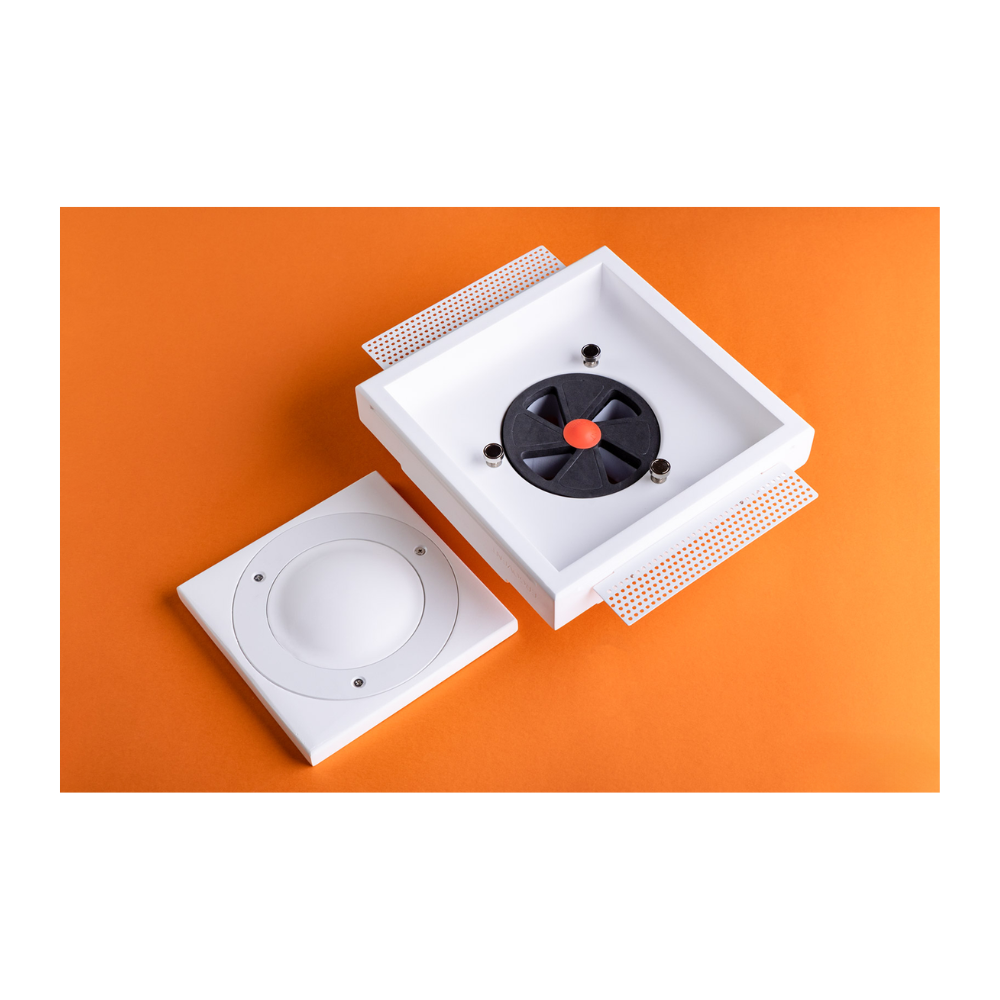

• Cover Attachment: Magnetic holders for secure fixing and easy access

• [1] x Ergovent Kvadro 100 - 100MM (4" Inch) | White | Square | Frameless Diffuser
