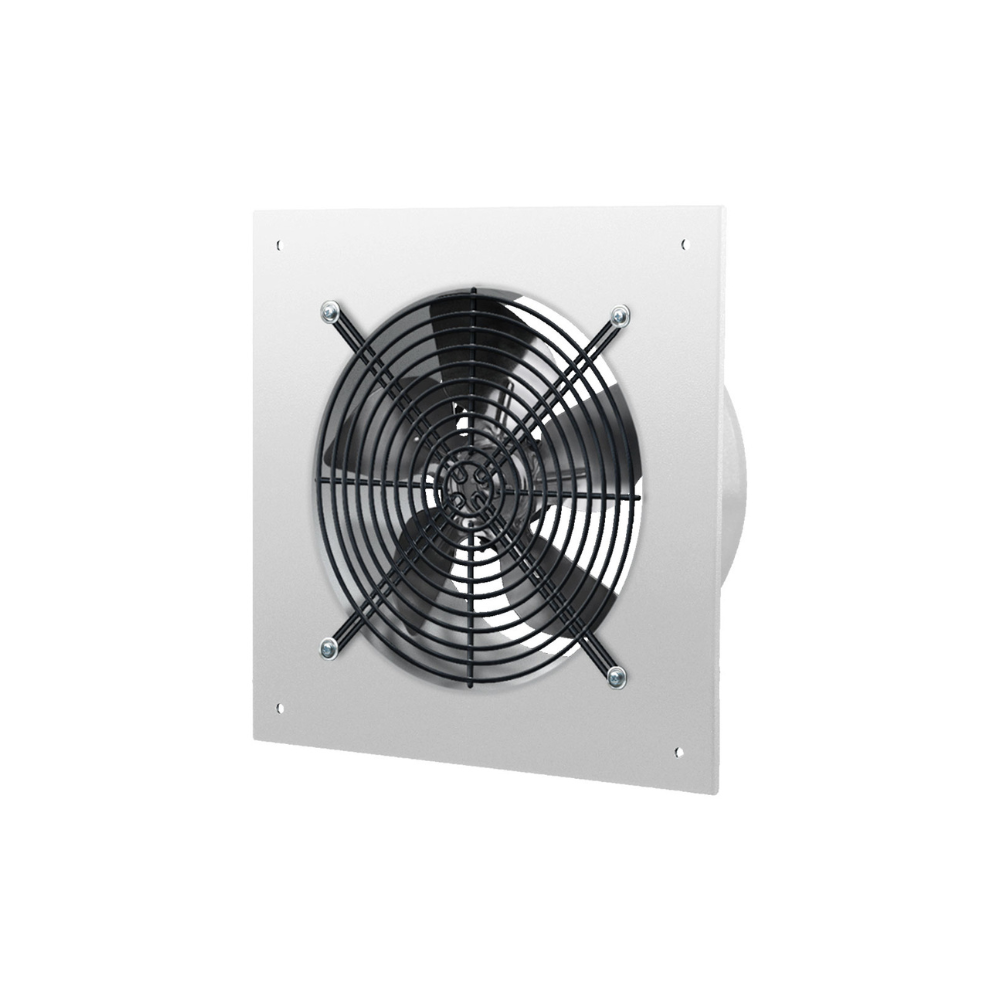

Fanco Commercial Exhaust Fan OV1 - 250MM (10" Inch) | Wall & Ceiling Mount
Air Flow 1070 M³/H | Power Consumption 68W | IPX4
Fanco Commercial Exhaust Fan OV1 - 250MM (10" Inch) | Wall &am...
Product Overview
| Model Number | OV1 250 Commercial Exhaust Fan |
| Airflow (M³/H) | 1070 |
| Duct Flange Size | 250MM (10" Inch) |
| Hole Size | 262MM Diameter |
| Motor Type | AC |
| Exhaust Fan Power (W) | 68 |
| Noise Level | 48 dBA |
| IP Rating | IPX4 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Backdraft Damper | No |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | No |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Fanco - 2 Years Replacement Warranty |
Description
Description
The Fanco OV1 250 commercial exhaust fan is a robust axial unit designed for high usage domestic and commercial ventilation in workshops, warehouses, cafes and plant rooms. Delivering up to 1070 M3/H of airflow through a 250MM (10" Inch) duct, it is ideal where strong, reliable extraction is required.
This model features a durable steel housing with polymer coating and a sealed ball bearing motor engineered for continuous operation, perfect for Aussie tradies, builders and facility managers who need dependable performance. The fan can be wall or ceiling mounted and is suitable for connection to short duct runs to exhaust air outdoors. With a modest 68W power consumption and IPX4 moisture protection, the Fanco OV1 250 offers a practical balance of efficiency, longevity and ease of installation in demanding Australian conditions.
Pair this commercial exhaust fan with a compatible speed controller for finer control of extraction where required.
Features
Features
- High airflow performance 1070 M³/H extraction for commercial and high usage domestic spaces.
- Efficient 68W motor single phase ball bearing motor designed for continuous operation.
- Heavy duty construction metal casing with protective polymer coating for demanding environments.
- Flexible mounting suitable for internal wall or ceiling mounting with rear discharge.
- Ductable design can be connected to short duct runs to exhaust air outside.
- IPX4 protection suitable for use in areas with moisture and general commercial conditions.
- Speed control ready compatible with a separate controller for adjustable airflow (sold separately).
Specifications
Specifications
- Brand: Fanco
- Model: OV1 250 Commercial Exhaust Fan
- Fan Type: Axial commercial exhaust fan
- Application: High usage domestic and commercial ventilation
- Air Flow: 1070 M³/H
- Power Consumption: 68W
- Voltage: 230V AC
- Current: 0.48A
- Noise Level: 48 dB(A) at rated flow
- IP Rating: IPX4
- Duct Flange Size: 250MM (10" Inch)
- Wall or Ceiling Cutout: 262MM diameter
- Face Size: 370MM (B) x 320MM (B1)
- Fan Depth: 140MM (L)
- Housing Material: Steel casing with polymeric coating
- Impeller Type: Axial aluminium impeller
- Motor Type: Single phase ball bearing motor with thermal overload protection
- Mounting: Internal wall or ceiling mounting only
- Ducting: Suitable for short duct runs only
- Max Air Temperature: 40°C
- Operating Temperature Range: +1°C to +40°C, up to 80 percent relative humidity
What's in the box
What's in the box
- [1] x Fanco Commercial Exhaust Fan OV1 - 250MM (10" Inch)
