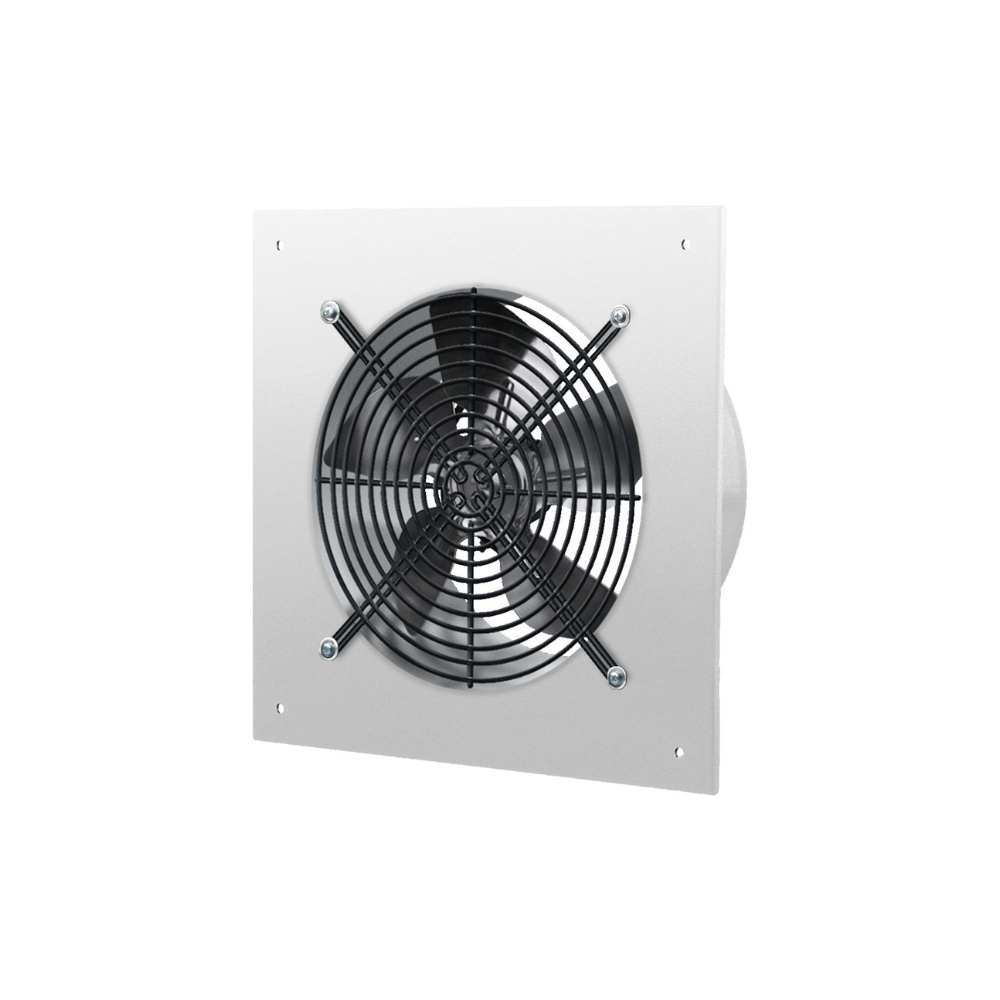

Fanco Commercial Exhaust Fan OV1 - 315MM (12" Inch) | Wall & Ceiling Mount
Air Flow 1700 M³/H | Power Consumption 110W | IPX4
Product Overview
| Model Number | OV1 315 Commercial Exhaust Fan |
| Airflow (M³/H) | 1700 |
| Duct Flange Size | 315MM (12" Inch) |
| Hole Size | 312MM Diameter |
| Motor Type | AC |
| Exhaust Fan Power (W) | 110 |
| Noise Level | 54 dBA |
| IP Rating | IPX4 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Backdraft Damper | No |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | No |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Fanco - 2 Years Replacement Warranty |
Description
Description
The Fanco OV1 315 commercial exhaust fan is a heavy duty axial unit designed for high usage domestic and commercial ventilation in warehouses, workshops, kitchens and plant rooms. With up to 1700 M3/H of extraction through a 315MM (12" Inch) opening, it is ideal where strong, reliable airflow is required.
This model features a robust metal housing with polymer coating and a sealed ball bearing motor engineered for continuous operation, giving tradies, builders and maintenance teams confidence on demanding jobs. The fan can be wall or ceiling mounted and connected to short duct runs for direct discharge outdoors. With modest 110W power consumption and IPX4 moisture protection, the Fanco OV1 315 offers an excellent balance of performance, efficiency and durability for Australian conditions.
Choose this 315mm commercial exhaust fan when you need reliable high airflow extraction on site, and add it to your cart today.
Features
Features
- High capacity airflow 1700 M³/H extraction suited to larger commercial and high usage domestic spaces.
- Durable construction steel casing with protective polymer coating for tough site environments.
- Continuous rated motor sealed ball bearing motor designed for long running commercial duty.
- Wall and ceiling mount flexible mounting options for internal wall or ceiling installations.
- Ductable design connects to short duct runs to exhaust air directly outside.
- Moisture protection IPX4 rated motor suitable for general wet area and commercial applications.
- Speed control compatible can be used with a separate speed controller for adjustable airflow (sold separately).
Specifications
Specifications
- Brand: Fanco
- Model: OV1 315 Commercial Exhaust Fan
- Fan Type: Axial commercial exhaust fan
- Application: High usage domestic and commercial ventilation
- Air Flow: 1700 M³/H
- Power Consumption: 110W
- Voltage: 230V AC
- Current: 0.75A
- Noise Level: 54 dB(A)
- IP Rating: IPX4
- Duct Flange Size: 315MM (12" Inch)
- Wall or Ceiling Cutout: 312MM diameter
- Face Size: 430MM (B) x 380MM (B1)
- Fan Depth: 170MM (L)
- Housing Material: Steel casing with polymeric coating
- Impeller Type: Axial aluminium impeller
- Motor Type: Single phase ball bearing motor with thermal overload protection
- Mounting: Internal wall or ceiling mounting
- Ducting: Suitable for short duct runs
- Operating Temperature Range: +1°C to +40°C
What's in the box
What's in the box
- [1] x Fanco Commercial Exhaust Fan OV1 - 315MM (12" Inch) | Wall & Ceiling Mount
