Fantech 1-Room Standard Heat Transfer Kit - 150MM Fantech Jetline In-line Fan | 750 M3/H

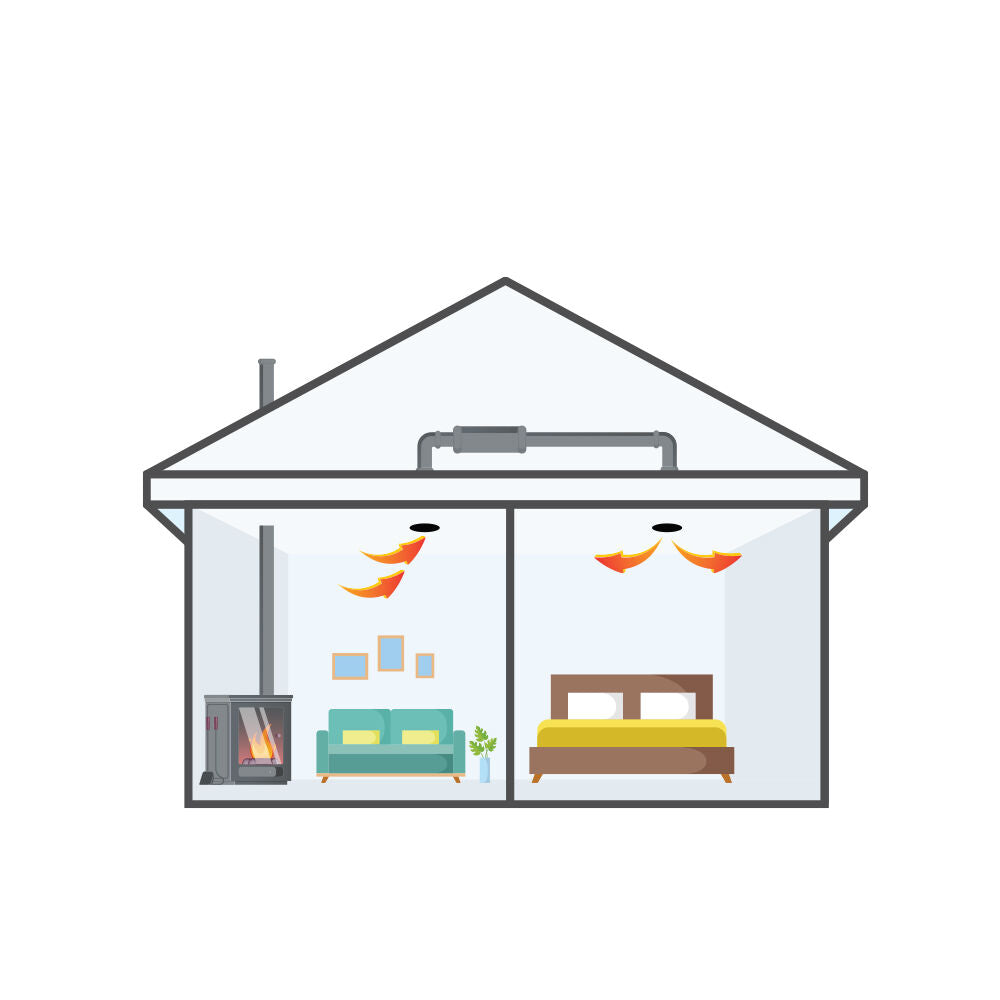

Transform your homes heating efficiency and comfort with the Fantech 1-Room Standard Heat Transfer Kit. This professional-grade kit takes the warmth from one room (for example, a living area with a fireplace or heater) and quietly distributes it to another room, ensuring no space is left chilly. Designed for both DIY homeowners and professional installers, the kit blends technical precision with user-friendly assembly. The result is an evenly heated living space, energy savings through efficient heat redistribution, and whisper-quiet operation that wont disturb your homes peace.

By recycling the warm air you already have, this heat transfer system reduces the need for extra heaters and lowers energy bills. Warm air naturally rises to the ceiling the Fantech kit captures that excess heat and moves it to where you need it most. Whether you want to warm up a bedroom using the heat from your lounge room or balance the temperature between any two areas, this one-room transfer kit delivers a cost-effective solution. All components are built to high-quality standards (galvanized steel, ABS plastic, stainless steel) for reliability and long life, so you can trust this kit to perform season after season.

Features & Benefits

• Energy-Efficient Heat Redistribution: Cut down on heating costs by reusing warm air. The inline fan draws heat from your hottest room and pushes it into a cooler room, reducing the load on your heaters and saving energy.
• Improved Room-to-Room Comfort: Enjoy a more balanced temperature throughout your home. No more one room being too hot while others are cold redistributed warm air means consistent comfort in both spaces.
• Quiet yet Powerful Operation: The included 150mm in-line exhaust fan (made in Europe) is engineered for silent performance. It features a silent-block motor mount that reduces vibration and noise, and the acoustic insulated duct further muffles sound. Youll feel the warmth, not hear the fan.

• High Build Quality & Durability: Every part of this kit is built to last. The fans housing is made of tough galvanized steel, and it comes with stainless steel duct clamps that wont rust. The adjustable ceiling grilles are crafted from high-quality ABS plastic that is scratch and chip resistant. The 50mm insulated ducting is tear-resistant and reinforced to prevent leaks, ensuring efficient airflow with minimal heat loss.
• Easy Installation (DIY-Friendly): Designed with both amateurs and pros in mind, the kit includes everything needed for a straightforward installation. The in-line fan comes with a handy mounting bracket and a pre-wired plug lead for quick setup no complex wiring for those with a power outlet available. Adjustable inlet/outlet grilles allow you to control airflow, and the supplied hanging strap and quick-fit clamps make securing the duct in your ceiling space simple. Clear instructions are provided, so you can confidently install the system and start feeling the benefits right away.

Technical Specifications

For those who need the details, below are key technical specs of the Fantech 1-Room Heat Transfer Kit components:

• Fantech Jetline In-line Exhaust Fan: 150mm diameter in-line fan, max airflow ~750 m3/hour (208 L/s). Power consumption 83 W. Quiet operation at ~46 dB(A) measured at 3m. 240V AC with standard plug (requires a switched power outlet). Rated IP44 for protection against dust and moisture.
• Ducting: 152mm (6) inner diameter, 6m length fully extended. 50mm thick polyester acoustic insulation (R1.0 thermal rating) around a flexible duct core. Outer jacket is a flame-retardant, aluminised vapour barrier to contain fibres and prevent tears. Operating temperature range: -100C to +800C.
• Ceiling Grilles: 150mm nominal diameter to fit the duct. Adjustable butterfly valve design to open/close airflow as needed. Material: ABS plastic (UV-stabilised white). Mounting springs/clips are included on each grille for a snug fit in a ceiling cutout.
• Duct Clamps: 150mm (adjustable range) stainless steel, worm-drive type. Provide air-tight clamping for duct-to-fan and duct-to-grille connections.
• Mounting Strap: 25mm width PVC-coated fabric strap, 50m roll. Cut to length as needed to hang the duct and fan. Multiple perforations for easy fastening to joists or beams.

Note: Ensure there is a power source available in the roof space (the fan includes a standard plug). If hard-wiring is required, a licensed electrician should carry out the installation for safety.

Ready for a Cozier Home?

The Fantech 1-Room Standard Heat Transfer Kit is an investment in comfort and efficiency. Imagine enjoying the warmth of your fireplace or heater spread throughout your home, without paying for extra electric heaters in every room. This kit makes that possible, and its designed so that anyone from a DIY home improver to a seasoned HVAC professional can achieve a clean and effective installation.

Dont let the heat youve paid for gather uselessly at the ceiling or in one spot. With this kit, you can redirect that warmth to where its needed, creating a more comfortable living environment and potentially lowering your energy usage. The combination of quality components and thoughtful design means youll get great performance with minimal maintenance.

Ready to upgrade your homes heating experience? Order the Fantech 1-Room Heat Transfer Kit today and start enjoying a cozier, more energy-efficient home. If you have any questions or need installation advice, our team is here to help but once you feel the difference this simple solution makes, youll wish you had installed it sooner. Take control of your homes comfort now with this all-in-one heat transfer system!

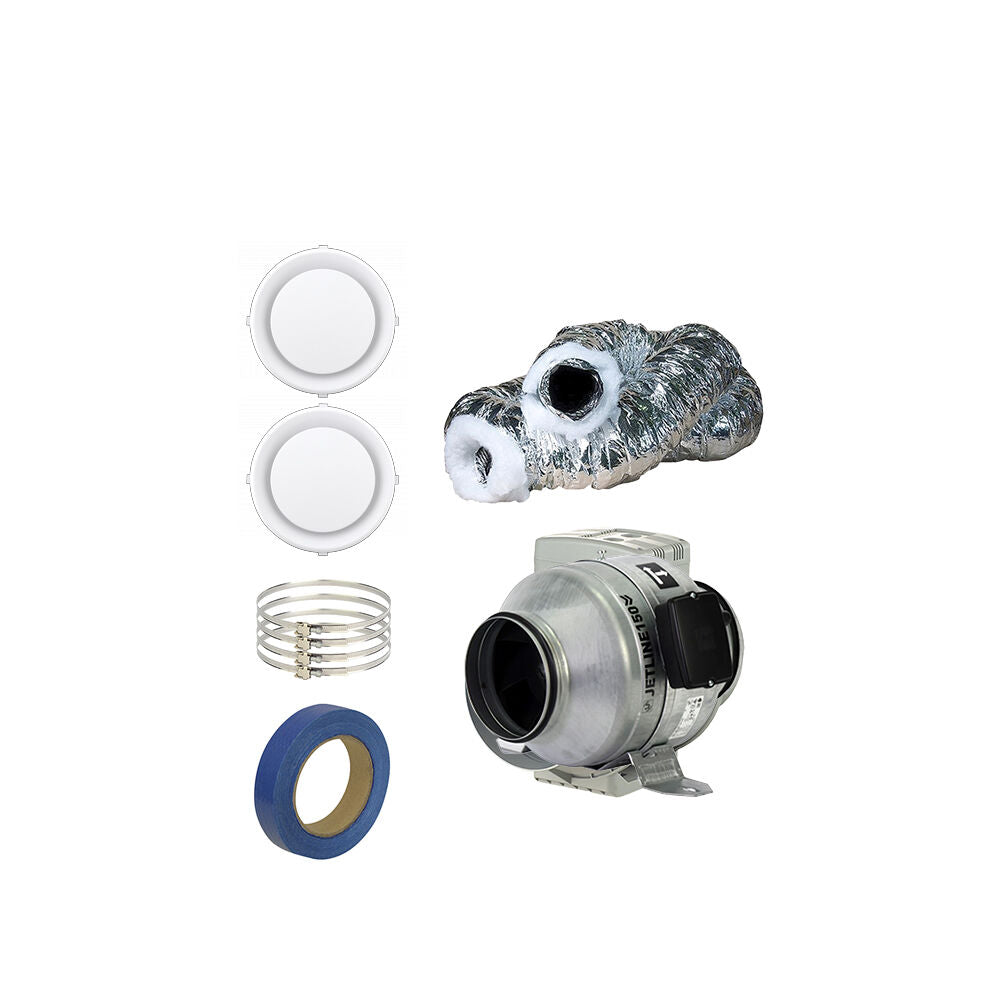

• [1] x Fantech Jetline In-line Duct Mounted Fan - 150MM (6" Inch) | 83W | 750 M3/H | IP44
• [2] x Fantech IALG Ceiling Mounted Inlet Internal Grille - White | Adjustable - [Flange Size: 150MM]
• [1] x Polyester Insulated Flexible Acoustic Duct - 152MM (6" Inch) x 6M | R1.0 | 50MM Insulation
• [1] x Duct Hanging Strap Tape - 25MM x 50M | Blue
• [4] x Quick Fit Stainless Steel Duct Clamp for Rigid & Flexi Ducting - 152MM (6" Inch)

• Specification Sheet - Click Here
