Fantech 2-Room Silent Heat Transfer Kit - 200MM Fantech TD Silent In-Line Fan | 900 M3/H

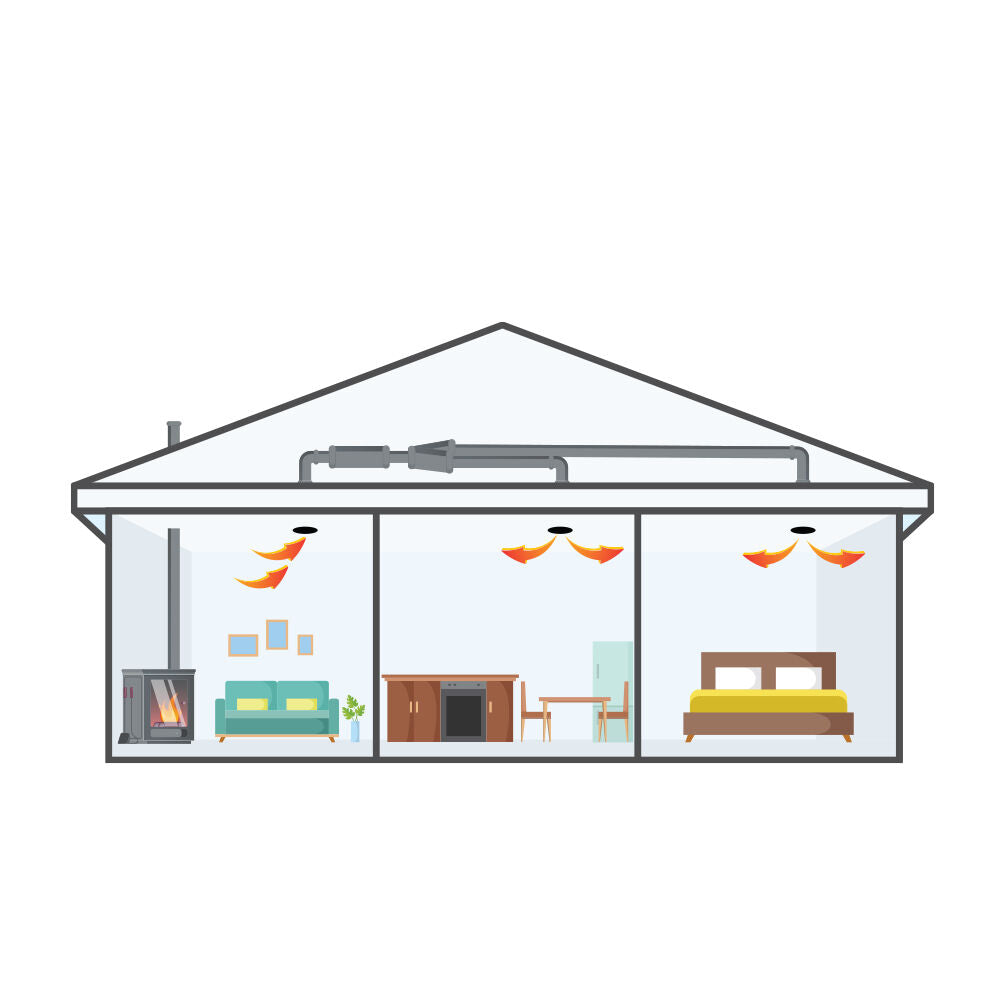

Create a more balanced and energy-efficient home environment with the Fantech 2-Room Standard Heat Transfer Kit. Designed to capture heated air from one room and redistribute it into two separate spaces, this system enhances comfort while helping reduce the need for extra heaters. At the heart of the kit is the Fantech Jetline mixed-flow in-line fan, known for its compact design, high airflow capacity, and reliable performance.

By transferring the warm air already generated in your living areas, this system reduces energy waste and improves the comfort of your home. Featuring premium-quality components such as UV-stabilized ABS grilles, galvanized steel duct fittings, and insulated flexible ducting, this kit is engineered to deliver dependable performance year after year.

Features

• Energy-Efficient Multi-Room Heat Transfer - Move existing warm air into two additional rooms, reducing heating costs and improving the overall energy efficiency of your home.
• High-Performance Airflow Delivery - The Fantech Jetline fan provides up to 750 m3/h of airflow, efficiently distributing warm air across larger spaces with low power consumption.
• Reliable, Durable Components - Built using galvanized steel, UV-stabilized ABS plastic, and polyester insulated ducting, the system offers lasting durability and minimal maintenance.
• Consistent Comfort Across Multiple Rooms - Eliminate temperature imbalances between rooms by evenly distributing the warmth where its needed most.
• Easy, DIY-Friendly Installation - Includes all necessary components for quick setup with standard tools. Designed to make installation accessible for both home DIYers and professional installers.

Specifications

• Fantech TD Silent In-Line Duct Mounted Fan Performance: 150mm diameter mixed-flow in-line fan with a maximum airflow output of approximately 750 m3/h. Powered by a highly efficient motor designed for continuous operation.
• Fan Housing: Lightweight galvanized steel casing with aerodynamic mixed-flow impeller design for quiet, efficient performance.
• Ducting: 152mm (6) diameter flexible acoustic duct, 6 meters in length. Insulated with 50mm thick polyester (R1.0 rating) and covered with a flame-retardant, puncture-resistant outer layer.
• Ceiling Grilles: Two 150mm diameter ceiling grilles with adjustable butterfly valves. Made from UV-stabilized ABS plastic to resist discoloration and wear.
• Y Connector: Non-insulated galvanized steel Y-connector with 150mm inlet and dual 150mm outlets for splitting airflow between two rooms.
• Duct Clamps: Four stainless steel worm-drive clamps for secure, rust-resistant sealing of ducting to fan, fittings, and grilles.
• Mounting Strap: 25mm wide, 50m roll of heavy-duty perforated hanging strap for neatly suspending ducting runs through roof or ceiling cavities.

Note: Fan requires connection to a switched power outlet or must be hardwired by a licensed electrician if necessary.

Ready for a Cozier Home?

The Fantech 2-Room Standard Heat Transfer Kit offers a simple, cost-effective way to extend the benefits of your main heating source to two additional rooms. With strong airflow, durable components, and straightforward installation, its a smart choice for homeowners looking to improve comfort and energy efficiency.

Order yours today and experience better warmth, lower heating costs, and consistent comfort across your home with Fantechs trusted ventilation performance.

• [1] x Fantech IALG Ceiling Mounted Inlet Internal Grille - White | Adjustable - [Flange Size: 200MM]
• [1] x Fantech TD Silent In-Line Duct Mounted Fan - 200MM (8" Inch) | 95W | 900 M3/H
• [2] x Fantech IALG Ceiling Mounted Inlet Internal Grille - White | Adjustable - [Flange Size: 150MM]
• [2] x Polyester Insulated Flexible Acoustic Duct - 152MM (6" Inch) x 6M | R1.0 | 50MM Insulation
• [1] x Polyester Insulated Flexible Acoustic Duct  - 203MM (8" Inch) x 6M | R1.0 | 50MM Insulation
• [1] x Duct Hanging Strap Tape - 25MM x 50M | Blue
• [4] x Quick Fit Stainless Steel Duct Clamp for Rigid & Flexi Ducting - 152MM (6" Inch)
• [1] x Galvanized Steel Y Duct Connector with Insulation - 200MM x 150MM x 150MM

• Specification Sheet - Click Here
