Fantech 3-Room Silent Heat Transfer Kit - 200MM Fantech TD Silent In-Line Fan | 900 M3/H

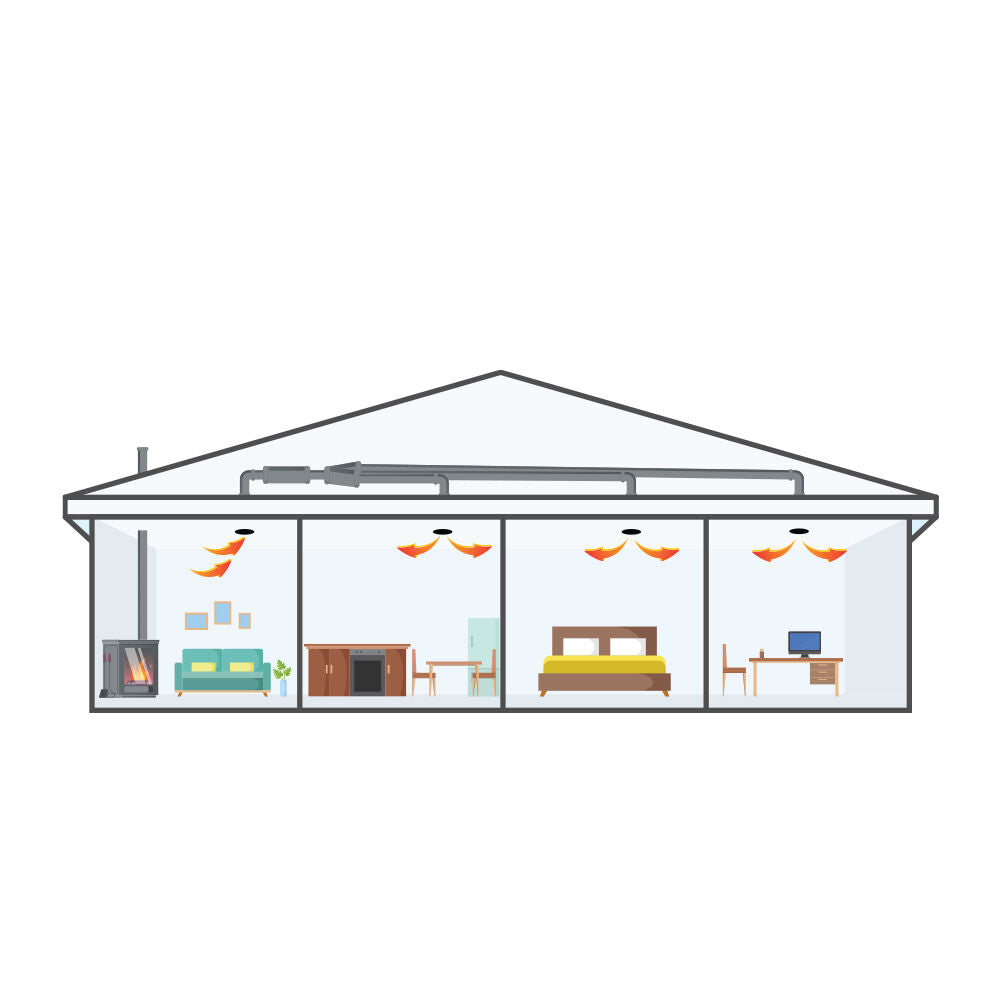

Create a whisper-quiet and energy-efficient heating solution for your home with the Fantech 3-Room Silent Heat Transfer Kit. This complete system captures warm air from a heated living space and distributes it into three additional rooms, making it ideal for larger homes or areas with multiple zones that need added warmth. Featuring the renowned Fantech TD Silent 200MM in-line fan, this system delivers 900 m3/h airflow with near-silent operation, thanks to internal acoustic insulation and anti-vibration mounting.

By reusing existing warm air, this system helps reduce heating costs while maintaining consistent comfort. Every component in the kit is built for long-lasting performance from the galvanized steel splitter and insulated ducting to the ABS ceiling grilles and rust-resistant clamps making it a reliable, low-maintenance solution for Australian homes.

Features

• Silent Multi-Room Heat Distribution - Transfer heated air from one source into three rooms quietly and efficiently ideal for bedrooms, offices, or secondary living spaces.
• Ultra-Quiet, High-Performance Fan - The Fantech TD Silent fan delivers up to 900 m3/h of airflow with internal acoustic insulation and a silent-block motor mount for low-noise performance.
• Durable & Efficient Components - Includes galvanized steel fittings, thick R1.0 insulated ducting, rust-resistant stainless steel clamps, and UV-stabilized ABS grilles for long-term use and minimal maintenance.
• Even Warmth Throughout the Home -Provides consistent and balanced warmth across multiple rooms using air that would otherwise go to waste.
• All-in-One DIY-Friendly Kit -Designed for straightforward installation with all required components included. Perfect for both homeowners and professional installers.

Specifications

• Fantech TD Silent In-Line Duct Mounted Fan: 200mm mixed-flow fan with max airflow of 900 m3/h. Powered by a 95W motor with two-speed control. IP44 rated for dust and moisture protection. Sound-insulated housing for whisper-quiet operation.
• Fan Housing: Made from durable polymer with internal acoustic lining and silent-block motor mounts for vibration reduction.
• Ducting (200mm): 203mm diameter, 6 meters long, insulated with 50mm polyester (R1.0 rating). Flame-retardant and tear-resistant.
• Ducting (150mm): Three 152mm diameter ducts, 6 meters each. Fully insulated with thick polyester to reduce noise and retain heat.
• Ceiling Grilles: One 200mm intake grille and three 150mm outlet grilles. Adjustable butterfly valves. Constructed from UV-stabilized ABS plastic for a clean, durable finish.
• Splitter (DBTO): Galvanized steel splitter (200mm inlet, three 150mm outlets) for quiet, even airflow distribution.
• Duct Clamps: Nine stainless steel worm-drive clamps for secure, corrosion-resistant sealing of duct connections.
• Mounting Strap: 25mm wide, 50m roll of heavy-duty perforated strap for suspending ducting in ceiling cavities.
• Note: Fan must be connected to a switched power outlet. If hardwired installation is needed, it must be performed by a licensed electrician.

Ready for a Warmer, Quieter Home?

The Fantech 3-Room Silent Heat Transfer Kit is the perfect solution for distributing warmth quietly and efficiently throughout your home. Designed with premium-grade materials and powered by the ultra-quiet TD Silent fan, this system delivers comfort, energy savings, and professional results with minimal maintenance.

Order today and enjoy whisper-quiet warmth in every corner of your home powered by Fantech.

• [1] x Fantech TD Silent In-Line Duct Mounted Fan - 200MM (8" Inch) | 95W | 900 M³/H
• [3] x Fantech IALG Ceiling Mounted Inlet Internal Grille - White | Adjustable - [Flange Size: 150MM]
• [1] x Fantech IALG Ceiling Mounted Inlet Internal Grille - White | Adjustable - [Flange Size: 200MM]
• [3] x Polyester Insulated Flexible Acoustic Duct - 152MM (6" Inch) x 6M | R1.0 | 50MM Insulation
• [1] x Polyester Insulated Flexible Acoustic Duct  - 203MM (8" Inch) x 6M | R1.0 | 50MM Insulation
• [1] x Galvanized Steel Double BTO (DBTO) - [Size: 200MM x 150MM x 150MM x 150MM | 8" x 6" x 6" x 6"]
• [1] x Duct Hanging Strap Tape - 25MM x 50M | Blue
• [9] x Quick Fit Stainless Steel Duct Clamp for Rigid & Flexi Ducting - 203MM (8" Inch)

• Specification Sheet - Click Here
