Fantech 4-Room Standard Heat Transfer Kit - 200MM Fantech Jetline Exhaust Fan | 1080 M3/H

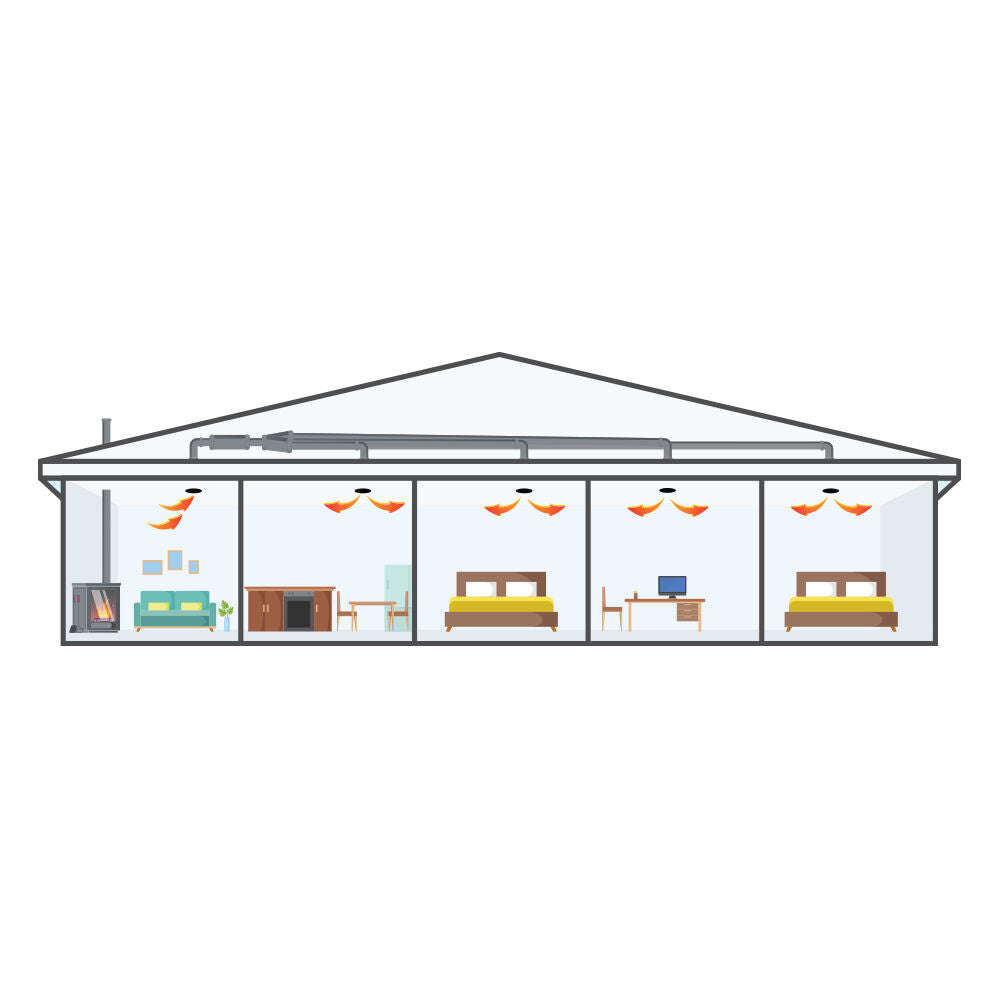

Efficiently distribute warmth from a single heated space into four separate rooms with the Fantech 4-Room Standard Heat Transfer Kit. Ideal for use with fireplaces, split systems, or gas heaters, this system captures rising warm air and moves it throughout your home to improve comfort and reduce heating costs. At the core of the system is the Fantech Jetline 200MM mixed-flow in-line fan, which delivers a powerful 1080 m3/h airflow with energy-efficient operation.

Whether you're heating bedrooms, home offices, or secondary living spaces, this kit is a complete solution built with premium-grade components, including galvanized steel fittings, polyester-insulated ducting, rust-proof clamps, and UV-stabilized ABS grilles. Designed for both professional installers and capable DIYers, it ensures consistent and balanced warmth across your home.

Features

• Efficient Heating for Four Rooms - Transfer warm air from one source room into four others to reduce energy usage and eliminate cold zones in your home.
• High-Performance Airflow - The Fantech Jetline fan provides up to 1080 m3/h airflow with a 125W motor, making it suitable for larger homes and extended duct runs.
• Durable & Professional-Grade Components -Includes galvanized steel duct fittings, thick R1.0 acoustic insulated ducting, UV-resistant ceiling grilles, and stainless steel clamps built to last.
• Even Temperature Distribution - Achieve consistent, balanced warmth throughout multiple areas without relying on additional heaters or increasing power usage.
• DIY-Friendly, All-in-One Kit - Comes with everything you need for a smooth, professional installation. Designed for use with basic tools and suitable for home users and trades alike.

Specifications

• Inline Fan Performance - 200mm mixed-flow in-line fan. Max airflow: 1080 m3/h. 125W motor with IP44-rated protection for use in ceiling and roof cavities. Quiet and efficient.
• Fan Housing -Lightweight galvanized steel casing with aerodynamic impeller. Designed for compact installation and reduced operating noise.
• Ducting (200mm) - 203mm flexible duct, 6m long, with 50mm polyester insulation (R1.0). Tear-resistant and flame-retardant outer barrier.
• Ducting (150mm) - Four 152mm ducts, 6m each, fully insulated with 50mm polyester for noise suppression and heat retention.
• Ceiling Grilles - One 200mm and four 150mm ABS ceiling diffusers. All include adjustable butterfly valves and clip-in installation. UV-stabilized and scratch-resistant.
• Splitter Fittings:
  • 1 Galvanized DBTO (200mm inlet, 3 150mm outlets)
  • 1 Galvanized BTO (200mm x 200mm x 150mm) with foam insulation
• Duct Clamps - Eleven stainless steel clamps designed to secure duct connections. Worm-drive mechanism ensures a tight, rust-proof seal.
• Mounting Strap - 25mm wide, 50m long perforated strap for suspending ducting neatly and securely in ceiling or roof spaces.

Note:

The fan must be connected to a switched power outlet. If hardwiring is required, installation must be completed by a licensed electrician.

Ready for Whole-Home Comfort?

The Fantech 4-Room Standard Heat Transfer Kit is a powerful, reliable solution for multi-room heat distribution. Designed to save energy and increase comfort across your entire home, this kit is ideal for growing households, multi-zone spaces, or anyone looking to maximise the warmth from their existing heater.

Order today and experience smart, even, and efficient heating the Fantech way.

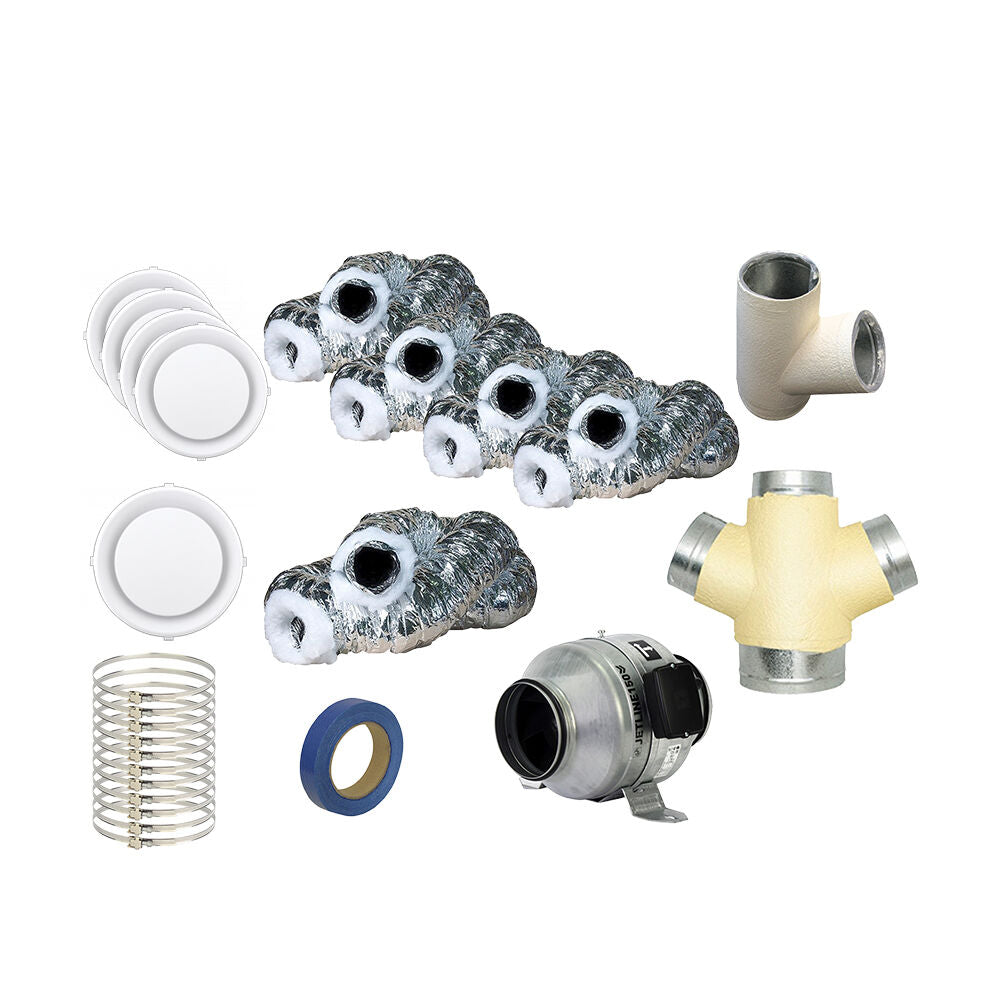

• [1] x Fantech Jetline In-line Duct Mounted Fan - 200MM (8" Inch) | 125W | 1080 M³/H | IP44
• [4] x Fantech IALG Ceiling Mounted Inlet Internal Grille - White | Adjustable - [Flange Size: 150MM]
• [1] x Fantech IALG Ceiling Mounted Inlet Internal Grille - White | Adjustable - [Flange Size: 200MM]
• [4] x Polyester Insulated Flexible Acoustic Duct - 152MM (6" Inch) x 6M | R1.0 | 50MM Insulation
• [1] x Polyester Insulated Flexible Acoustic Duct  - 203MM (8" Inch) x 6M | R1.0 | 50MM Insulation
• [1] x Galvanized Steel Double BTO (DBTO) - [Size: 200MM x 150MM x 150MM x 150MM | 8" x 6" x 6" x 6"]
• [1] x Galvanized Steel BTO Duct Connector w/ Foam Insulation - 200MM x 200MM x 150MM | 8" x 8" x 6"
• [1] x Duct Hanging Strap Tape - 25MM x 50M | Blue
• [11] x Quick Fit Stainless Steel Duct Clamp for Rigid & Flexi Ducting - 203MM (8" Inch)

• Specification Sheet - Click Here
