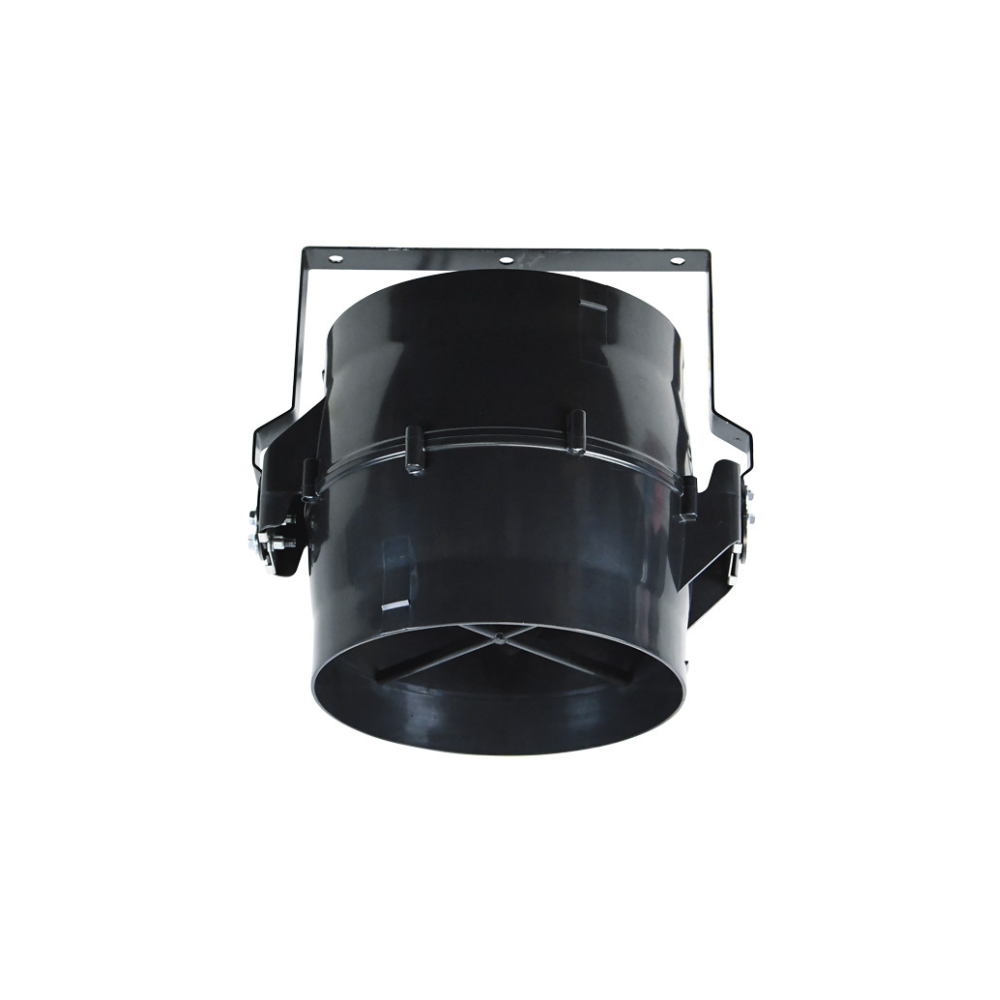

Fantech Aeromini ZOO (Zone Of Occupancy) Destratification AC Fan - ZFH15 | 250MM
Air Flow 936 M³/H | Power Consumption 60W | IP44
Product Overview
| Model Number | ZFH15 |
| Airflow (M³/H) | 936 |
| Motor Type | AC |
| Exhaust Fan Power (W) | 60 |
| IP Rating | IP44 |
| Voltage | 240V - 1 Phase |
| Thermostat | No |
| Speeds / Control | Optional |
| Warranty | Fantech - 2 Years warranty |
Description
Description
The Fantech Zoo Destratification Fan ZFH15 is a compact and efficient air circulation fan designed to eliminate temperature stratification by drawing warm air from ceiling level and directing it back into occupied spaces. This controlled airflow improves indoor comfort while helping reduce heating system energy consumption and operating costs.
Part of the innovative ZOO (Zone Of Occupancy) Series, the ZFH15 features a reliable AC external rotor motor that delivers consistent performance and adjustable airflow. By creating a gentle, precise column of air, the fan effectively redistributes trapped heat, resulting in a more comfortable environment for workers, customers, and occupants.
Manufactured from fire-resistant ABS injection moulded plastic, the ZFH15 combines durability with lightweight construction. The robust powder-coated steel pivoting handle allows airflow to be directed toward specific areas, while galvanised eye bolts simplify installation. Sealed-for-life ball bearings and auto-reset thermal protection provide reliable long-term operation with minimal maintenance.
Ideal for warehouses, workshops, retail stores, factories, offices, and commercial buildings, the Fantech ZFH15 Zoo Destratification Fan is an effective solution for improving heat distribution, enhancing comfort, and lowering building operating costs.
Features
Features
- Destratification Technology - Draws warm air from ceiling level and redistributes it into occupied areas.
- Reduces Heating Costs - Improves heat distribution and increases heating system efficiency.
- 250mm Compact Design - Suitable for commercial and industrial air circulation applications.
- Speed Controllable AC Motor - Allows airflow adjustment to suit environmental requirements.
- Adjustable Airflow Direction - Pivoting handle enables quick targeting of specific zones.
- Fire Resistant Housing - Manufactured from durable fire-resistant ABS injection moulded plastic.
- Easy Installation - Includes galvanised eye bolts for simple hanging cable installation.
- Auto Reset Thermal Protection - Provides additional motor safety and reliability.
- Sealed-for-Life Bearings - Low maintenance and long service life.
- Suitable for Commercial Buildings - Ideal for warehouses, workshops, offices, factories, and retail spaces.
Specifications
Specifications
| Specification | ZFH15 |
|---|---|
| Model | ZFH15 |
| Series | Zoo Destratification Fan |
| Fan Size | 250 mm |
| Motor Type | External Rotor Squirrel Cage AC Induction Motor |
| Voltage | 230V Single Phase |
| Frequency | 50/60Hz |
| Power Input | 0.06 kW |
| Current Draw | 0.28 A |
| Speed | 23 rps |
| Noise Level | 48 dB(A) @ 3m |
| Maximum Operating Temperature | 60°C |
| Approximate Weight | 4 kg |
| Motor Protection | IP44 |
| Thermal Protection | Auto Reset Thermal Protection |
| Housing Material | Fire Resistant ABS Injection Moulded Plastic |
What's in the box
What's in the box
- [1] x Fantech Aeromini ZOO (Zone Of Occupancy) Destratification AC Fan - ZFH15 | 250MM
