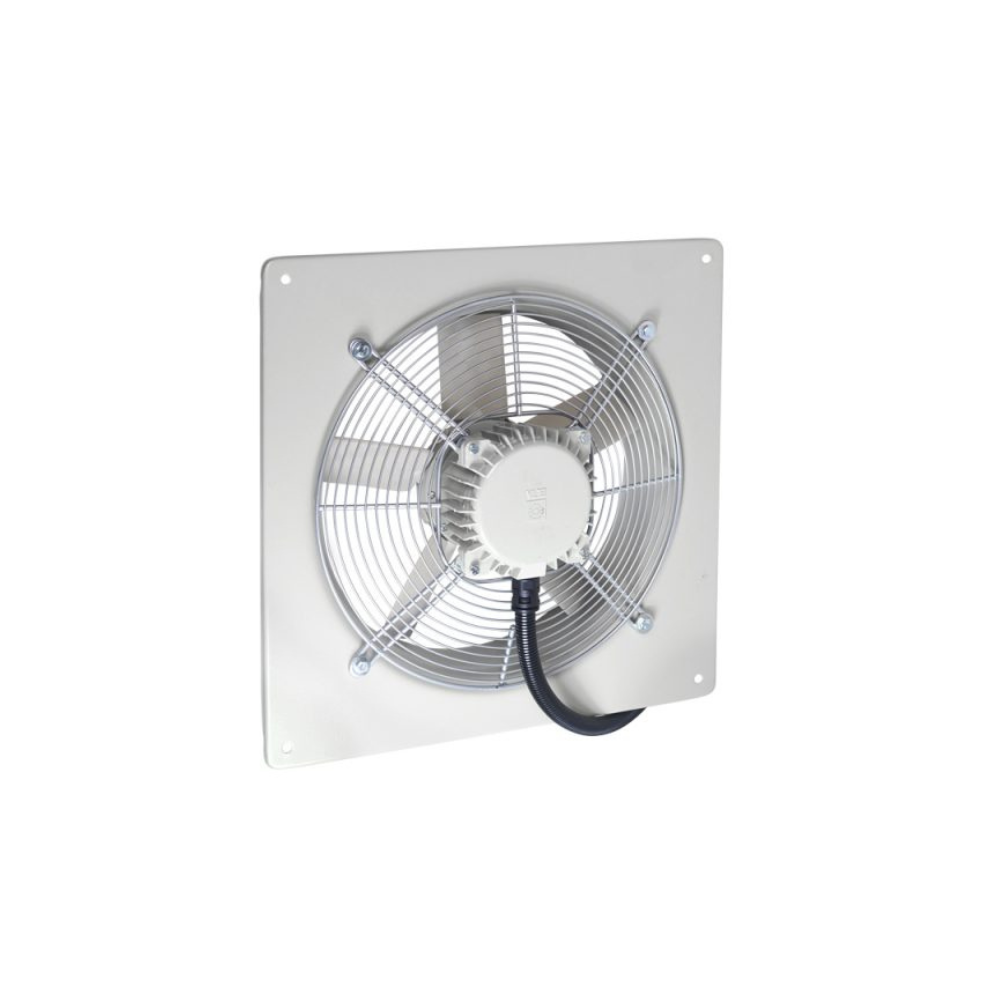

Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 1 Phase | CPE0254F

The Fantech CPE0254F Compact 2000 Axial Exhaust Fan is a robust and efficient solution for commercial and industrial ventilation requirements. With a 250MM (10" Inch) diameter and an airflow capacity of up to 972 M3/H, this fan is designed for reliable extraction of air from warehouses, factories, workshops, and plant rooms. Built from galvanised steel and finished with durable polyester epoxy paint, it offers long-term protection in demanding environments. The fan comes standard with an inlet guard for safety and features a flying lead with junction box and conduit for easy installation. Single phase design with speed control capability ensures efficient airflow management, while the IP55 rating makes it suitable for harsh Australian conditions.

• High Airflow - Delivers up to 972 M³/H for reliable extraction.
• Robust Design - Galvanised steel housing with durable epoxy coating.
• Energy Efficient - Single phase motor is speed controllable.
• Low Noise Operation - Quiet performance at just 42 dB(A) @ 3m.
• Built-in Safety - Inlet guard incorporated as standard.
• Easy Installation - Pre-fitted flying lead, junction box, and flexible conduit.
• Flexible Mounting - Can be installed in any position to suit application.

• Product Code: CPE0254F

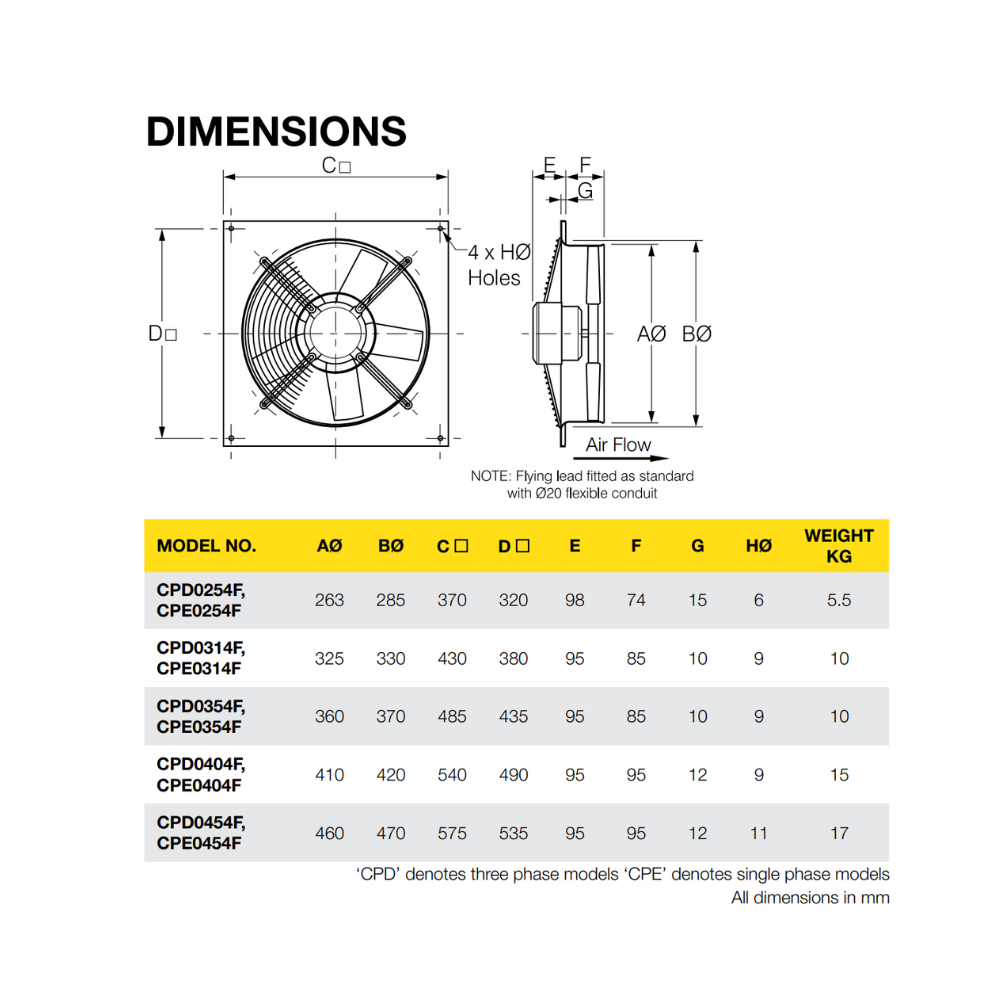

• Flange Size: 250MM (10" Inch)
• Air Flow: 972 M³/H
• Speed: 22 rps
• Power: 0.09 kW
• Current: 0.9 Amps
• Noise Level: 42 dB(A) @ 3m
• Max Pressure: 48 Pa
• Ingress Protection: IP55
• Mounting: Wall Mounted, Any Position

• [1] x Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 1 Phase | CPE0254F

• Specification Sheet - Click Here
