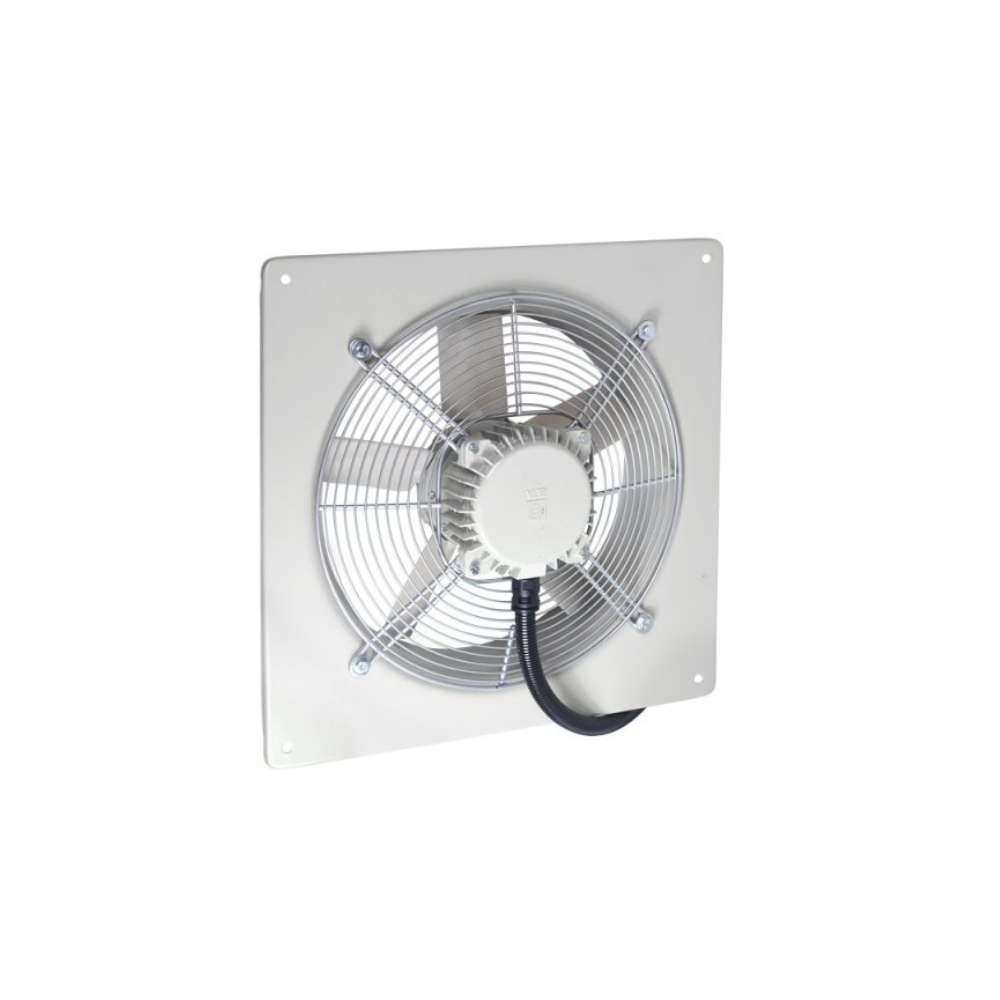

Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 1 Phase | CPE0314F

The Fantech CPE0314F Compact 2000 Axial Exhaust Fan is built for dependable commercial and industrial ventilation. With a 310MM (12" Inch) diameter and airflow capacity of 2232 M3/H, it provides efficient extraction for workshops, warehouses, factories, and plant rooms. Constructed from galvanised steel with a durable polyester epoxy paint finish, this model offers long service life in demanding environments. Single phase design allows for speed control to manage energy use, while a pre-fitted inlet guard ensures operator safety. For fast installation, the fan is supplied with a flying lead, junction box and flexible conduit. Rated to IP55, the CPE0314F can be mounted in any position for maximum flexibility.

• High Capacity Airflow - Provides up to 2232 M³/H for effective ventilation.
• Durable Construction - Galvanised steel with protective epoxy coating.
• Energy Efficient - Single phase motor is speed controllable.
• Quiet Operation - Low noise output of 45 dB(A) @ 3m.
• Safety Built-In - Inlet guard supplied as standard.
• Easy to Install - Pre-fitted flying lead, junction box and flexible conduit.
• Flexible Mounting - Suitable for installation in any orientation.

• Product Code: CPE0314F

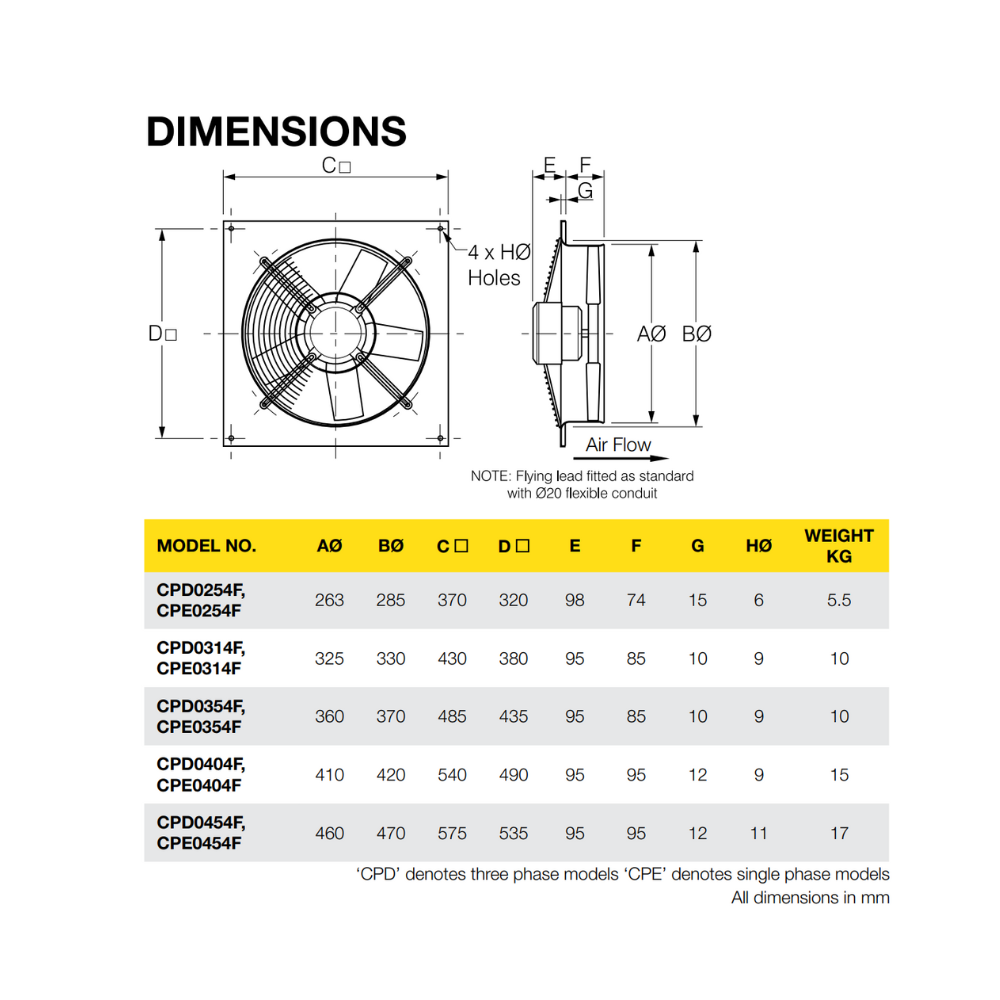

• Flange Size: 310MM (12" Inch)
• Air Flow: 2232 M³/H
• Speed: 22 rps
• Power: 0.09 kW
• Current: 0.9 Amps
• Noise Level: 45 dB(A) @ 3m
• Max Pressure: 56 Pa
• Ingress Protection: IP55
• Mounting: Wall Mounted, Any Position

• [1] x Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 1 Phase | CPE0314F
