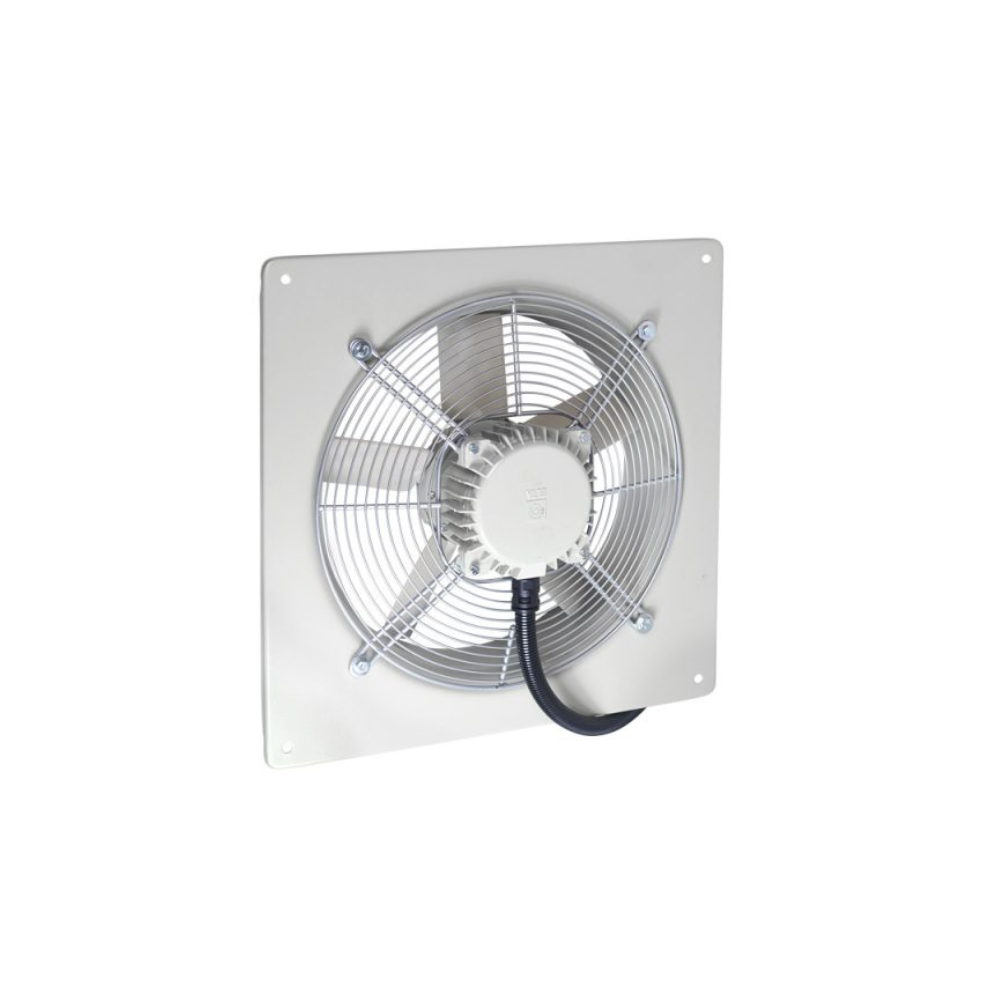

Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 1 Phase | CPE0404F

The Fantech CPE0404F Compact 2000 Axial Exhaust Fan is a powerful and durable solution for commercial and industrial ventilation. With a 400MM (16" Inch) diameter and airflow capacity of 5112 M3/H, it is ideal for large spaces such as factories, warehouses, workshops, and processing facilities. Built with galvanised steel construction and a polyester epoxy paint finish, it offers long-term durability in harsh Australian environments. The single phase motor is speed controllable for energy-efficient airflow management, while the inlet guard comes standard for safety. Installation is quick and easy thanks to the flying lead, junction box and flexible conduit. With an IP55 rating, this model is designed to perform reliably in demanding conditions and can be mounted in any position.

• High Airflow Capacity - Provides up to 5112 M³/H for large space ventilation.
• Robust Construction - Galvanised steel housing with durable epoxy finish.
• Energy Efficient - Speed controllable single phase motor.
• Quiet Performance - Operates at 52 dB(A) @ 3m.
• Safety Assured - Inlet guard supplied as standard.
• Quick Installation - Comes with flying lead, junction box and conduit.
• Flexible Mounting - Can be fitted in any orientation to suit requirements.

• Product Code: CPE0404F
• Flange Size: 400MM (16" Inch)
• Air Flow: 5112 M³/H
• Speed: 22 rps
• Power: 0.25 kW
• Current: 1.8 Amps
• Noise Level: 52 dB(A) @ 3m
• Max Pressure: 74 Pa
• Ingress Protection: IP55
• Mounting: Wall Mounted, Any Position

• [1] x Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 1 Phase | CPE0404F

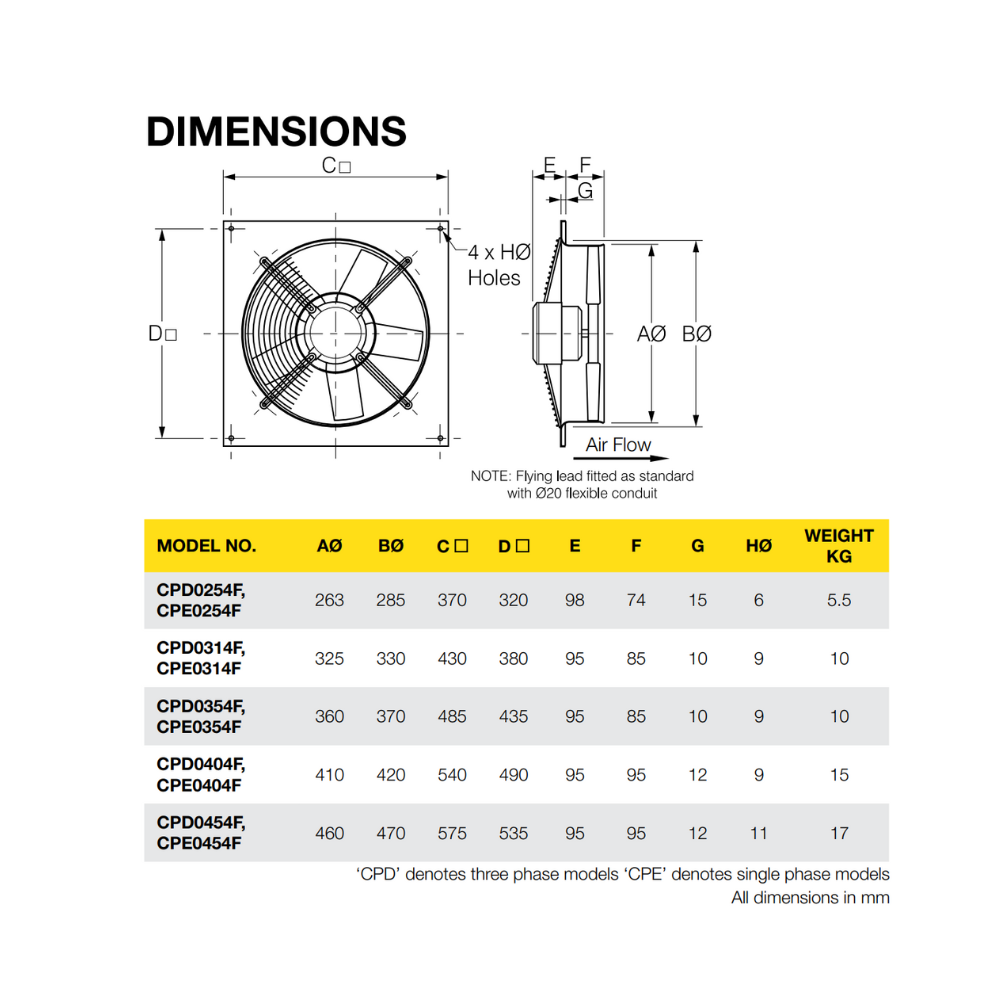

• Specification Sheet - Click Here
