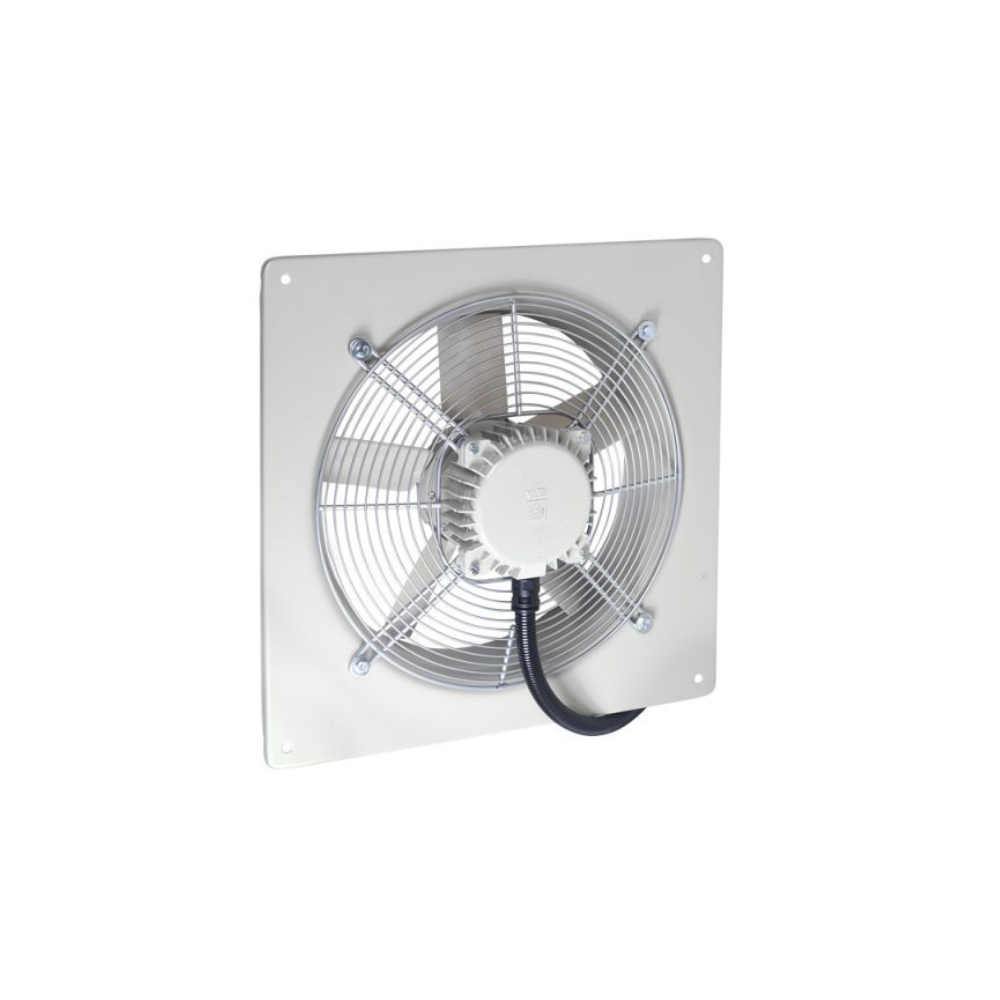

Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 3 Phase | CPD0354F

The Fantech Compact 2000 CPD0354F is a high performance 350MM wall mounted square plate axial exhaust fan designed to deliver reliable ventilation in commercial and industrial environments. Manufactured from galvanised steel and finished with a durable epoxy coating, this fan is built for strength and long service life.

With a powerful airflow capacity of 3348 M3/H and a quiet 49 dB(A) noise level at 3 metres, the CPD0354F ensures efficient air movement in factories, warehouses, workshops, and other heavy duty facilities. This 3 phase fan includes a standard inlet guard, and comes pre-fitted with a flying lead, junction box, and flexible conduit for simple installation. It operates across a wide temperature range from -200C to 700C and can be mounted in any position to suit your system design.

Engineered for demanding ventilation needs, the CPD0354F is the ideal solution for continuous and reliable airflow performance.

• Strong airflow performance - 3348 M³/H at 22 rps.
• Durable build - Galvanised steel housing with epoxy paint finish.
• Quiet operation - 49 dB(A) noise level at 3m.
• Standard inlet guard - Ensures safe and reliable use.
• Temperature resilience - Operates between -20°C and 70°C.
• Flexible installation - Can be mounted in any position.
• Pre-fitted connections - Supplied with flying lead, junction box, and conduit.
• Weather protection - Rated IP55 against dust and water ingress.

• Product Code: CPD0354F

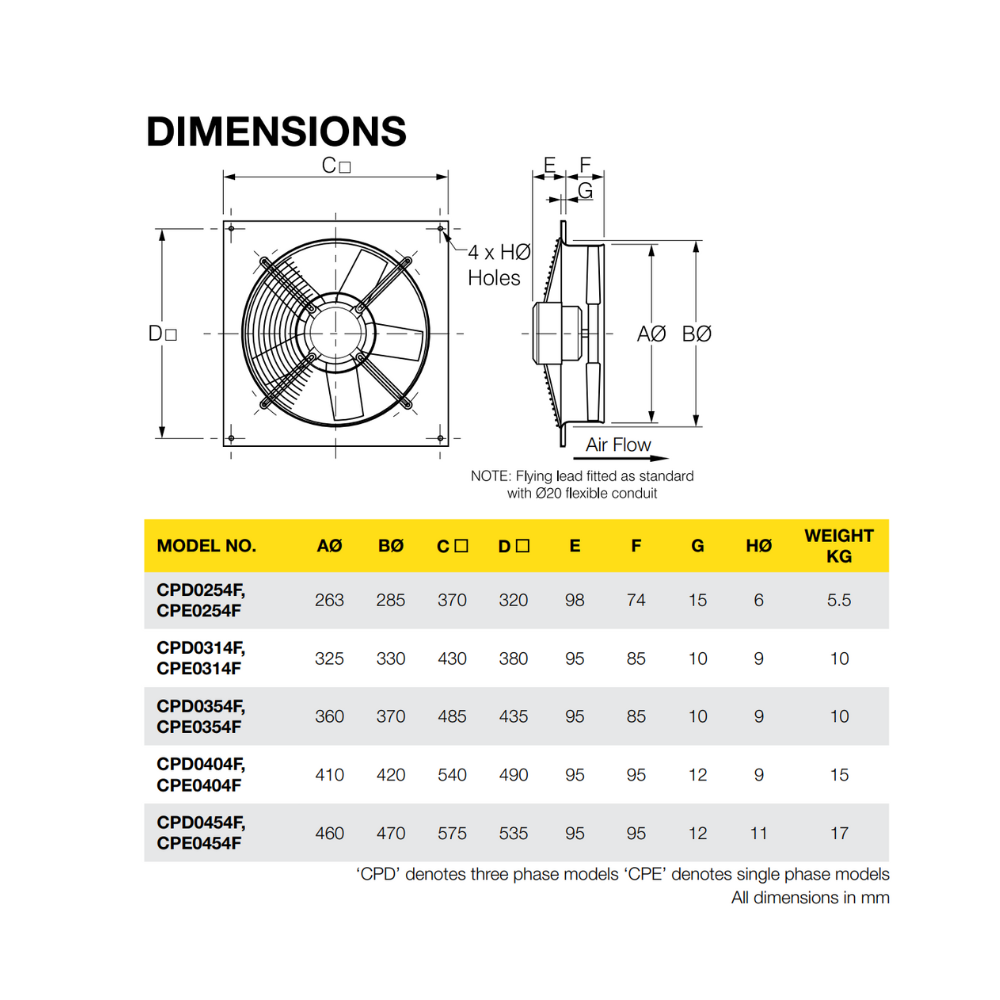

• Diameter: 350MM (14" Inch)
• Airflow: 3348 M³/H
• Speed: 22 rps
• Power: 0.12kW
• Current: 0.5A
• Noise Level: 49 dB(A) @3m
• Max Pressure: 76 Pa
• Operating Temp Range: -20°C to 70°C
• Protection Rating: IP55

• [1] x Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 3 Phase | CPD0354F

• Specification Sheet - Click Here
