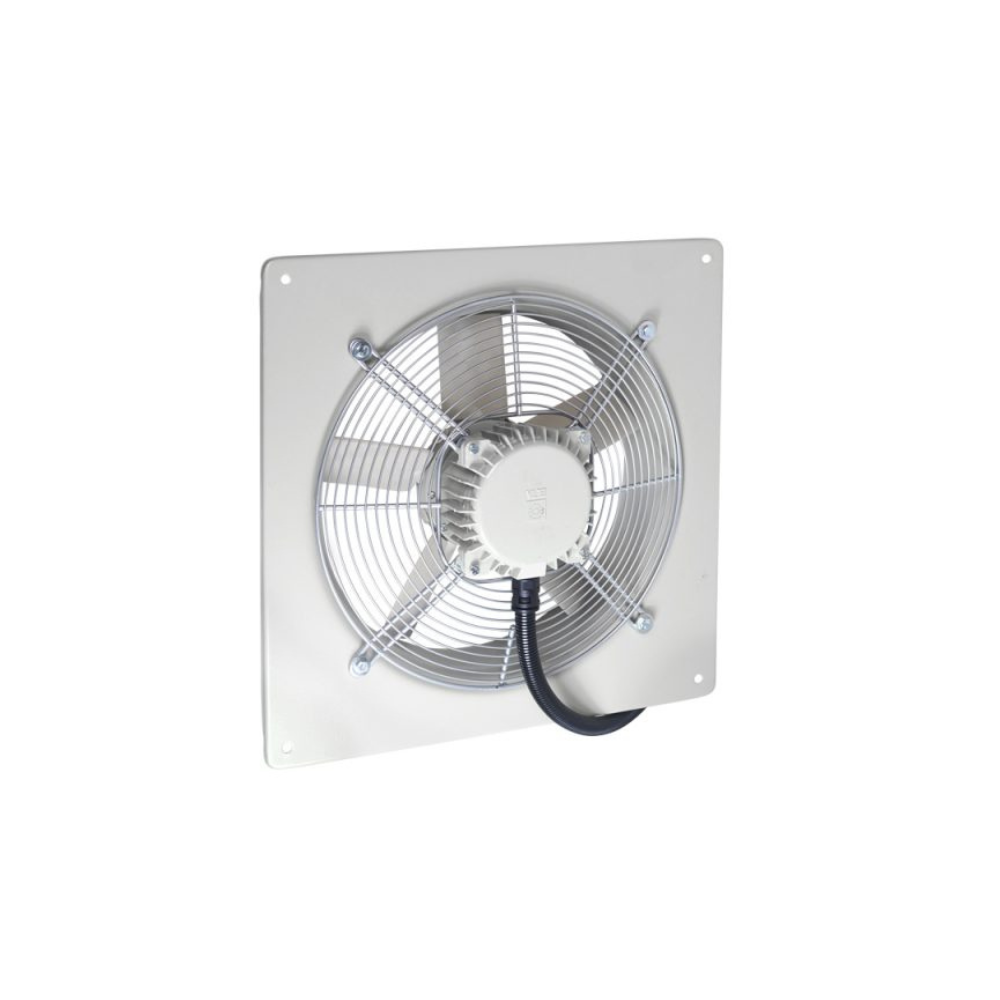

Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 3 Phase | CPD404F

The Fantech Compact 2000 CPD0404F is a heavy duty 400MM wall mounted square plate axial exhaust fan designed for industrial and commercial ventilation. Built from galvanised steel and finished with a durable epoxy coating, this fan is engineered for strength, durability, and reliable long term performance.

Delivering a powerful airflow of 5112 M3/H with a noise level of just 52 dB(A), the CPD0404F is ideal for ventilating larger spaces such as warehouses, factories, workshops, and processing facilities. This 3 phase fan comes pre-fitted with a flying lead, junction box, and flexible conduit for straightforward installation, and it can be mounted in any position for maximum system flexibility.

Operating across a wide temperature range of -200C to 700C with a protection rating of IP55, the CPD0404F ensures reliable operation even in tough environments.

• High airflow output - 5112 M³/H at 22 rps.
• Durable design - Galvanised steel housing with epoxy finish.
• Low noise performance - 52 dB(A) @3m.
• Inlet guard - Included as standard for added safety.
• Wide temperature tolerance - Operates from -20°C to 70°C.
• Flexible installation - Can be mounted in any position.
• Simple setup - Supplied with flying lead, junction box, and conduit.
• IP55 protection - Dust and water resistant for industrial use.

• Product Code: CPD0404F

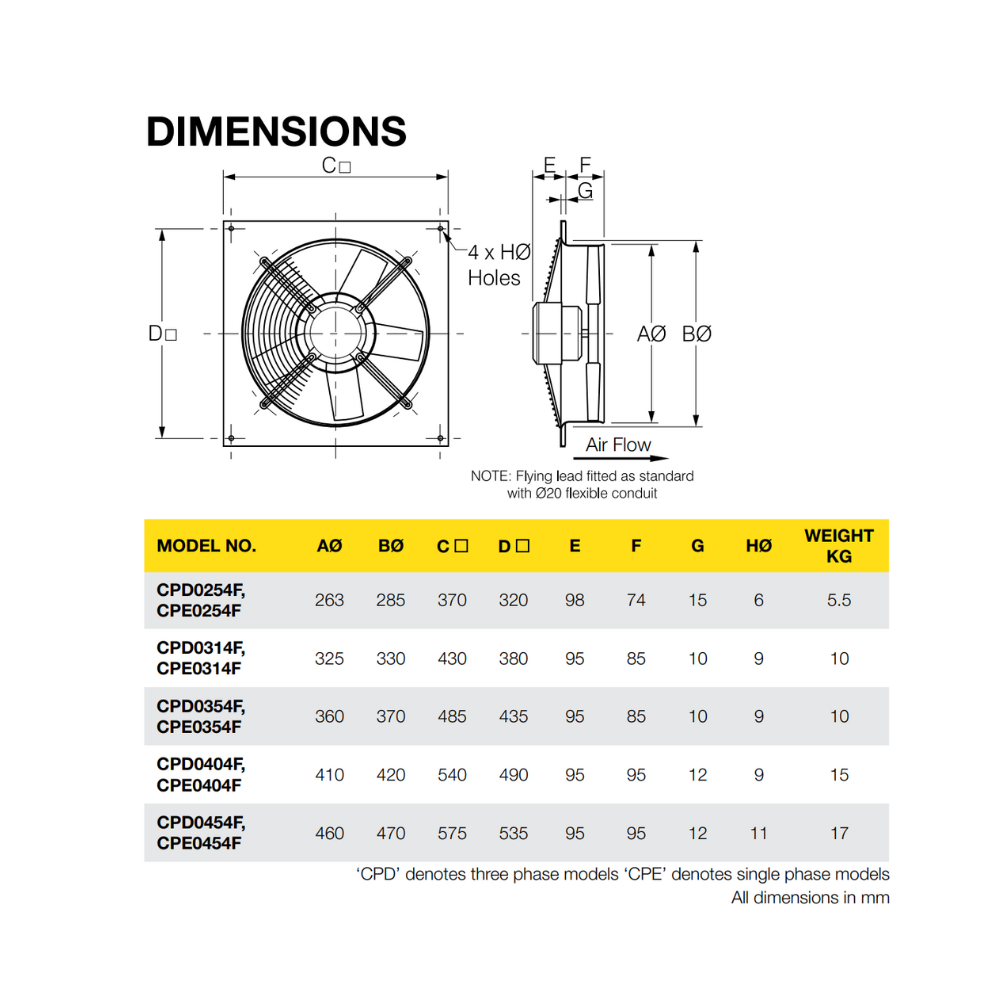

• Diameter: 400MM (16" Inch)
• Airflow: 5112 M³/H
• Speed: 22 rps
• Power: 0.37kW
• Current: 1.4A
• Noise Level: 52 dB(A) @3m
• Max Pressure: 74 Pa
• Operating Temp Range: -20°C to 70°C
• Protection Rating: IP55

• [1] x Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 3 Phase | IP55 | CPD404F
