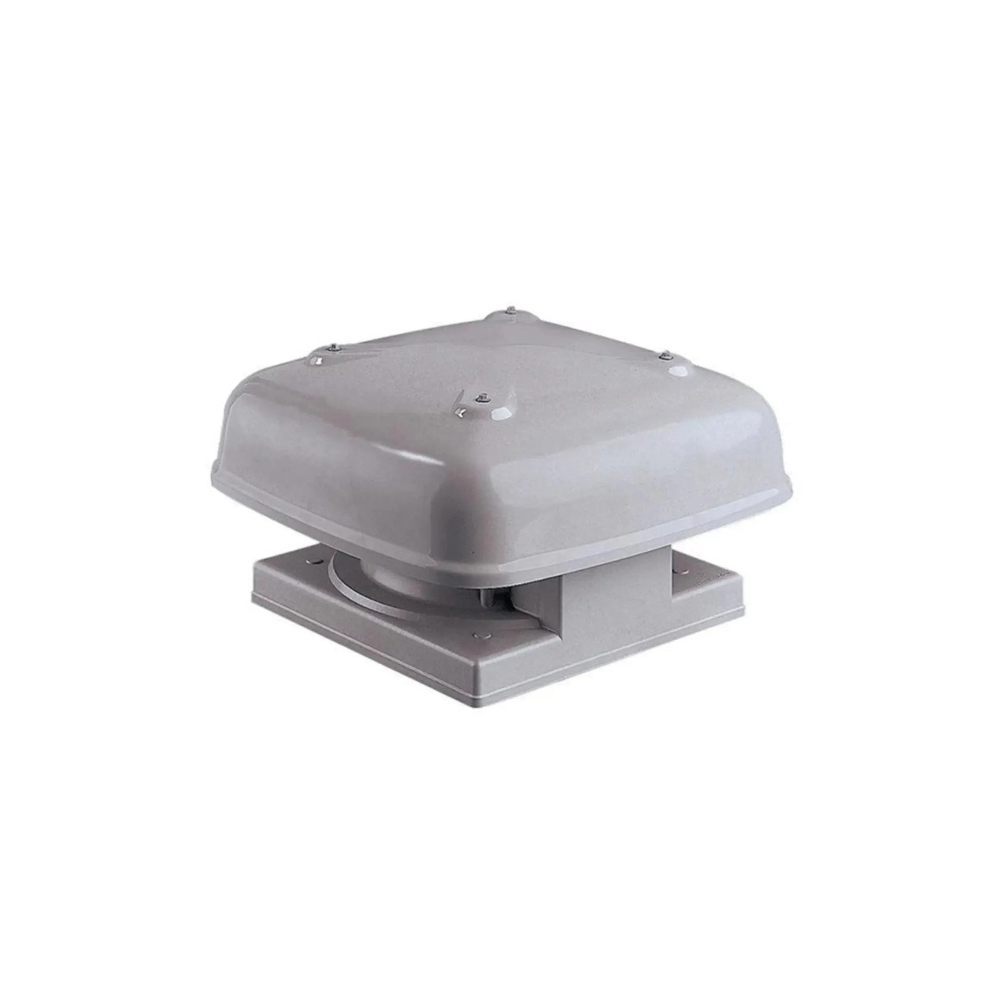

Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CD404D | 400MM | 4 Pole | 1 Phase

The Fantech Gamma CE404D Roof Mount Downflow Exhaust Fan is the largest model in the Gamma Downflow series, engineered for high-capacity commercial ducted ventilation systems. With a 400MM diameter and maximum airflow of 3888 M3/H, this unit is ideally suited for factories, warehouses, assembly halls, workshops, and bulk goods retail outlets.

Constructed with robust and lightweight materials, the CE404D features a low profile roof design and comes standard with a protective bird mesh guard, preventing debris and vermin from entering the ductwork.

Delivering powerful performance with a noise level of just 54 dB(A), the Gamma CE404D ensures efficient air movement while maintaining reliability for demanding Australian commercial environments.

• Robust, lightweight construction for long service life.
• 310MM fan size providing strong airflow up to 1512 M³/H.
• Low noise performance at 48 dB(A) @3m.
• Low profile roof design blends with building lines.
• Protective bird mesh guard fitted as standard.
• Designed for downflow discharge applications in commercial systems.
• Mountable at angles up to 30° for installation flexibility.

• Product Code: CE314D
• Diameter: 310MM (12" Inch)
• Speed: 22 RPS
• Power: 0.14 kW
• Current: 0.7A
• Noise Level: 48 dB(A) @3m
• Maximum Pressure: 215 Pa
• Maximum Airflow: 1512 M³/H

• [1] x Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE314D | 310MM | 4 Pole | 1 Phase
