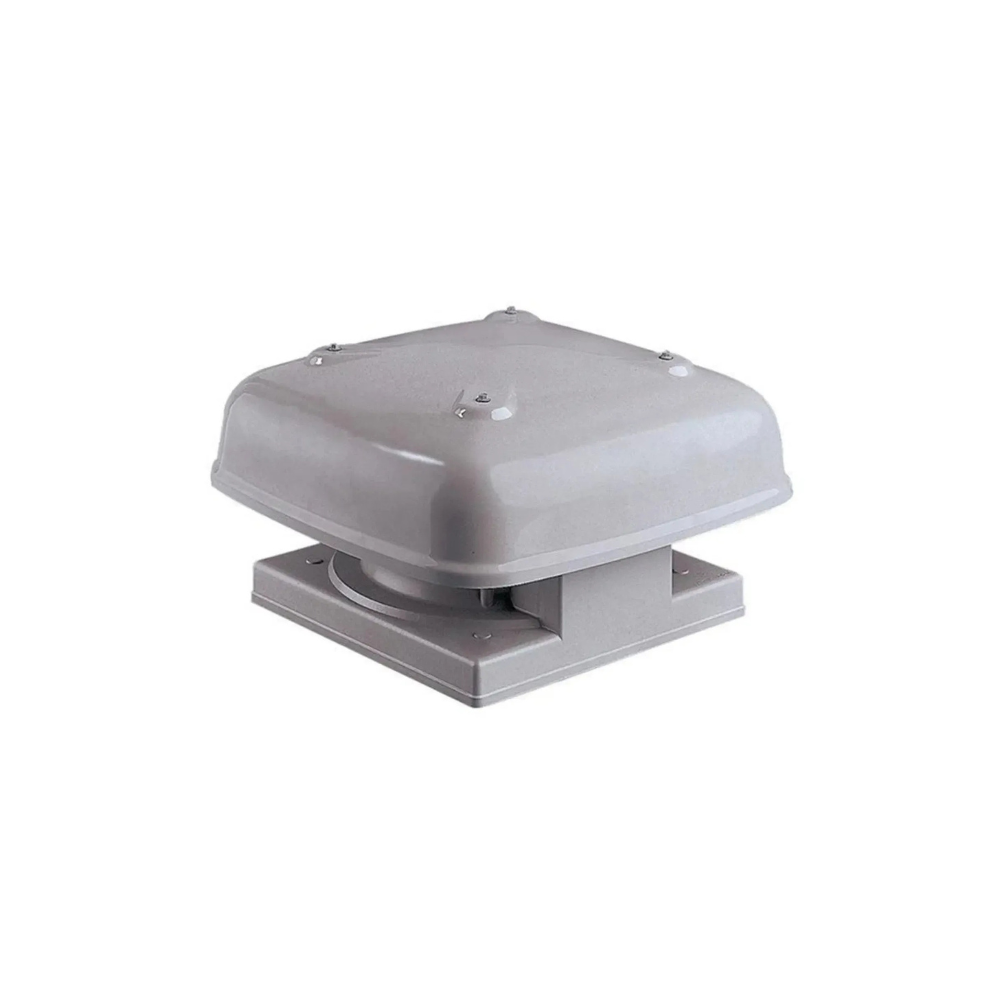

Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE224D | 220MM | 4 Pole | 1 Phase
Air Flow 612 M³/H | Power Consumption 49W | IP44
Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE224D | ...
Product Overview
| Model Number | CE224D |
| Airflow (M³/H) | 612 |
| Duct Flange Size | 220MM (8.5" Inch) |
| Motor Type | AC |
| Exhaust Fan Power (W) | 49 |
| Noise Level | 39 dBA at 3M |
| IP Rating | IP44 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | Optional |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Fantech - 2 years warranty* |
Description
Description
The Fantech Gamma CE224D Roof Mount Downflow Exhaust Fan is designed for commercial ducted ventilation systems that require efficient airflow with low noise. With a 220MM diameter and a low profile roof design, this unit is a popular choice for applications such as factories, warehouses, change rooms, workshops, and retail outlets.
The CE224D combines robust construction with quiet operation at just 39 dB(A), making it ideal for environments where both performance and noise reduction are important. Each fan is fitted with protective bird mesh to prevent vermin and debris entering the duct system, ensuring durability and safe operation.
Built to withstand Australian commercial conditions, the Gamma CE224D is a reliable and energy-efficient solution for continuous ventilation requirements.
Features
Features
- Robust, lightweight construction for long-lasting durability.
- Compact 220MM size with efficient airflow performance.
- Low noise operation at just 39 dB(A) @3m.
- Protective bird mesh guard fitted as standard.
- Low profile design suitable for discreet roof mounting.
- Designed for downflow discharge applications in commercial environments.
- Mountable at angles up to 30° for installation flexibility.
Specifications
Specifications
- Product Code: CE224D
- Diameter: 220MM (8.5" Inch)
- Speed: 23 RPS
- Power: 0.049 kW
- Current: 0.29A
- Noise Level: 39 dB(A) @3m
- Maximum Pressure: 130 Pa
- Maximum Airflow: 612 M³/H
What's in the box
What's in the box
- [1] x Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE224D | 220MM | 4 Pole | 1 Phase
