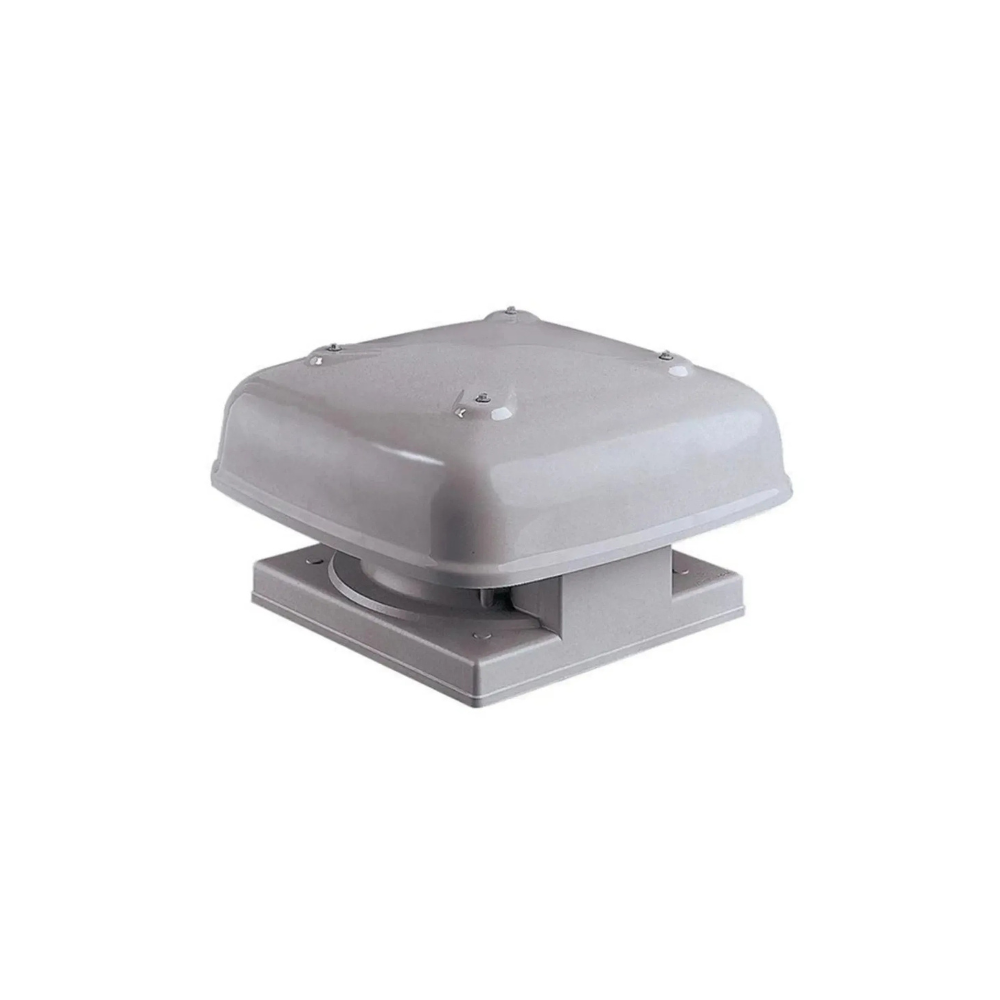

Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE254D | 250MM | 4 Pole | 1 Phase
Air Flow 900 M³/H | Power 72W | IP44
Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE254D | ...
Product Overview
| Model Number | CE254D |
| Airflow (M³/H) | 900 |
| Duct Flange Size | 250MM (10" Inch) |
| Motor Type | AC |
| Exhaust Fan Power (W) | 72 |
| Noise Level | 42 dBA at 3M |
| IP Rating | IP44 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | Optional |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Fantech - 2 years warranty* |
Description
Description
The Fantech Gamma CE254D Roof Mount Downflow Exhaust Fan is a highly efficient solution for commercial ducted ventilation systems. With a 250MM diameter and a maximum airflow of 900 M3/H, this fan is ideal for exhausting air from factories, warehouses, workshops, change rooms, and retail outlets.
The CE254D features a low profile roof design for discreet installation and comes standard with a protective bird mesh guard to prevent vermin and debris from entering the system. Its quiet operation at only 42 dB(A) makes it perfect for applications where noise control is important.
Built to perform reliably in Australian conditions, the Gamma CE254D offers durability, efficiency, and ease of installation for commercial ventilation projects.
Features
Features
- Robust, lightweight construction for long-term performance.
- 250MM fan size with efficient airflow up to 900 M³/H.
- Quiet operation at just 42 dB(A) @3m.
- Low profile roof design for unobtrusive appearance.
- Protective bird mesh guard fitted as standard.
- Designed for downflow discharge applications in commercial systems.
- Mountable at angles up to 30° for installation flexibility.
Specifications
Specifications
- Product Code: CE254D
- Diameter: 250MM (10" Inch)
- Speed: 23 RPS
- Power: 0.072 kW
- Current: 0.37A
- Noise Level: 42 dB(A) @3m
- Maximum Pressure: 151 Pa
- Maximum Airflow: 900 M³/H
What's in the box
What's in the box
- [1] x Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE254D | 250MM | 4 Pole | 1 Phase
