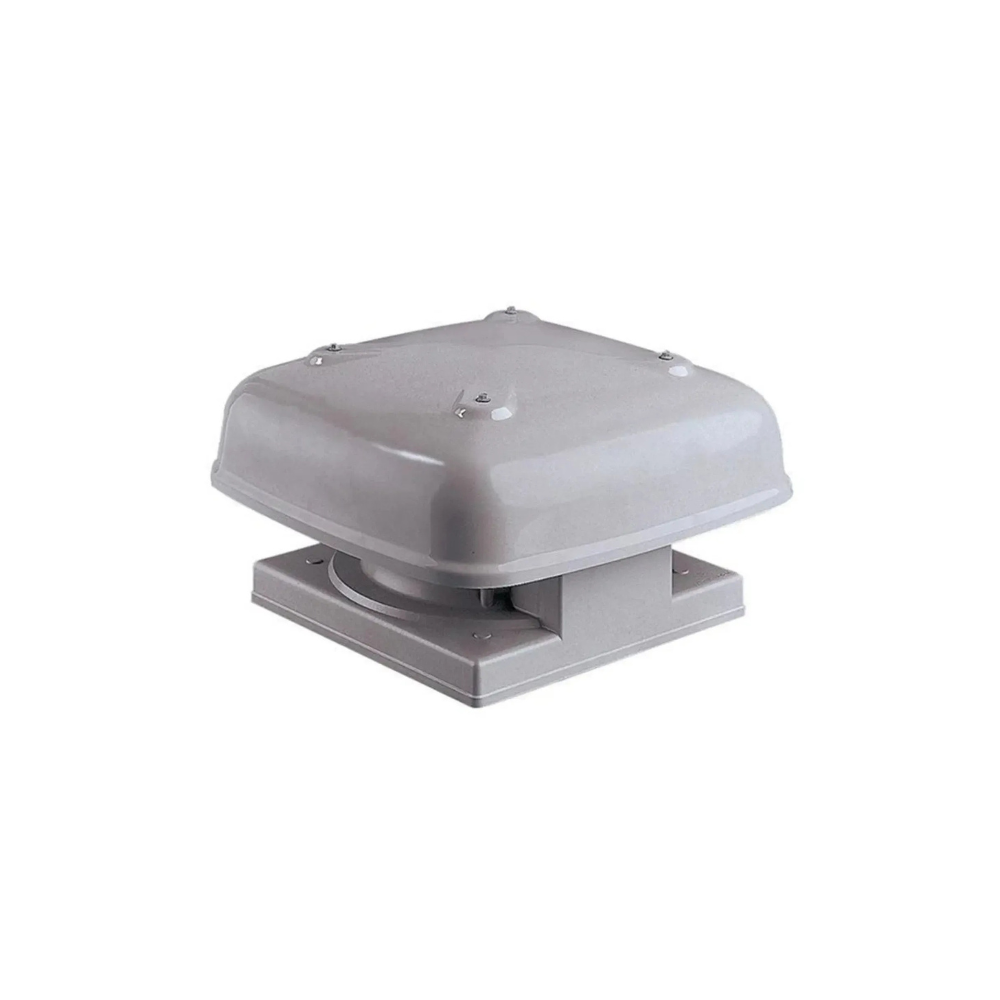

Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE354D | 350MM | 4 Pole | 1 Phase

The Fantech Gamma CE354D Roof Mount Downflow Exhaust Fan is a high-capacity solution for commercial ducted ventilation systems. With a 350MM diameter and maximum airflow of 2520 M3/H, this unit is ideal for large-scale applications such as factories, warehouses, workshops, change rooms, and retail outlets.

Constructed with robust and lightweight materials, the CE354D features a low profile roof design for minimal visual impact. Each fan includes a protective bird mesh guard to prevent vermin and debris from entering the ductwork, ensuring safe and reliable operation.

Operating at just 51 dB(A), the Gamma CE354D offers a strong balance of high airflow performance and low noise levels, making it suitable for demanding Australian commercial ventilation environments.

• Robust, lightweight construction for long service life.
• 350MM fan size delivering powerful airflow up to 2520 M³/H.
• Low noise level of 51 dB(A) @3m.
• Low profile roofline design for discreet installation.
• Protective bird mesh guard fitted as standard.
• Designed for downflow discharge applications in commercial systems.
• Mountable at angles up to 30° for installation flexibility.

• Product Code: CE354D
• Diameter: 350MM (14" Inch)
• Speed: 23 RPS
• Power: 0.27 kW
• Current: 1.3A
• Noise Level: 51 dB(A) @3m
• Maximum Pressure: 281 Pa
• Maximum Airflow: 2520 M³/H

• [1] x Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE354D | 350MM | 4 Pole | 1 Phase
