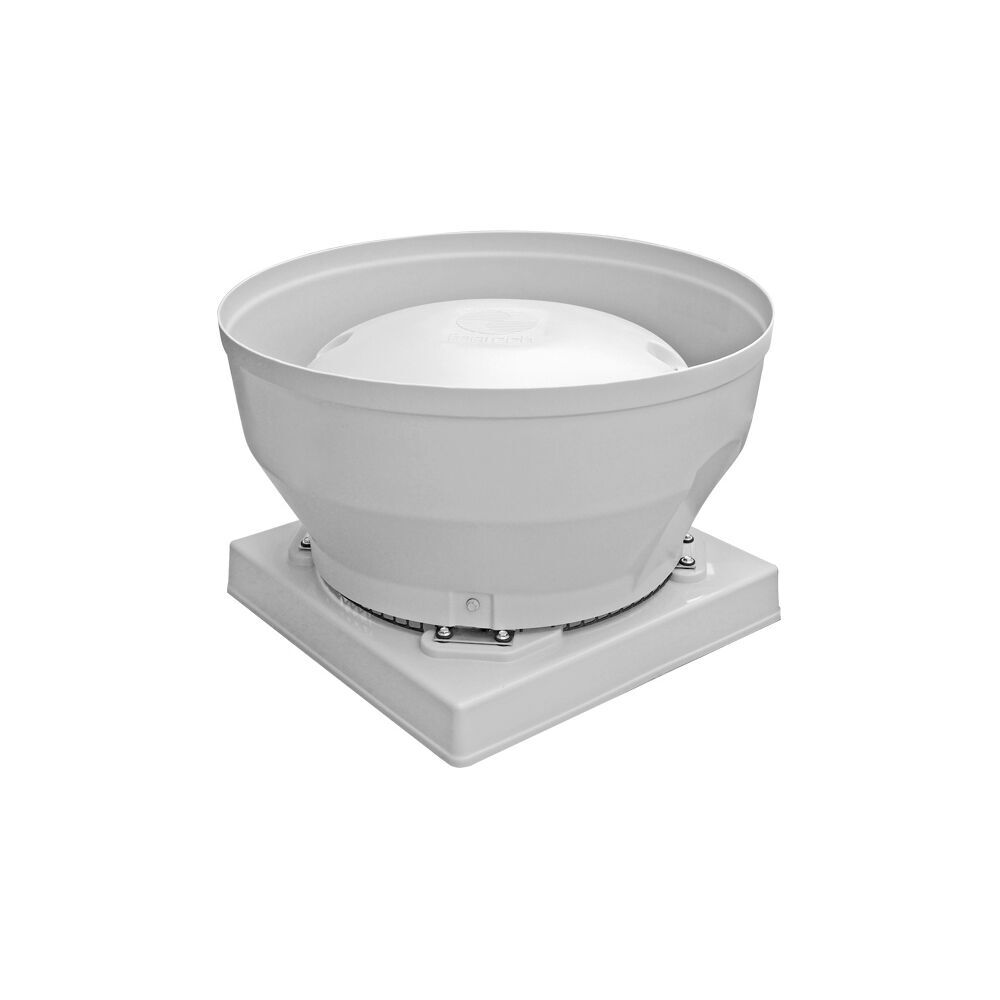

Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE192V | 190MM | 2 Pole | 1 Phase

Note: The Gamma Vertical Series Fans are designed for ducted exhaust applications in commercial environments such as kitchens and bathrooms. These units require professional installation by a licensed electrician and do not come with a pre-attached power cable.

The Fantech Gamma CE192V Roof Mounted Vertical Discharge Centrifugal Fan is designed for small to medium commercial ducted exhaust applications where reliable airflow and compact design are essential. Delivering an airflow of 443 M3/H, this unit is ideal for light commercial kitchens, laundries, and office ventilation systems. With a lightweight yet robust construction, the fan ensures durability in demanding conditions. Its UV stabilised cowls protect against Australias harsh climate, while the low profile design makes it perfect for restricted roof spaces. Operates on single phase 240V power supply and can be mounted at angles up to 30 degrees.

• Compact airflow solution - delivers 443 M³/H for smaller applications.
• Robust and lightweight build - reliable in commercial environments.
• UV stabilised cowls - long-lasting protection from sun and weather.
• Compact, low profile design - suitable for installations with limited roof space.
• Compatible with ducted systems - versatile use in commercial setups.
• Mountable at up to 30° - installation flexibility.
• Single phase 240V - simple power connection.
• Optional accessories - speed controllers, run-on timers, and upstands available.

• Model No: CE192V
• Air Flow: 443 M³/H
• L/Sec: 123
• Nominal Speed: 42 R/S
• Average dB(A) @ 3m: 45
• Power Consumption: 70W
• Amps: 0.30
• Flange Size: 200MM (8" Inch)
• IP Rating: IP44
• Weight: 4 Kg

• [1] x Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE192V | 190MM | 2 Pole | 1 Phase

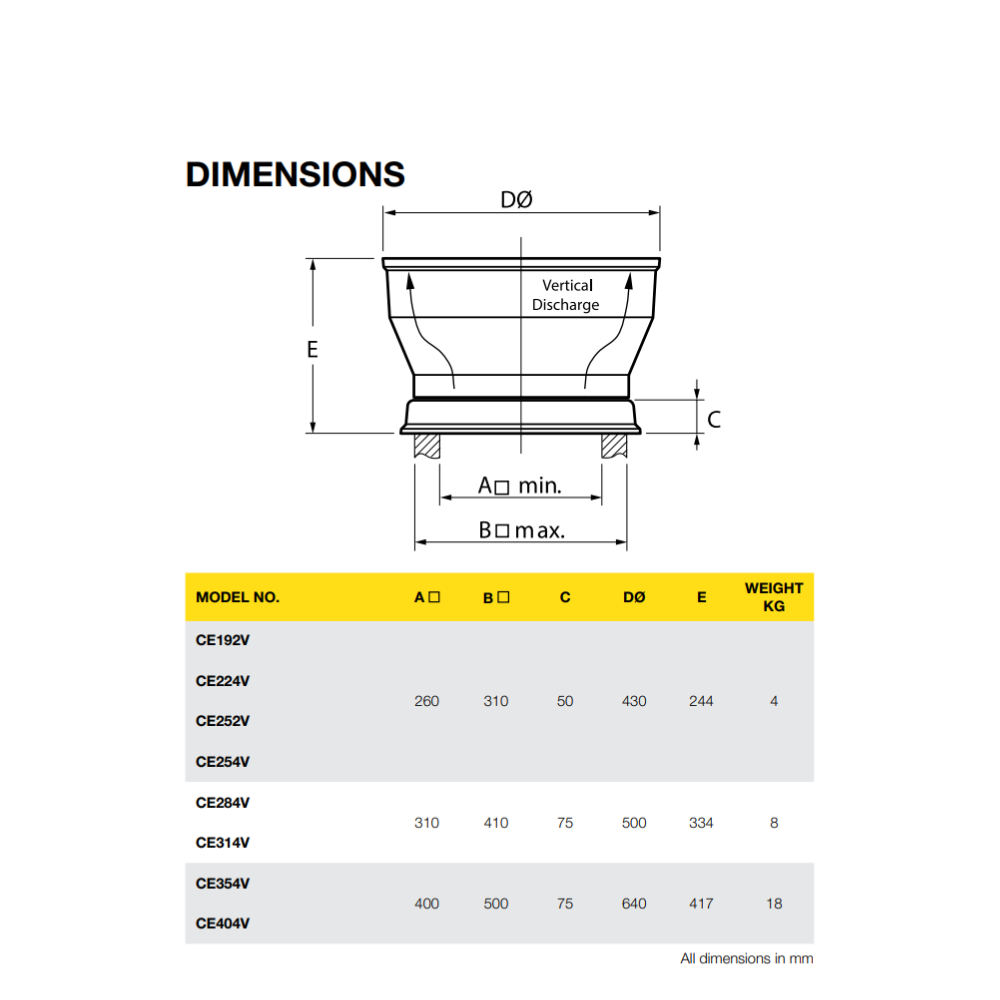

• Specification Sheet - Click Here
