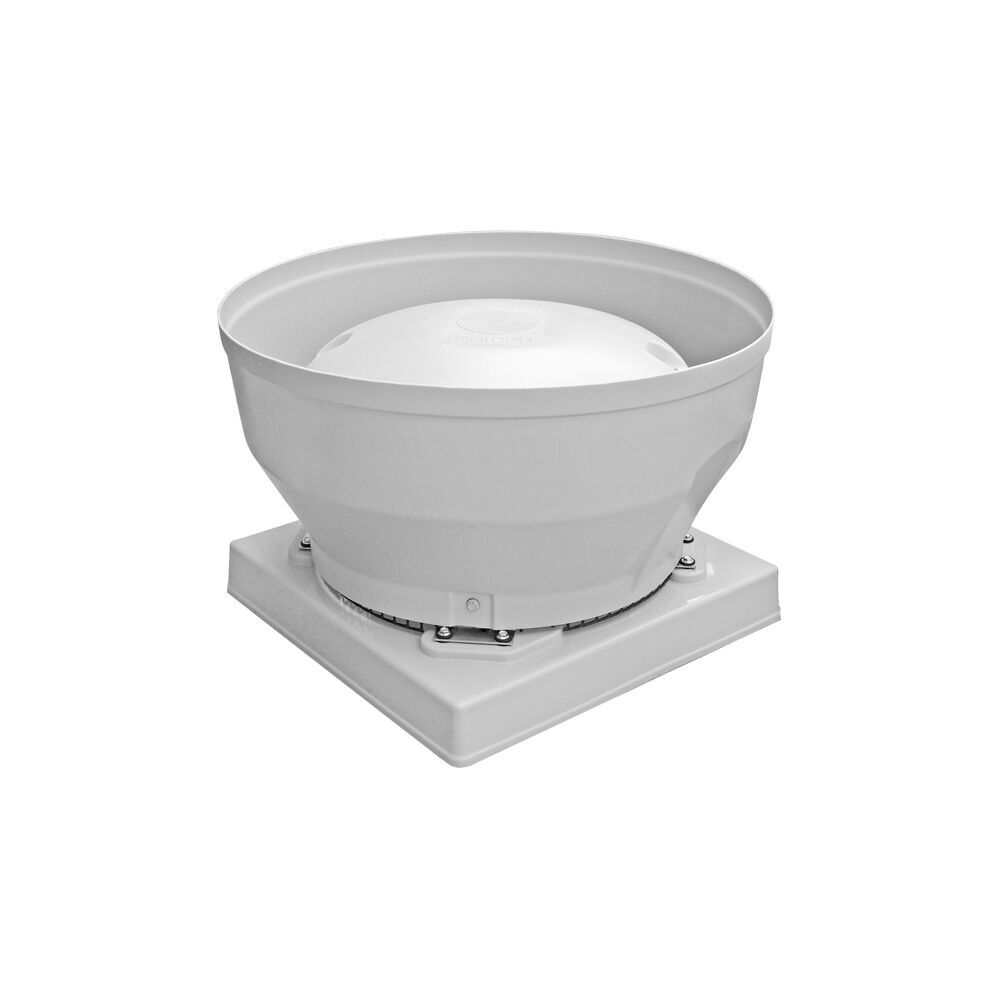

Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE224V | 220MM | 4 Pole | 1 Phase

Note: The Gamma Vertical Series Fans are designed for ducted exhaust applications in commercial environments such as kitchens and bathrooms. These units require professional installation by a licensed electrician and do not come with a pre-attached power cable.

The Fantech Gamma CE224V Roof Mounted Vertical Discharge Centrifugal Fan is engineered for commercial ducted exhaust applications, providing powerful and reliable ventilation performance. With a compact, low profile design, it is ideal for installations where space is limited while maintaining excellent airflow efficiency. The CE224V centrifugal roof unit features robust, lightweight construction with UV stabilised cowls, ensuring long-lasting durability in Australian conditions. This model can be mounted at angles up to 30 degrees and is suitable for single phase 240V supply. Perfect for commercial kitchens, industrial sites, and large-scale ventilation systems.

• Robust, lightweight construction - built for commercial environments.
• UV stabilised cowls - protection against harsh Australian sun.
• Compact, low profile design - suitable for restricted spaces.
• Compatible with ducted systems - versatile installation options.
• Can be mounted at up to 30° - flexible positioning for roofing layouts.
• Single phase 240V - simple electrical connection.
• Accessories available - run-on timers, speed controllers, and upstands.

• Model No: CE224V
• Air Flow: 594 M³/H
• L/Sec: 165
• Nominal Speed: 23 R/S
• Average dB(A) @ 3m: 38
• Power Consumption: 50W
• Amps: 0.26

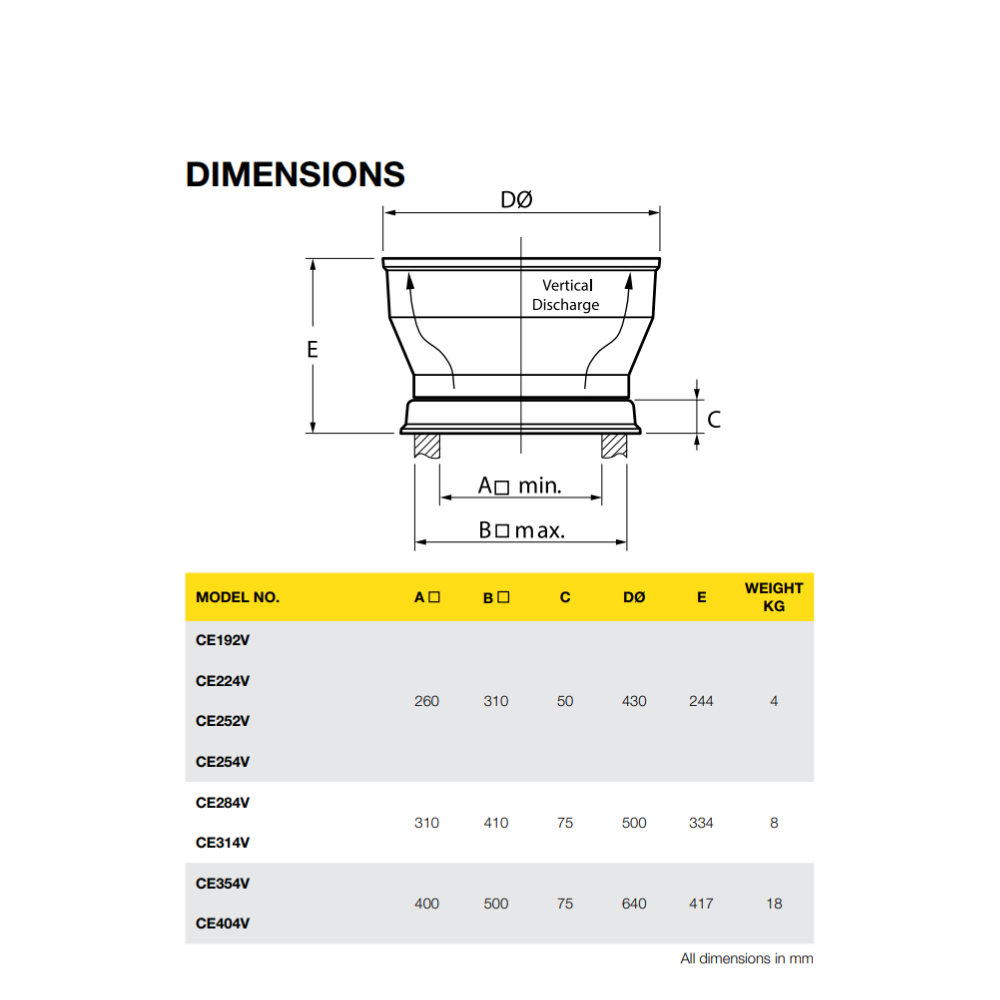

• Flange Size: 220MM (8.6" Inch)
• IP Rating: IP44
• Weight: 8 Kg

• [1] x Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE224V | 220MM | 4 Pole | 1 Phase

• Specification Sheet - Click Here
