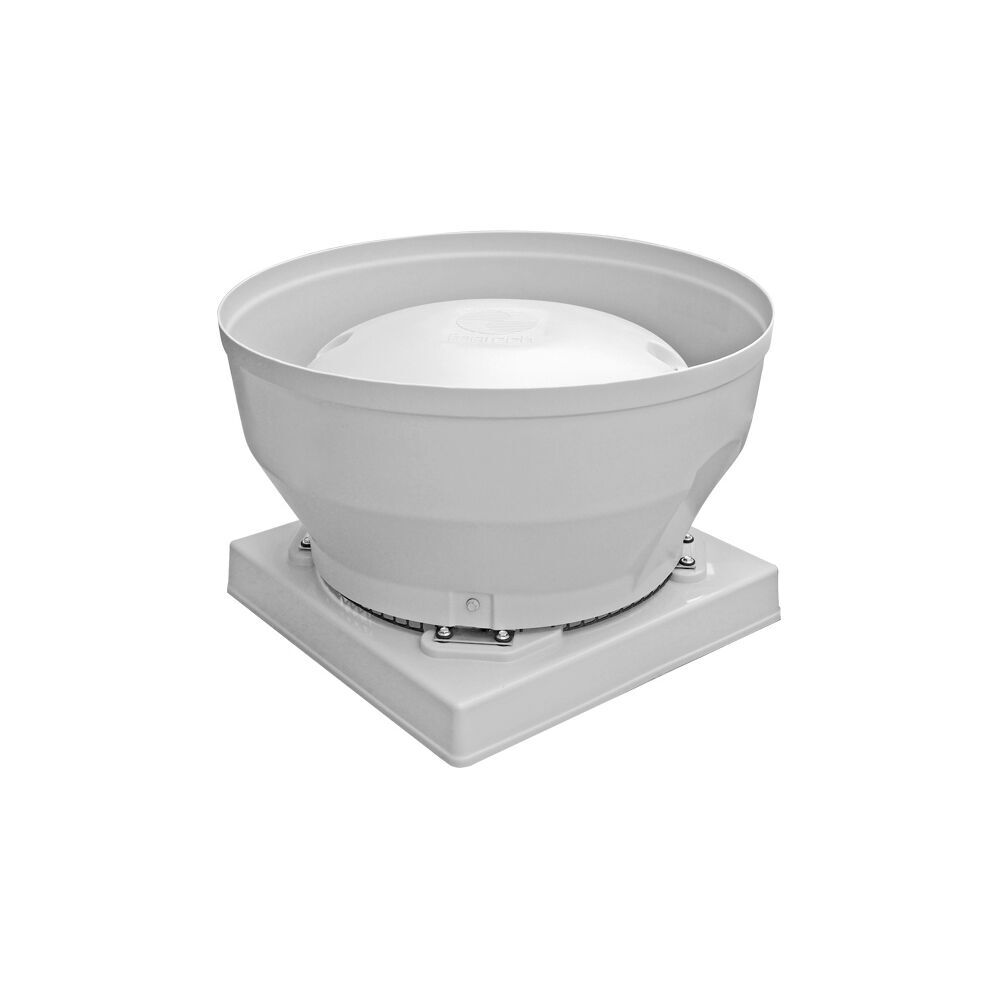

Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE252V | 250MM | 2 Pole | 1 Phase
Air Flow 972 M³/H | Power Consumption 190W | IP44
Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE2...
Product Overview
| Model Number | CE252V |
| Airflow (M³/H) | 972 |
| Duct Flange Size | 250MM (10" Inch) |
| Motor Type | AC |
| Exhaust Fan Power (W) | 190 |
| Noise Level | 56 dBA at 3M |
| IP Rating | IP44 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | Optional |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | Optional |
| Warranty | Fantech - 2 years warranty* |
Description
Description
Note: The Gamma Vertical Series Fans are designed for ducted exhaust applications in commercial environments such as kitchens and bathrooms. These units require professional installation by a licensed electrician and do not come with a pre-attached power cable.
The Fantech Gamma CE252V Roof Mounted Vertical Discharge Centrifugal Fan is designed for commercial ducted exhaust systems that require strong and reliable air extraction. With a high airflow of 972 M3/H, this model is ideal for medium to large commercial spaces such as kitchens, warehouses, and industrial facilities. Its compact low profile design allows easy installation even in restricted roof spaces, while the UV stabilised cowls provide long-term protection against harsh Australian conditions. The CE252V centrifugal roof fan features robust, lightweight construction and can be mounted at angles up to 30 degrees for flexible installation. Powered by a single phase 240V motor, this fan offers dependable performance and durability for demanding applications.
Features
Features
- High airflow performance - delivers up to 972 M³/H.
- Robust, lightweight construction - engineered for commercial use.
- UV stabilised cowls - resistant to harsh weather and sun exposure.
- Compact, low profile design - easy to install in confined roof spaces.
- Compatible with ducted systems - versatile exhaust applications.
- Mountable at up to 30° - flexible installation angles.
- Single phase 240V - simple electrical connection.
- Optional accessories - run-on timers, speed controllers, and upstands.
Specifications
Specifications
- Model No: CE252V
- Air Flow: 972 M³/H
- L/Sec: 270
- Nominal Speed: 42 R/S
- Average dB(A) @ 3m: 56
- Power Consumption: 190W
- Amps: 0.83
- Flange Size: 250MM (10" Inch)
- IP Rating: IP44
- Weight: 8 Kg
What's in the box
What's in the box
- [1] x Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE252V | 250MM | 2 Pole | 1 Phase
