Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE254V | 250MM | 4 Pole | 1 Phase

Note: The Gamma Vertical Series Fans are designed for ducted exhaust applications in commercial environments such as kitchens and bathrooms. These units require professional installation by a licensed electrician and do not come with a pre-attached power cable.

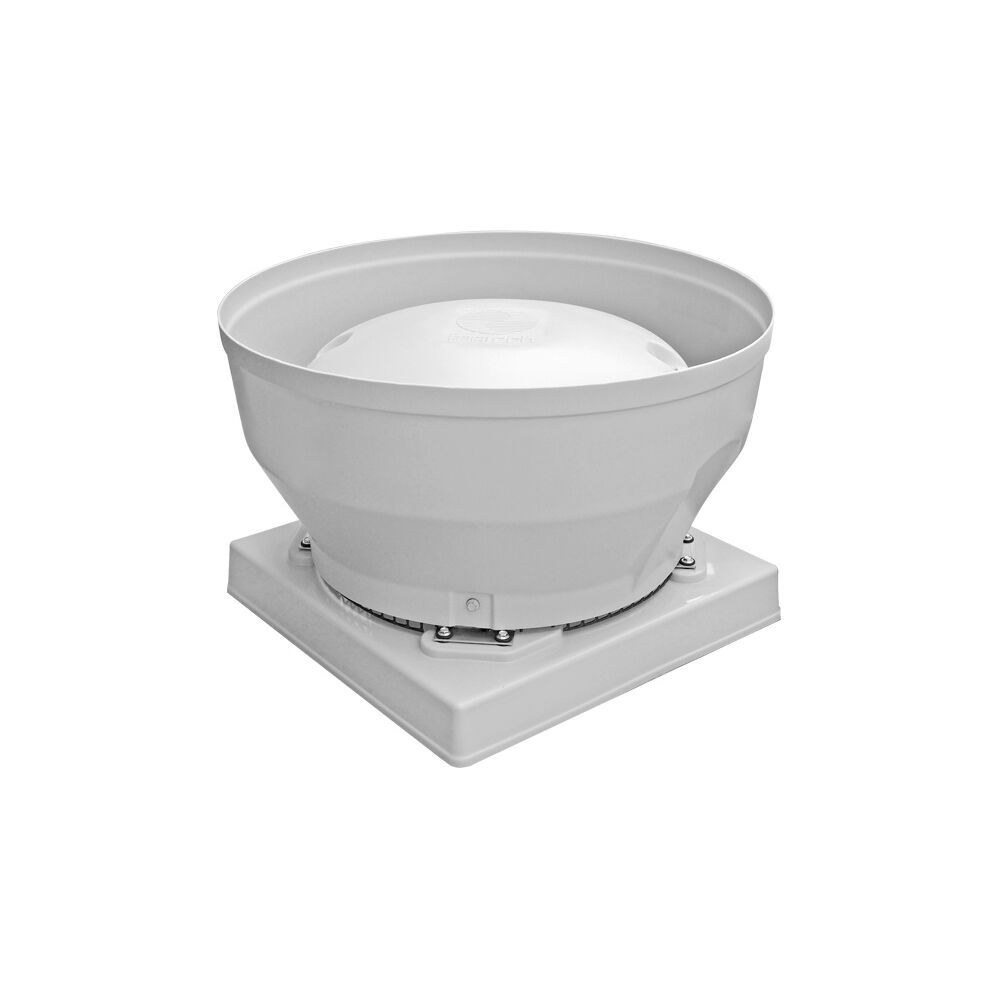

The Fantech Gamma CE254V Roof Mounted Vertical Discharge Centrifugal Fan is purpose-built for commercial ducted exhaust applications where durability and performance are key. Delivering an airflow of 893 M3/H, it is a reliable option for medium to large ventilation systems in commercial kitchens, warehouses, and industrial facilities. With a compact, low profile design, it fits easily into restricted roof spaces. The UV stabilised cowls ensure long service life under the harsh Australian sun. This centrifugal fan can be mounted at angles up to 30 degrees and runs on a single phase 240V power supply. The CE254V is designed for robust performance and long-lasting efficiency in demanding environments.

• Strong airflow capacity - delivers up to 893 M³/H.
• Robust, lightweight construction - suitable for tough commercial conditions.
• UV stabilised cowls - resistant to weather and sun damage.
• Compact, low profile design - ideal for limited roof space installations.
• Compatible with ducted systems - versatile and reliable ventilation solution.
• Mountable up to 30° - flexible installation across different roof types.
• Single phase 240V - easy electrical connection for quick setup.
• Optional accessories - run-on timers, speed controllers, and upstands available.

• Model No: CE254V
• Air Flow: 893 M³/H
• L/Sec: 248
• Nominal Speed: 23 R/S
• Average dB(A) @ 3m: 41
• Power Consumption: 80W
• Amps: 0.37

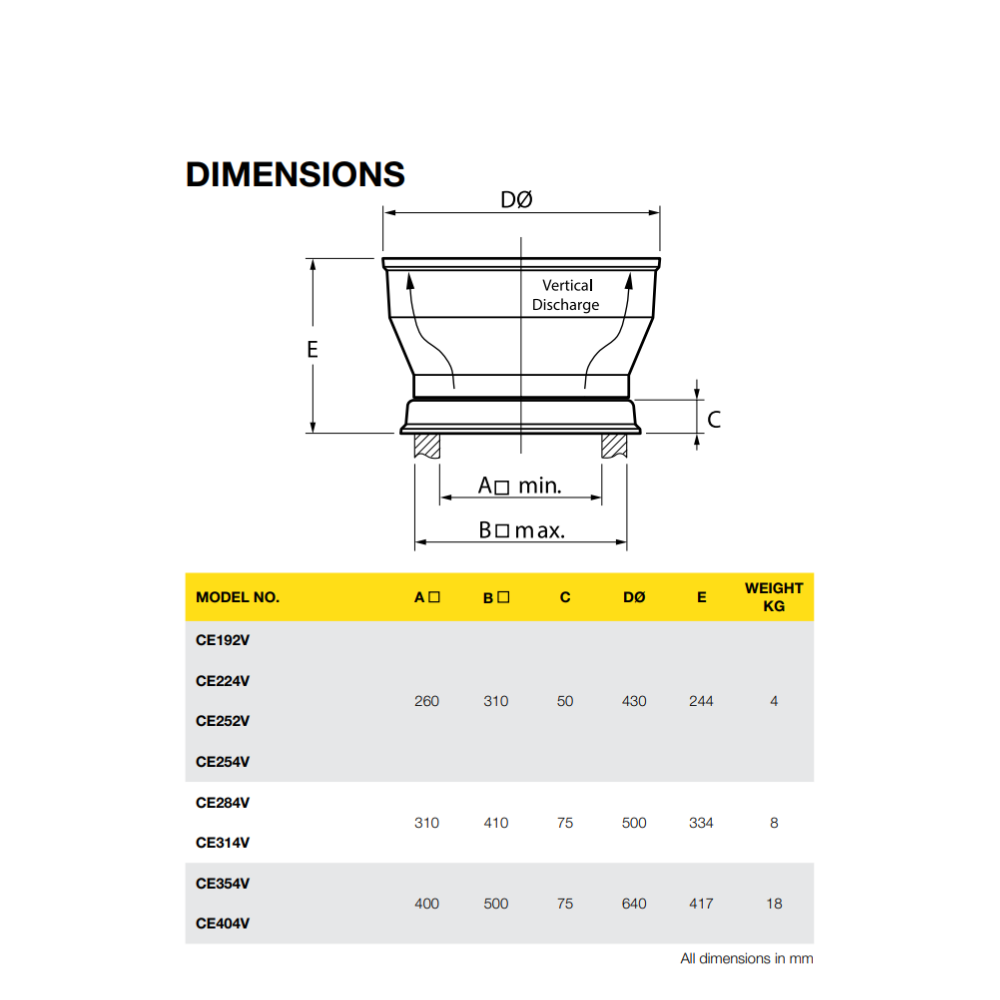

• Flange Size: 250MM (10" Inch)
• IP Rating: IP44
• Weight: 8 Kg

• [1] x Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE254V | 250MM | 4 Pole | 1 Phase
