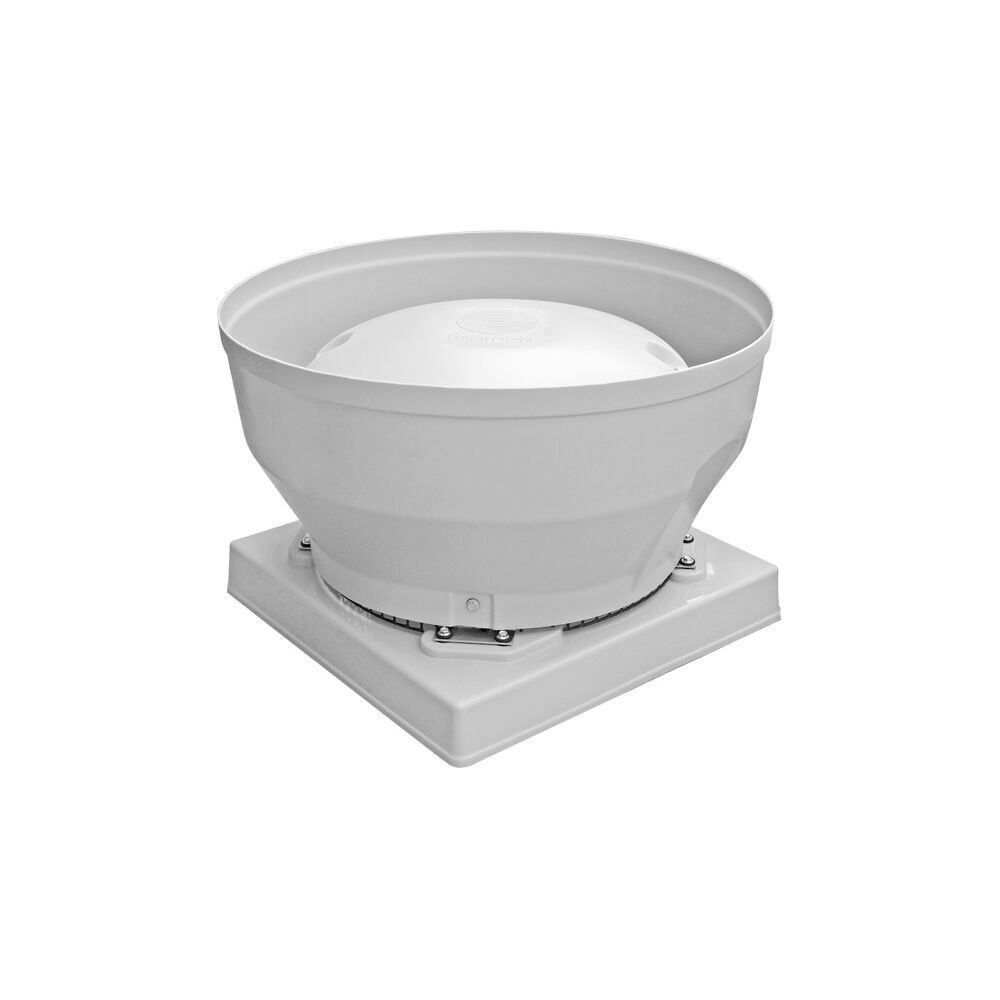

Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE314V | 310MM | 4 Pole | 1 Phase

Note: The Gamma Vertical Series Fans are designed for ducted exhaust applications in commercial environments such as kitchens and bathrooms. These units require professional installation by a licensed electrician and do not come with a pre-attached power cable.

The Fantech Gamma CE314V Roof Mounted Vertical Discharge Centrifugal Fan is a powerful and efficient solution for commercial ducted exhaust systems. With an airflow capacity of 1314 M3/H, it is well suited for larger installations including commercial kitchens, warehouses, and industrial facilities. From the CE284V model and upwards, the Gamma series comes with bird mesh protection, ensuring birds and vermin cannot enter the ductwork. The UV stabilised cowls offer excellent weather resistance, while the compact low profile design makes it ideal for installations where space is limited. Built with robust yet lightweight construction, the CE314V runs on a single phase 240V supply and can be mounted at angles up to 30 degrees for installation flexibility.

• High airflow capacity - delivers up to 1314 M³/H.
• Bird mesh protection - prevents birds and vermin entering ducting.
• Robust, lightweight build - engineered for heavy-duty commercial use.
• UV stabilised cowls - protects against sun damage and weather.
• Compact, low profile design - perfect for tight roof spaces.
• Can be used in ducted systems - versatile ventilation solution.
• Mountable up to 30° - flexible installation on various roof types.
• Single phase 240V - straightforward power connection.
• Optional accessories available - speed controllers, run-on timers, and upstands.

• Model No: CE314V
• Air Flow: 1314 M³/H
• L/Sec: 365
• Nominal Speed: 23 R/S
• Average dB(A) @ 3m: 47
• Power Consumption: 150W
• Amps: 0.66

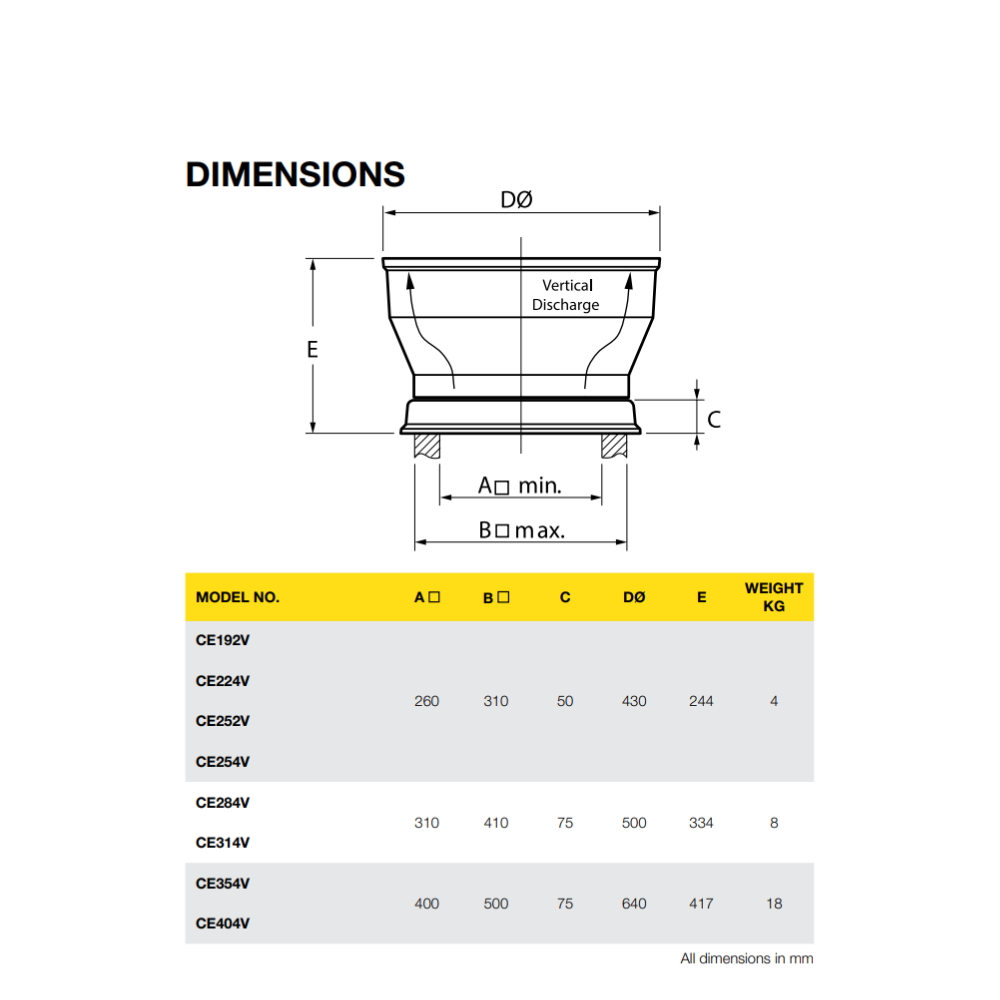

• Flange Size: 315MM (12" Inch)
• IP Rating: IP44
• Weight: 18 Kg

• [1] x Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE314V | 310MM | 4 Pole | 1 Phase

• Specification Sheet - Click Here
