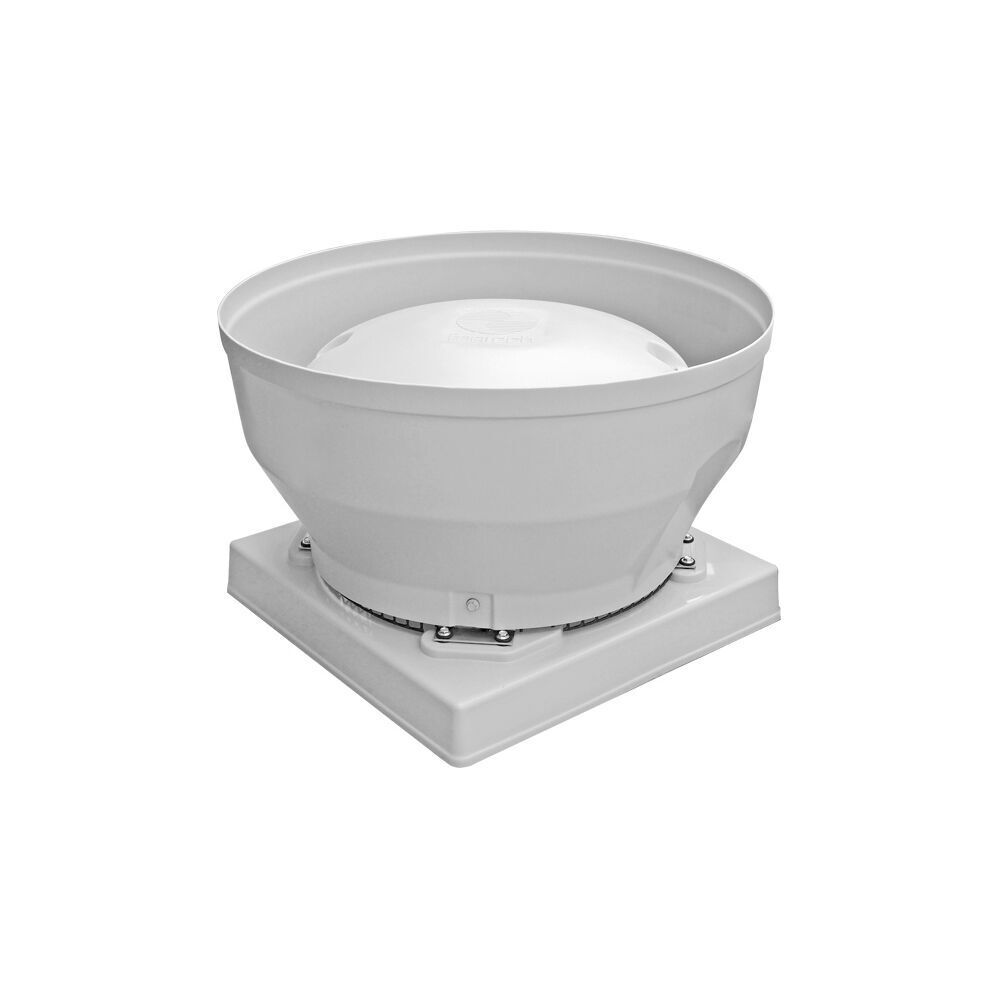

Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE404V | 400 MM | 4 Pole | 1 Phase

Note: The Gamma Vertical Series Fans are designed for ducted exhaust applications in commercial environments such as kitchens and bathrooms. These units require professional installation by a licensed electrician and do not come with a pre-attached power cable.

The Fantech Gamma CE404V Roof Mounted Vertical Discharge Centrifugal Fan is the most powerful unit in the Gamma series, delivering an impressive 3460 M3/H airflow. Designed for large commercial and industrial ducted exhaust systems, it provides reliable, heavy-duty performance in demanding environments. From the CE284V model upwards, the Gamma range includes bird mesh protection, preventing vermin and birds from entering the ductwork. The UV stabilised cowls ensure resilience against Australias harsh weather, while the compact, low profile design makes installation easier on rooftops. Built tough with lightweight construction, the CE404V can be mounted at angles up to 30 degrees and operates on a single phase 240V motor for convenience and reliability.

• Massive airflow performance - delivers up to 3460 M³/H.
• Bird mesh protection - prevents entry of birds and vermin into ductwork.
• Robust, lightweight construction - durable in demanding commercial conditions.
• UV stabilised cowls - weather and sun resistant.
• Compact, low profile design - suitable for rooftop installations with limited space.
• Compatible with ducted systems - versatile use in large-scale ventilation projects.
• Mountable at up to 30° - flexible installation on varied roof structures.
• Single phase 240V - easy electrical connection.
• Optional accessories - includes speed controllers, run-on timers, and upstands.

• Model No: CE404V
• Air Flow: 3460 M³/H
• L/Sec: 961
• Nominal Speed: 23 R/S
• Average dB(A) @ 3m: 56
• Power Consumption: 490W
• Amps: 2.20

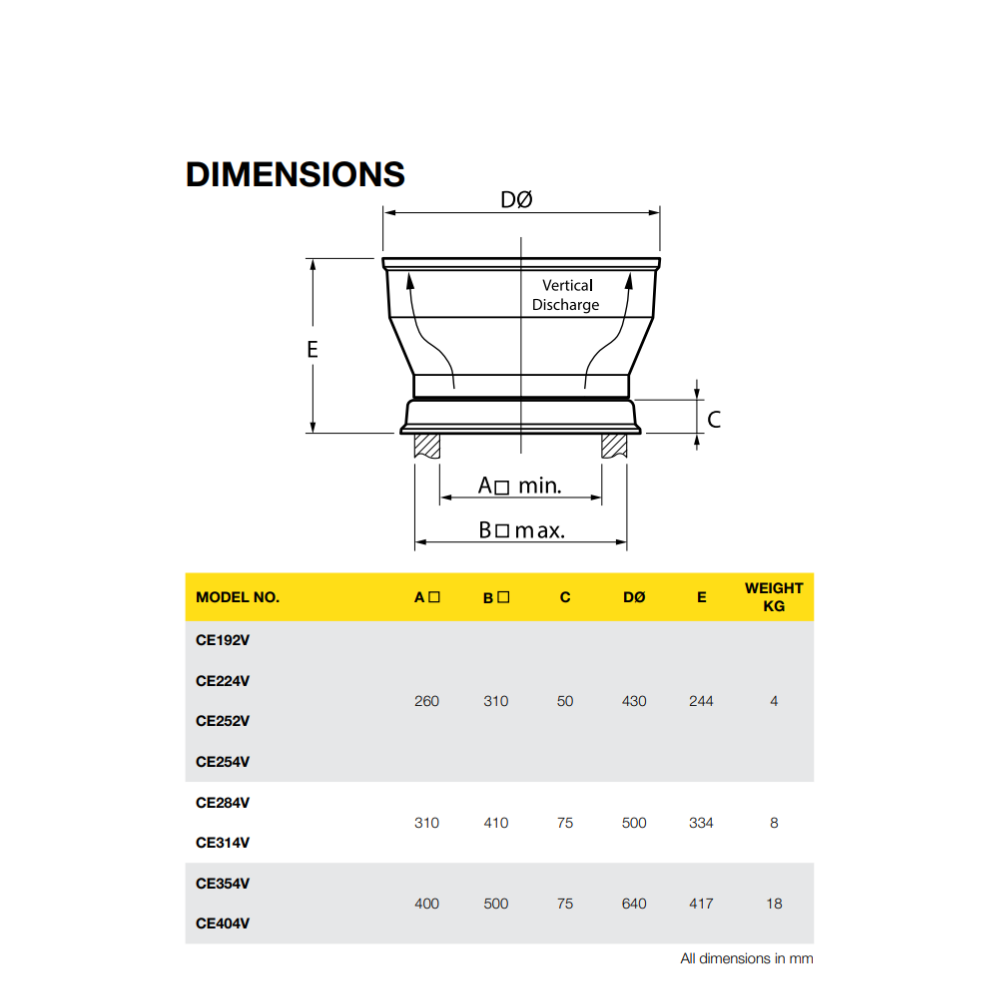

• Flange Size: 400MM (16" Inch)
• IP Rating: IP44
• Weight: 18 Kg

• [1] x Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE404V | 400 MM | 4 Pole | 1 Phase

• Product Manual - Click Here
