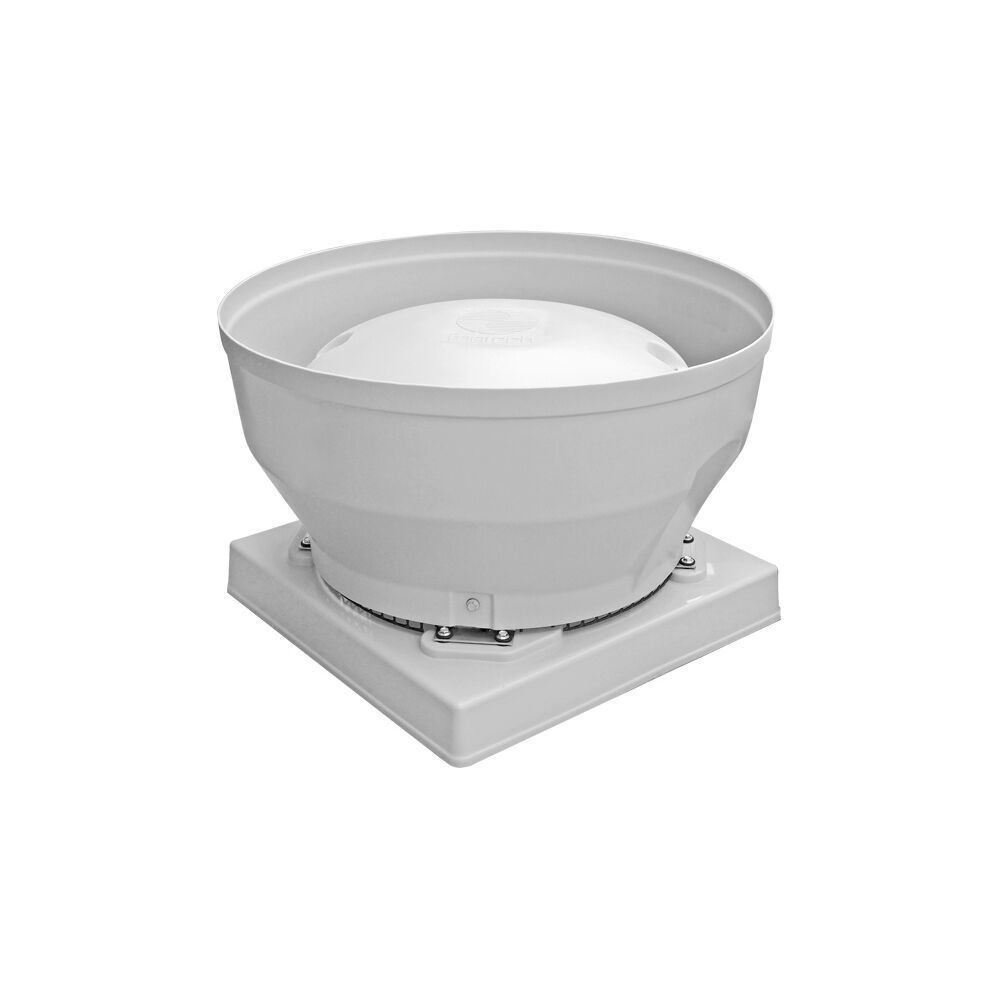

Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE284V | 280MM | 4 Pole | 1 Phase
Air Flow 1080 M³/H | Power Consumption 90W | IP44
Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE2...
Product Overview
| Model Number | CE284V |
| Airflow (M³/H) | 1080 |
| Duct Flange Size | 280MM (11" Inch) |
| Motor Type | AC |
| Exhaust Fan Power (W) | 90 |
| Noise Level | 44 dBA at 3M |
| IP Rating | IP44 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | Optional |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | Optional |
| Warranty | Fantech - 2 years warranty* |
Description
Description
Note: The Gamma Vertical Series Fans are designed for ducted exhaust applications in commercial environments such as kitchens and bathrooms. These units require professional installation by a licensed electrician and do not come with a pre-attached power cable.
The Fantech Gamma CE284V Roof Mounted Vertical Discharge Centrifugal Fan is a high-performance solution for commercial ducted exhaust systems requiring strong airflow and durability. Delivering up to 1080 M3/H, this fan is perfect for larger installations such as commercial kitchens, warehouses, and industrial facilities. From the CE284V model upwards, the Gamma range includes bird mesh protection, preventing birds and vermin from entering ductwork or buildings. Its compact, low profile design ensures easy roof installation even in tight spaces, while UV stabilised cowls provide protection against Australias harsh weather. Built tough with lightweight construction, the CE284V operates on a single phase 240V power supply and can be mounted at angles up to 30 degrees.
Features
Features
- High airflow performance - delivers up to 1080 M³/H.
- Bird mesh protection - prevents birds and vermin from entering ducting.
- Robust, lightweight construction - designed for demanding commercial use.
- UV stabilised cowls - long-lasting resistance to sun and weather.
- Compact, low profile design - suitable for restricted roof installations.
- Compatible with ducted systems - versatile applications.
- Mountable at up to 30° - flexible positioning for different roof types.
- Single phase 240V - easy electrical connection.
- Optional accessories - run-on timers, speed controllers, and upstands available.
Specifications
Specifications
- Model No: CE284V
- Air Flow: 1080 M³/H
- L/Sec: 300
- Nominal Speed: 23 R/S
- Average dB(A) @ 3m: 44
- Power Consumption: 90W
- Amps: 0.40
- Flange Size: 280MM (11" Inch)
- IP Rating: IP44
- Weight: 8 Kg
What's in the box
What's in the box
- [1] x Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE284V | 280MM | 4 Pole | 1 Phase
