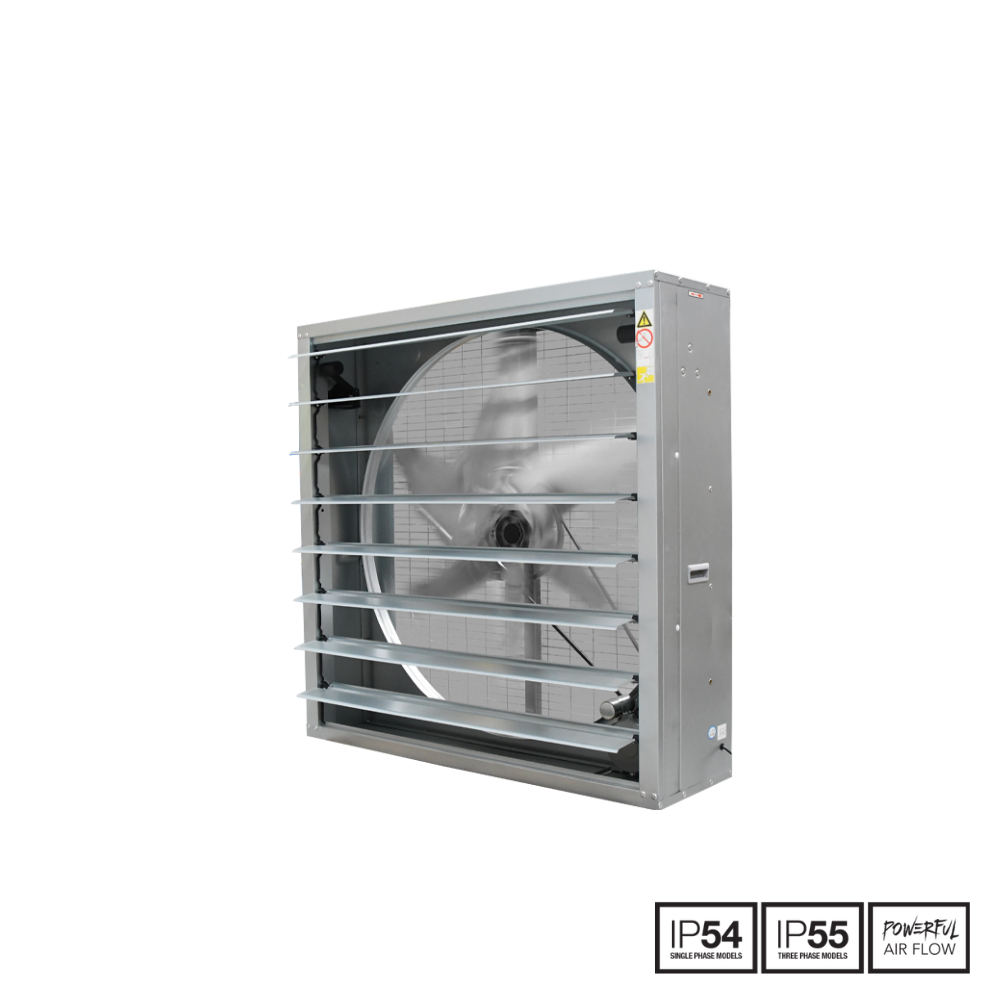

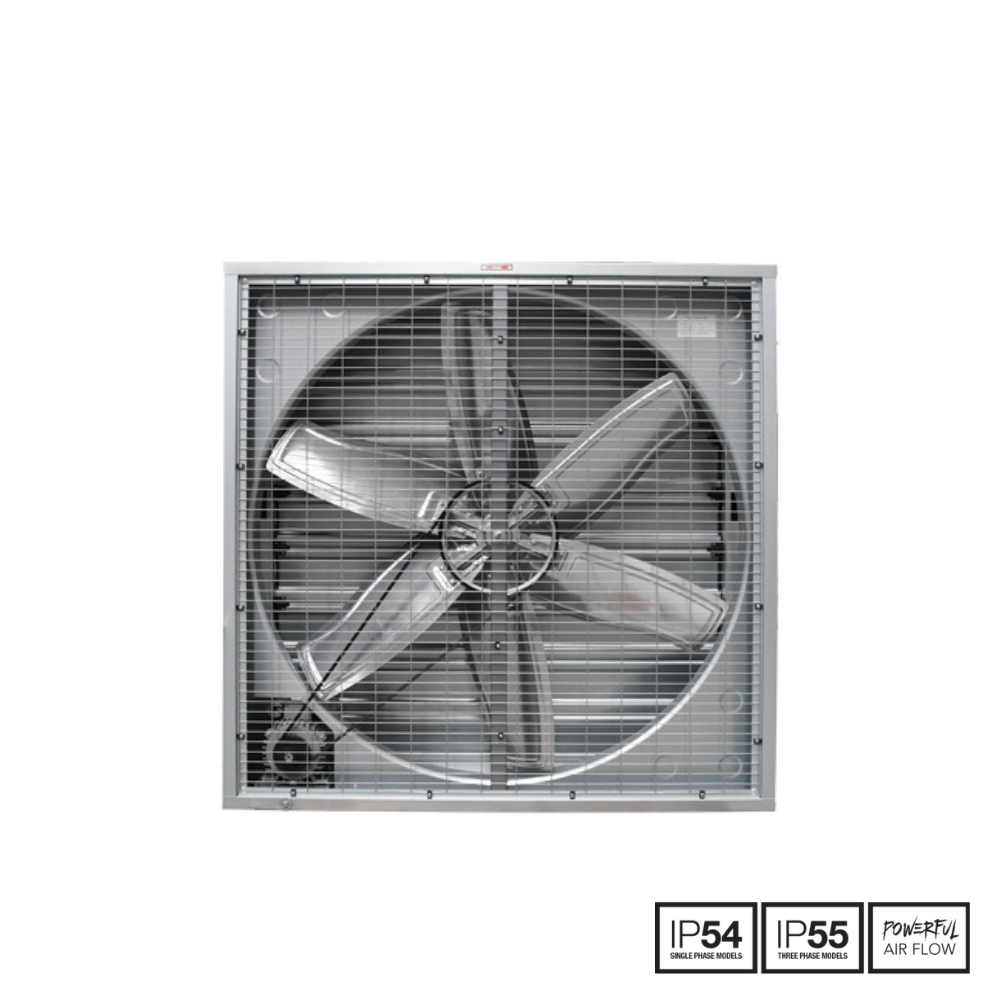

Fantech High Volume Galvanised Steel Wall Fan - HVD100 | 1000MM | 3 Phase | w/ Backdraft Dampers

The Fantech HVD100 High Volume Wall Fan is a heavy-duty industrial ventilation solution engineered to provide exceptional airflow performance in large commercial, industrial, and agricultural buildings. Featuring a large 1000mm fan diameter and a powerful 32,000m3/hr airflow capacity, this wall-mounted fan effectively removes heat, humidity, fumes, dust, and stale air while maintaining a comfortable indoor environment.

Designed for applications where high air volumes are required at low pressure, the HVD100 is ideal for warehouses, manufacturing facilities, workshops, poultry sheds, livestock buildings, and recreation halls. Its robust galvanised steel construction delivers long-term durability, while the integrated self-closing backdraft dampers prevent rain, wind, and debris from entering the building when the fan is not operating.

Powered by a reliable 0.75kW three-phase motor, the fan operates efficiently while maintaining a low noise level of just 50dB(A) at 3 metres. Additional installation-friendly features including grab handles, nutserts, safety guards, and an adjustable motor plate make maintenance and setup straightforward.

For facilities requiring dependable, high-capacity ventilation, the Fantech HVD100 High Volume Wall Fan offers an effective and energy-efficient solution designed for demanding Australian conditions.

• High Airflow Capacity - Delivers up to 32,000m³/hr airflow for effective large-area ventilation.
• Industrial Grade Construction - Durable galvanised steel housing designed for long-term commercial use.

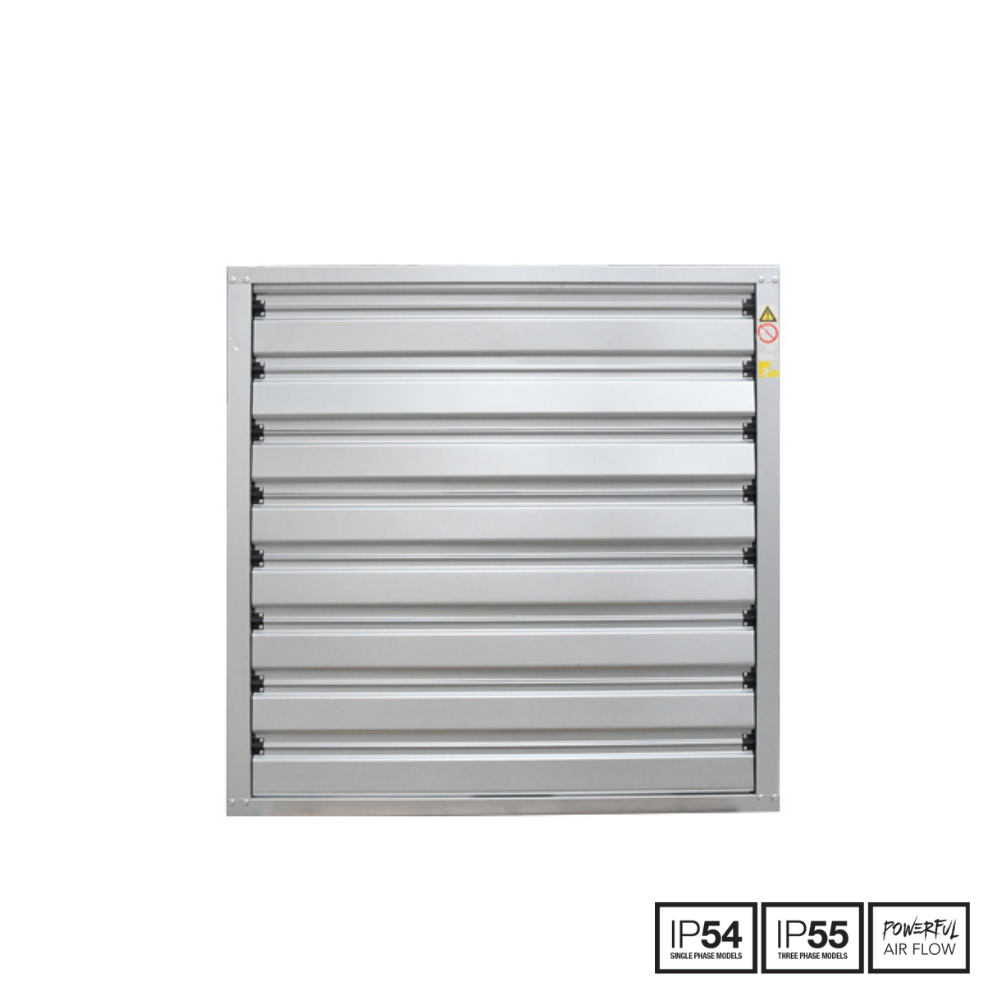

• Heavy Duty Backdraft Dampers - Self-closing shutters prevent weather ingress when the fan is switched off.
• Powerful Three-Phase Motor - Reliable 0.75kW motor suitable for continuous operation.
• Low Noise Performance - Operates at only 50dB(A) at 3 metres.
• Safety Guards Included - Factory-fitted guards provide additional protection.
• IP55 Rated Motor - Designed to withstand demanding industrial environments.
• Adjustable Motor Plate - Simplifies belt adjustment and routine maintenance.
• Easy Installation Design - Equipped with grab handles and nutserts for convenient mounting.
• Versatile Applications - Suitable for warehouses, workshops, poultry sheds, factories, and recreation halls.

• [1] x Fantech High Volume Galvanised Steel Wall Fan - HVD100 | 1000MM | 3 Phase | w/ Backdraft Dampers
