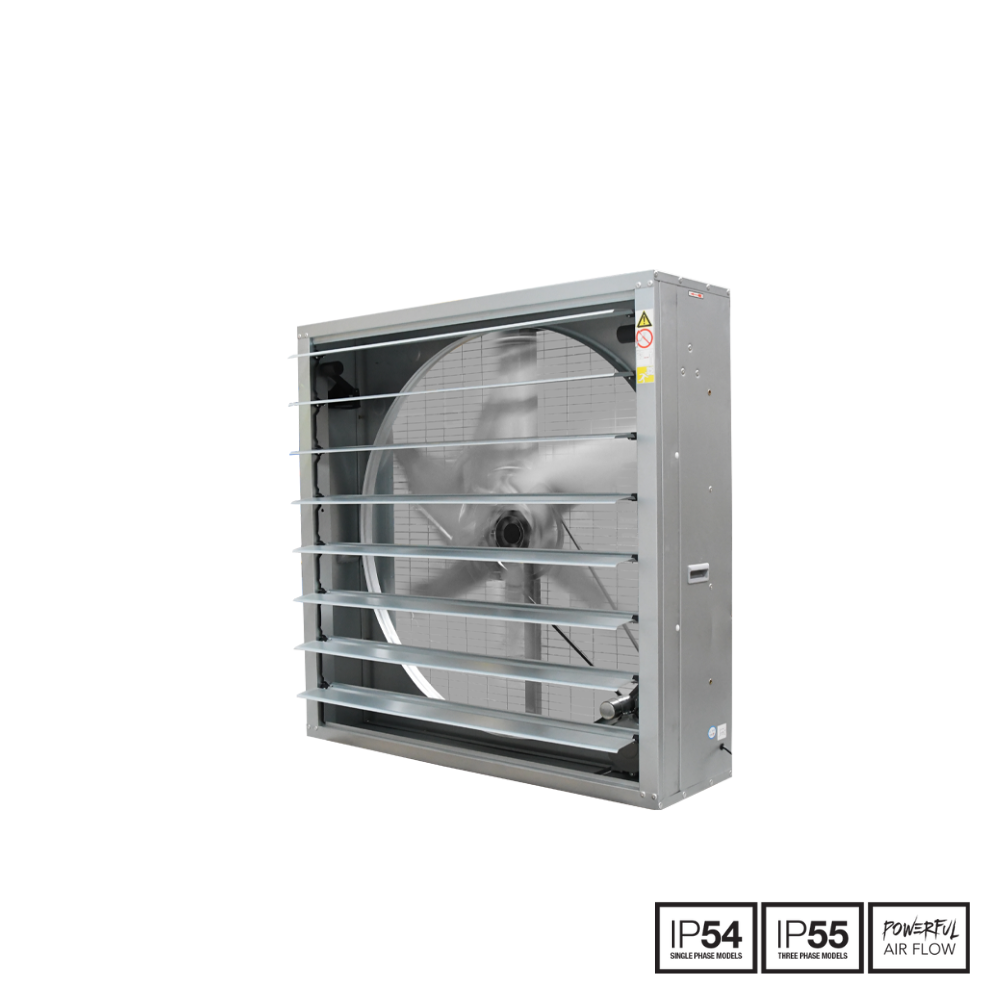

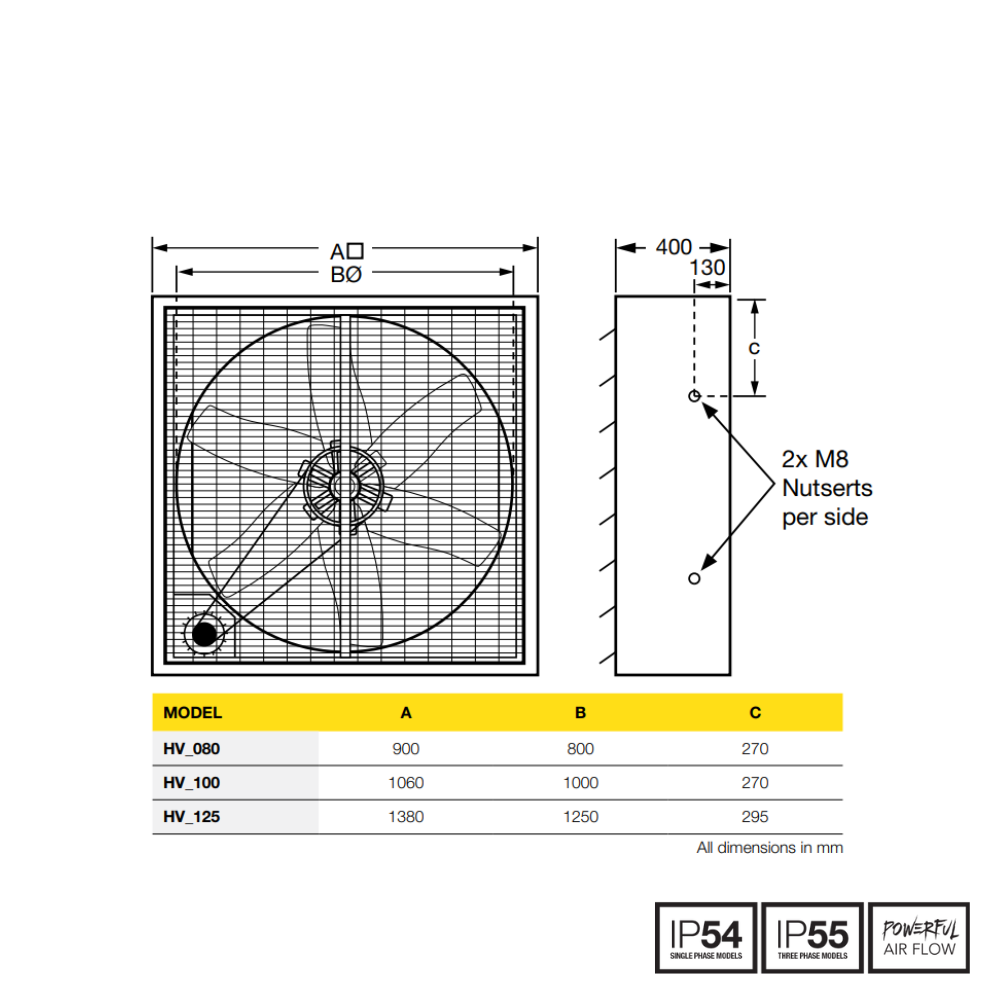

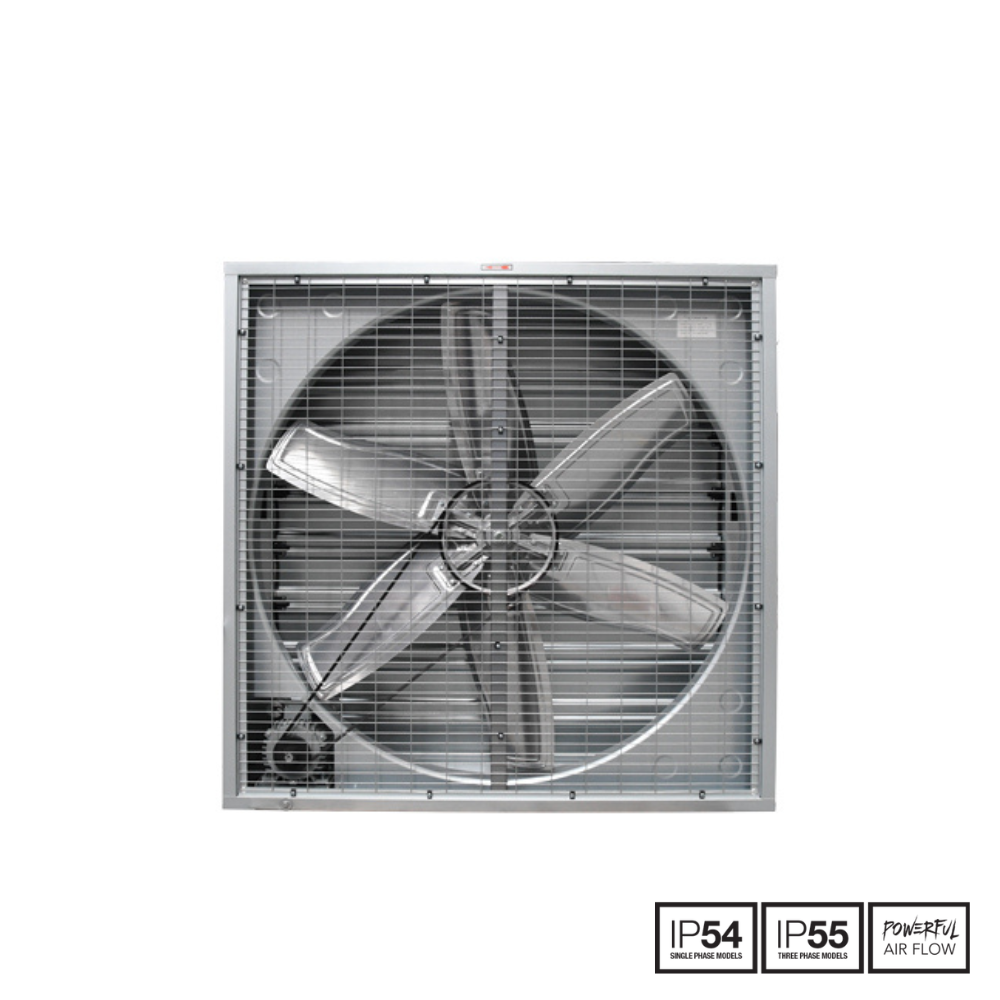

Fantech High Volume Galvanised Steel Wall Fan - HVD125 | 1250MM | 3 Phase | w/ Backdraft Dampers

The Fantech HVD125 High Volume Wall Fan is the largest model in the Fantech High Volume Wall Fan range, engineered to provide exceptional ventilation performance in large commercial, industrial, and agricultural facilities. With a massive 44,500m3/hr airflow capacity and a 1250mm fan diameter, this high-capacity wall-mounted fan is ideal for removing heat, humidity, dust, fumes, and stale air from expansive indoor environments.

Designed for applications where large volumes of air are required at low pressure, the HVD125 is perfectly suited for warehouses, manufacturing plants, workshops, poultry sheds, livestock facilities, processing plants, and recreation halls. Its heavy-duty galvanised steel construction provides outstanding durability, while the integrated self-closing mechanical backdraft dampers prevent rain, wind, and debris from entering the building when the fan is not operating.

Powered by a reliable 1.1kW three-phase motor, the HVD125 delivers powerful airflow performance while maintaining efficient operation. The fan incorporates practical installation and maintenance features including safety guards, grab handles, nutserts, and an adjustable motor plate for simplified belt servicing.

For facilities requiring maximum airflow performance and dependable operation, the Fantech HVD125 High Volume Wall Fan provides a professional-grade ventilation solution designed for demanding Australian commercial and industrial environments.

• Maximum Airflow Performance - Delivers up to 44,500m³/hr airflow for large-scale ventilation requirements.
• Large 1250mm Fan Diameter - Designed to move substantial volumes of air efficiently.
• Heavy Duty Galvanised Steel Construction - Built for long-term durability in demanding environments.

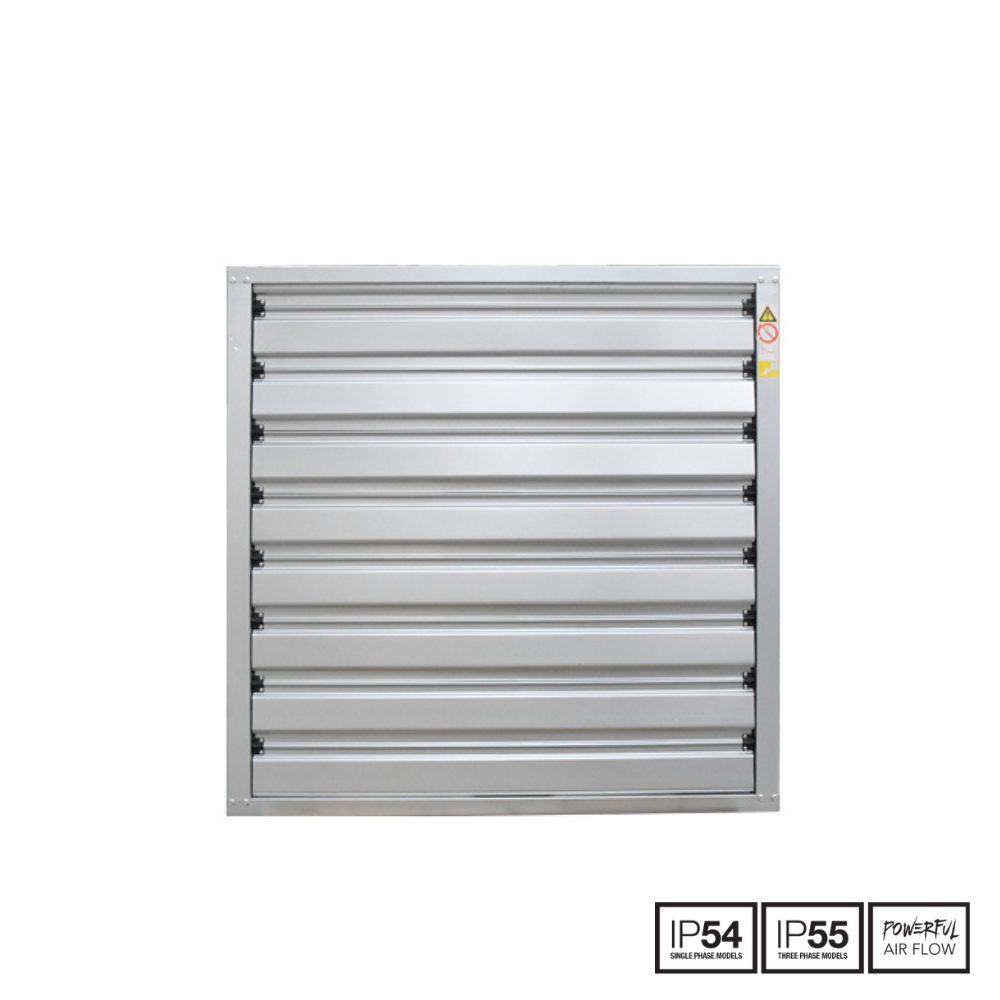

• Self-Closing Backdraft Dampers - Prevents weather ingress when the fan is not operating.
• Powerful Three-Phase Motor - Reliable 1.1kW motor suitable for continuous commercial and industrial use.
• Safety Guards Included - Factory-fitted safety guards provide enhanced operator protection.
• IP55 Rated Protection - Suitable for harsh industrial and agricultural operating conditions.
• Adjustable Motor Plate - Simplifies belt tension adjustment and routine maintenance.
• Easy Installation Design - Integrated grab handles and nutserts assist with installation.
• Versatile Industrial Applications - Ideal for warehouses, factories, workshops, poultry sheds, and recreation centres.

• [1] x Fantech High Volume Galvanised Steel Wall Fan - HVD125 | 1250MM | 3 Phase | w/ Backdraft Dampers
