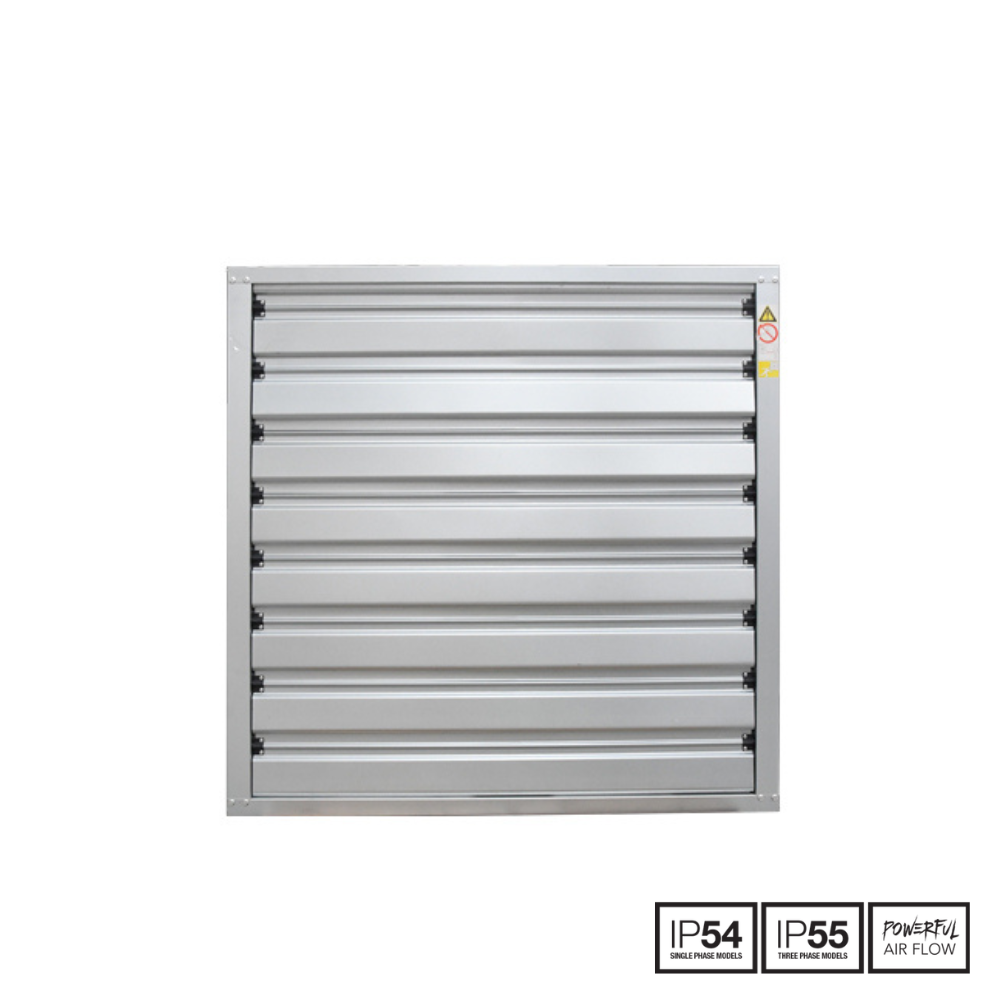

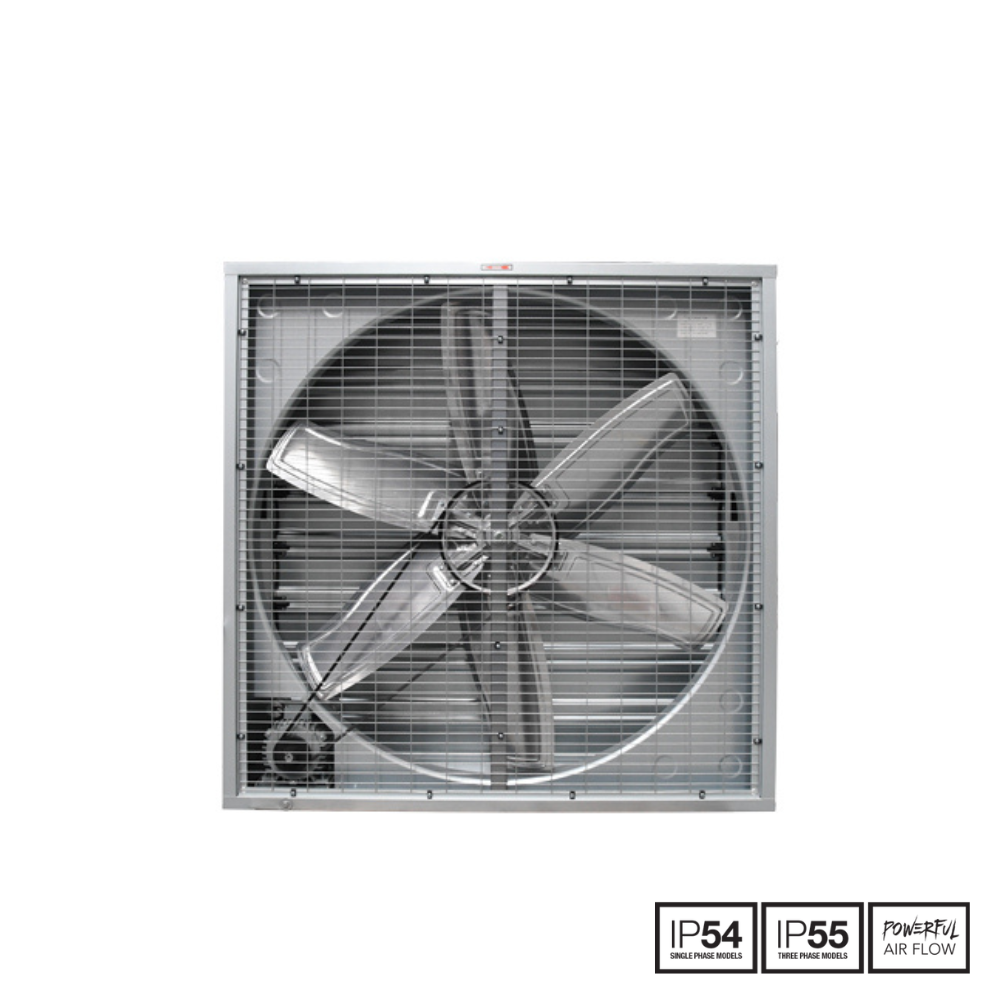

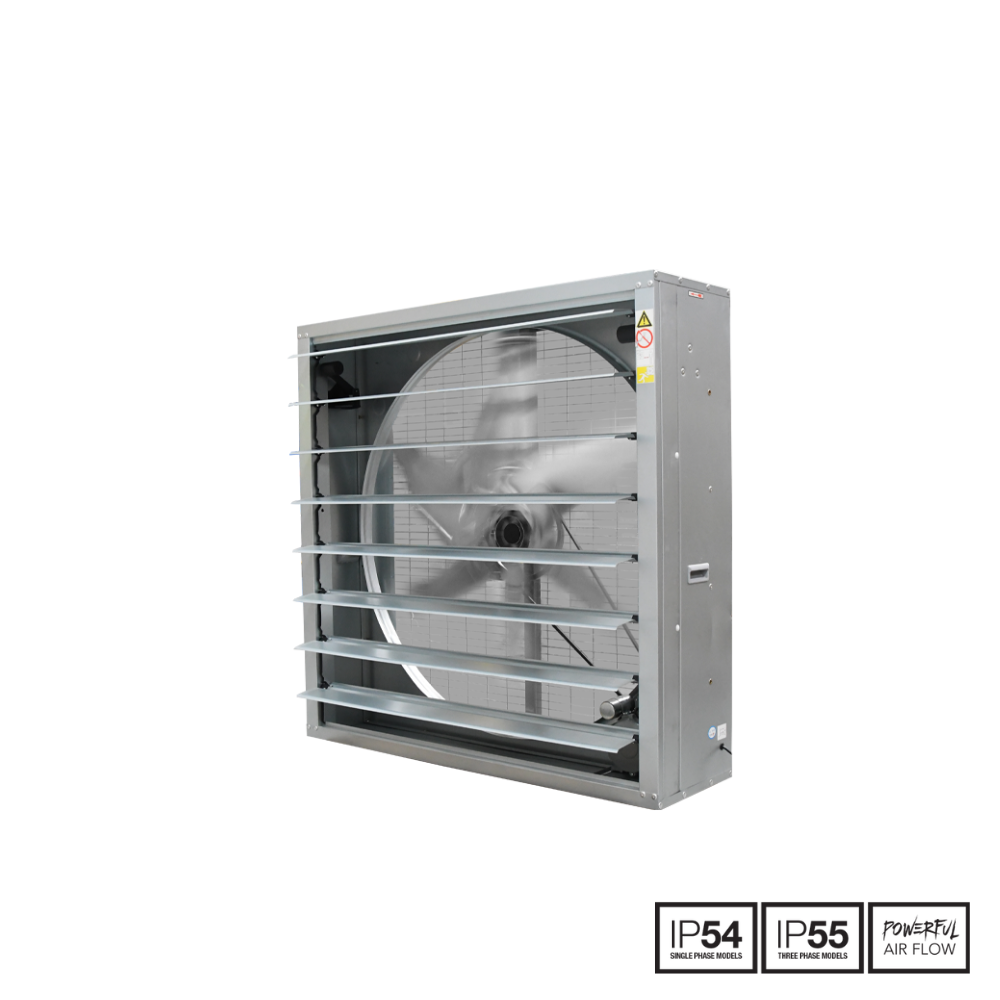

Fantech High Volume Galvanised Steel Wall Fan - HVE080 | 800MM | 1 Phase | w/ Backdraft Dampers
Airflow 16000 M³/H | Power Consumption 0.37 KW | IP54
Product Overview
| Model Number | HVE080 |
| Airflow (M³/H) | 16000 |
| Motor Type | Belt Drive Fan |
| Exhaust Fan Power (W) | 370 |
| Noise Level | 49 dBA at 3M |
| IP Rating | IP54 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Backdraft Damper | Yes |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | No |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
Description
Description
The Fantech HVE080 High Volume Wall Fan is a powerful and reliable ventilation solution designed to provide high-volume air movement in large commercial, industrial, and agricultural environments. Delivering up to 16,000m3/hr airflow, this 800mm wall-mounted exhaust fan is ideal for removing heat, humidity, fumes, dust, and stale air from warehouses, workshops, poultry sheds, and recreation facilities.
Constructed from durable galvanised steel, the HVE080 is engineered to withstand demanding operating conditions while maintaining long-term performance. The integrated self-closing mechanical backdraft dampers help prevent weather ingress when the fan is not operating, protecting the building from rain, wind, and debris.
Powered by a dependable 240V single-phase 0.37kW motor, the HVE080 provides an excellent balance of airflow performance and energy efficiency. Operating at a low noise level of just 49dB(A) at 3 metres, it delivers effective ventilation without excessive disruption to the workplace.
With safety guards, grab handles, nutserts, and an adjustable motor plate for simplified maintenance, the Fantech HVE080 High Volume Wall Fan offers a practical and professional ventilation solution for Australian commercial and agricultural facilities.
Features
Features
- High Volume Airflow - Delivers up to 16,000m³/hr airflow for effective ventilation of large spaces.
- Single Phase Operation - Operates on standard 240V power, making installation simple and convenient.
- Heavy Duty Galvanised Steel Construction - Built for long-term durability in commercial and agricultural environments.
- Self-Closing Backdraft Dampers - Prevents weather ingress when the fan is switched off.
- Low Noise Performance - Operates at only 49dB(A) at 3 metres.
- IP54 Rated Motor - Designed for reliable operation in demanding environments.
- Safety Guards Included - Factory-fitted guards enhance operator safety.
- Adjustable Motor Plate - Simplifies belt maintenance and adjustment.
- Easy Installation - Equipped with grab handles and nutserts for convenient mounting.
- Versatile Applications - Suitable for warehouses, workshops, poultry sheds, livestock facilities, and recreation halls.
Specifications
Specifications
| Specification | HVE080 |
|---|---|
| Model | HVE080 |
| Fan Size | 800 mm |
| Voltage | 240 V |
| Phase | Single Phase |
| Frequency | 50 Hz |
| Motor Power | 0.37 kW |
| Airflow | 16,000 m³/hr |
| Noise Level | 49 dB(A) @ 3m |
| Fan Speed | 450 RPM |
| Weight | 42 kg |
| IP Rating | IP54 |
| Construction | Galvanised Steel |
| Backdraft Dampers | Self-Closing Mechanical Shutters |
| Safety Guards | Included |
What's in the box
What's in the box
- [1] x Fantech High Volume Galvanised Steel Wall Fan - HVE080 | 800MM | 1 Phase | w/ Backdraft Dampers
