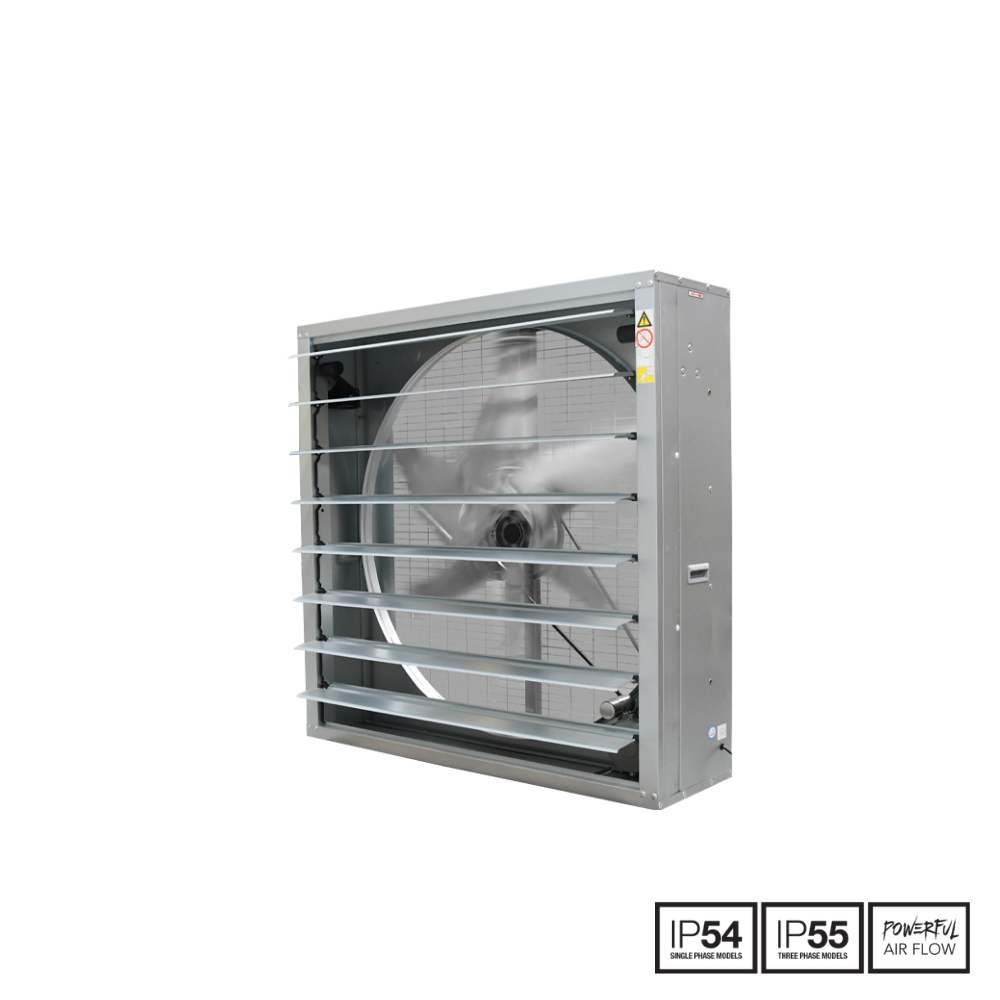

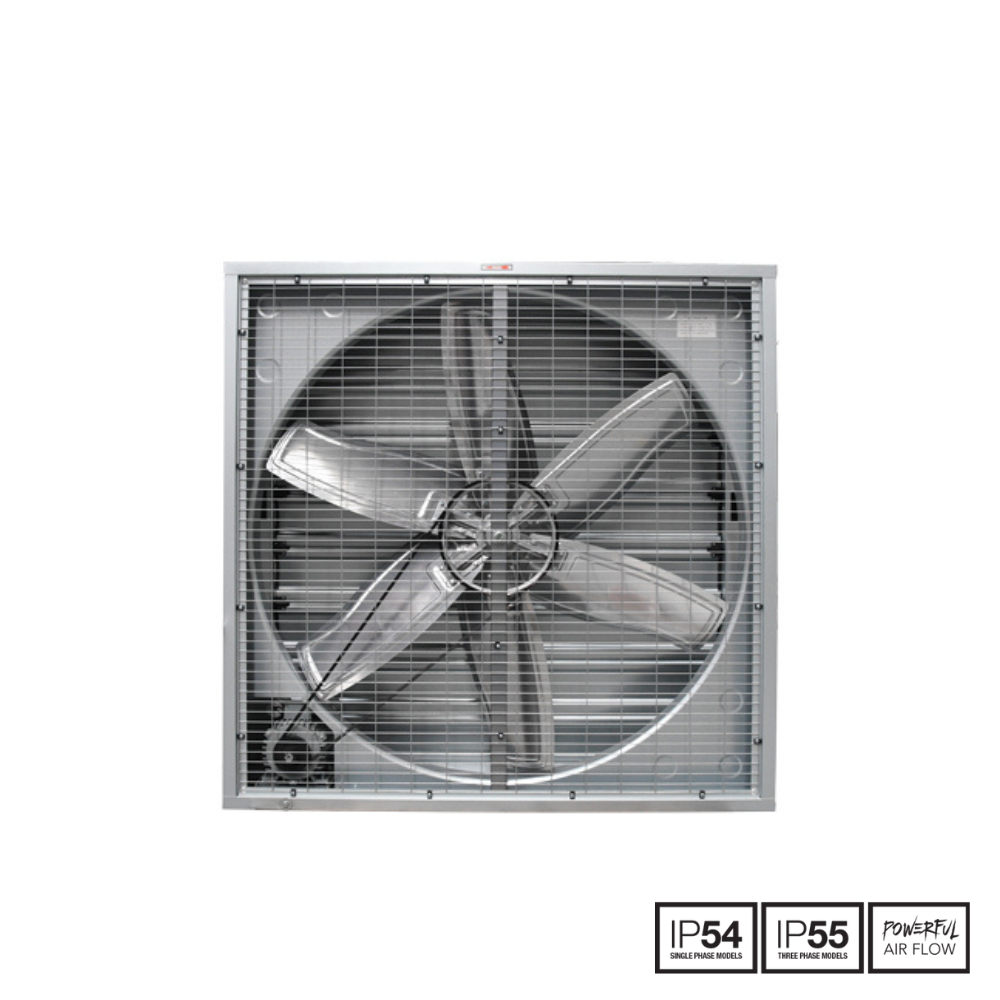

Fantech High Volume Galvanised Steel Wall Fan - HVE100 | 1000MM | 1 Phase | w/ Backdraft Dampers

The Fantech HVE100 High Volume Wall Fan is a powerful wall-mounted ventilation fan designed to deliver exceptional airflow performance in large commercial, industrial, and agricultural buildings. Featuring a large 1000mm fan diameter and delivering up to 32,000m3/hr airflow, this fan efficiently removes heat, humidity, dust, fumes, and stale air to create a healthier and more comfortable environment.

Built for applications requiring high air volume at low pressure, the HVE100 is ideal for warehouses, workshops, poultry sheds, agricultural facilities, manufacturing plants, and recreation halls. The robust galvanised steel construction ensures long-lasting durability, while the integrated self-closing mechanical backdraft dampers prevent weather ingress when the fan is switched off.

Powered by a reliable 240V single-phase 0.75kW motor, the HVE100 offers an excellent combination of performance and convenience where three-phase power is not available. Operating at just 50dB(A) measured at 3 metres, it provides effective ventilation with minimal noise impact.

Designed for easy installation and maintenance, the fan includes safety guards, grab handles, nutserts, and an adjustable motor plate for simplified belt servicing. The Fantech HVE100 High Volume Wall Fan is a dependable solution for facilities requiring high-capacity airflow and reliable operation.

• High Airflow Capacity - Delivers up to 32,000m³/hr airflow for large-scale ventilation applications.
• Single Phase Operation - Operates on standard 240V power for easy installation.
• Large 1000mm Fan Diameter - Designed to move substantial volumes of air efficiently.
• Heavy Duty Galvanised Steel Construction - Built for long-term durability in demanding environments.

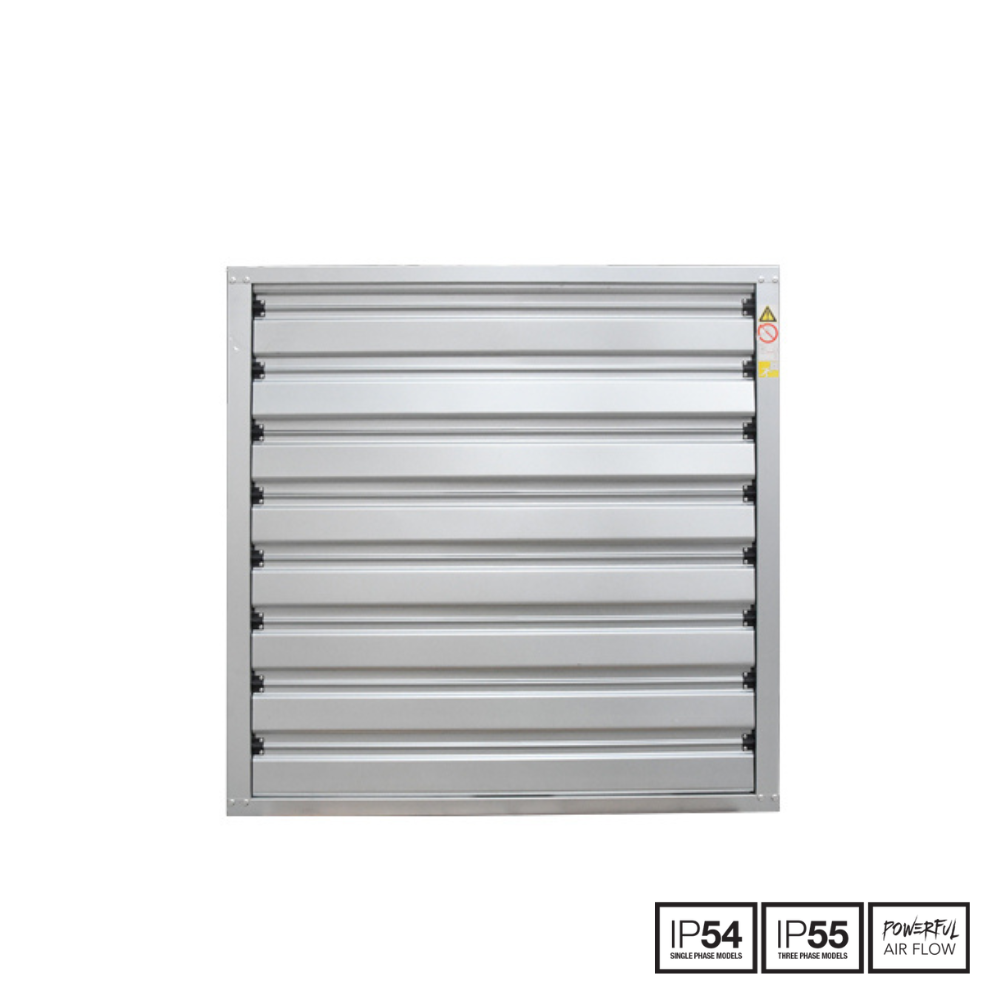

• Self-Closing Backdraft Dampers - Prevents rain, wind, and debris from entering when not in operation.
• Low Noise Performance - Operates at only 50dB(A) at 3 metres.
• IP54 Rated Motor Protection - Suitable for commercial and agricultural applications.
• Safety Guards Included - Provides additional protection during operation.
• Adjustable Motor Plate - Simplifies maintenance and belt tension adjustment.
• Easy Installation Design - Features integrated grab handles and nutserts for mounting convenience.

• [1] x Fantech High Volume Galvanised Steel Wall Fan -  HVE100 | 1000MM | 1 Phase | w/ Backdraft Dampers
