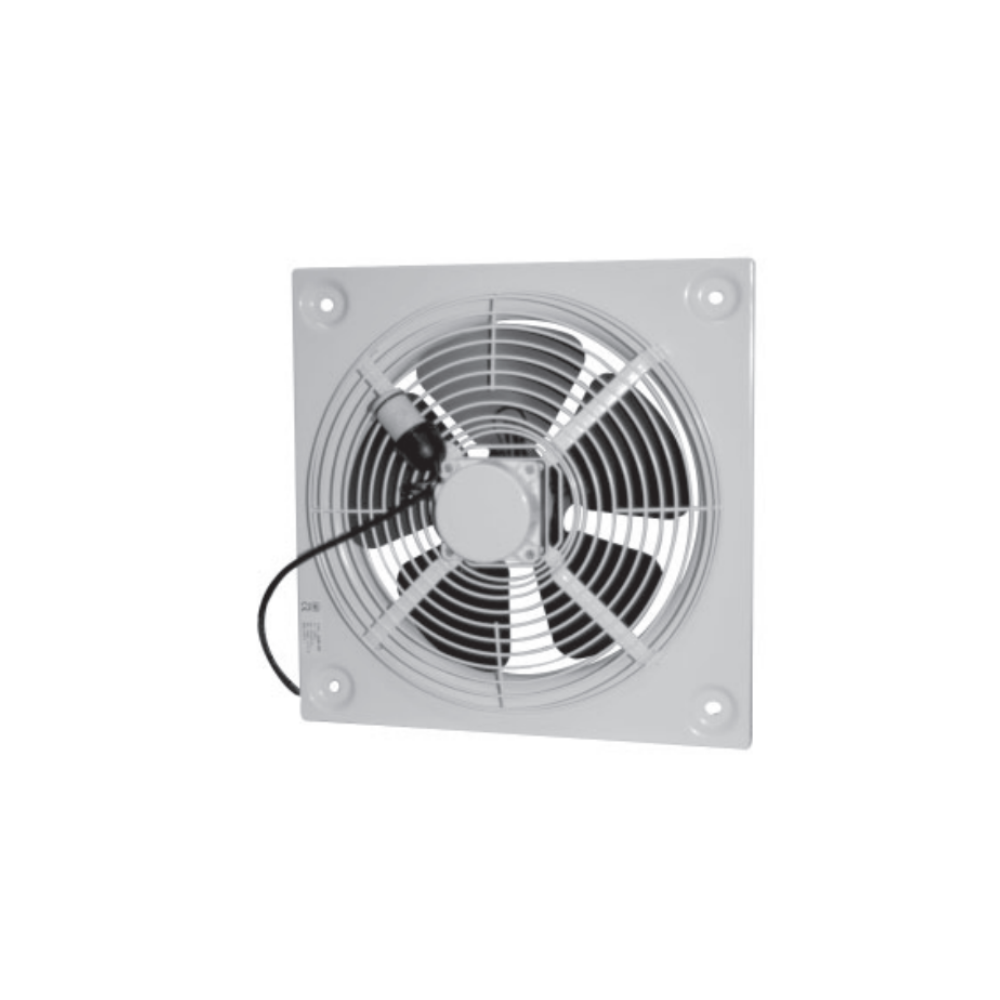

Fantech HXM Series Wall Mounted Square Plate AC Exhaust Fan - IP44 | 1 Phase | HXM-200

The Fantech HXM-200 is a compact wall mounted square plate exhaust fan designed for general ventilation in commercial and light industrial environments. With a 200MM (8" Inch) fan diameter and delivering up to 468 M3/H airflow, it is ideal for cafes, bars, wine cellars, retail premises and small workshops. Built from galvanised steel with an epoxy polyester finish, the unit features a finger-proof inlet guard and thermal motor protection for safe, reliable operation. The motor is speed controllable when paired with compatible controllers, providing greater flexibility in managing airflow and noise. Rated IP44 for durability, with Class B insulation, the HXM-200 runs on standard 230V 1 phase supply, making it a versatile choice for Australian installations.

• 200MM (8" Inch) fan size - compact square plate design for wall mounting.
• Airflow up to 468 M³/H - efficient ventilation for small to medium spaces.
• Speed controllable motor - pair with compatible controller for airflow adjustment.
• Safe operation - finger proof inlet guard and built-in thermal protection.
• Durable construction - galvanised steel plate with epoxy polyester coating.
• Insulation Class B - reliable motor performance.
• Ingress Protection IP44 - suitable for demanding environments.

• Model - HXM-200

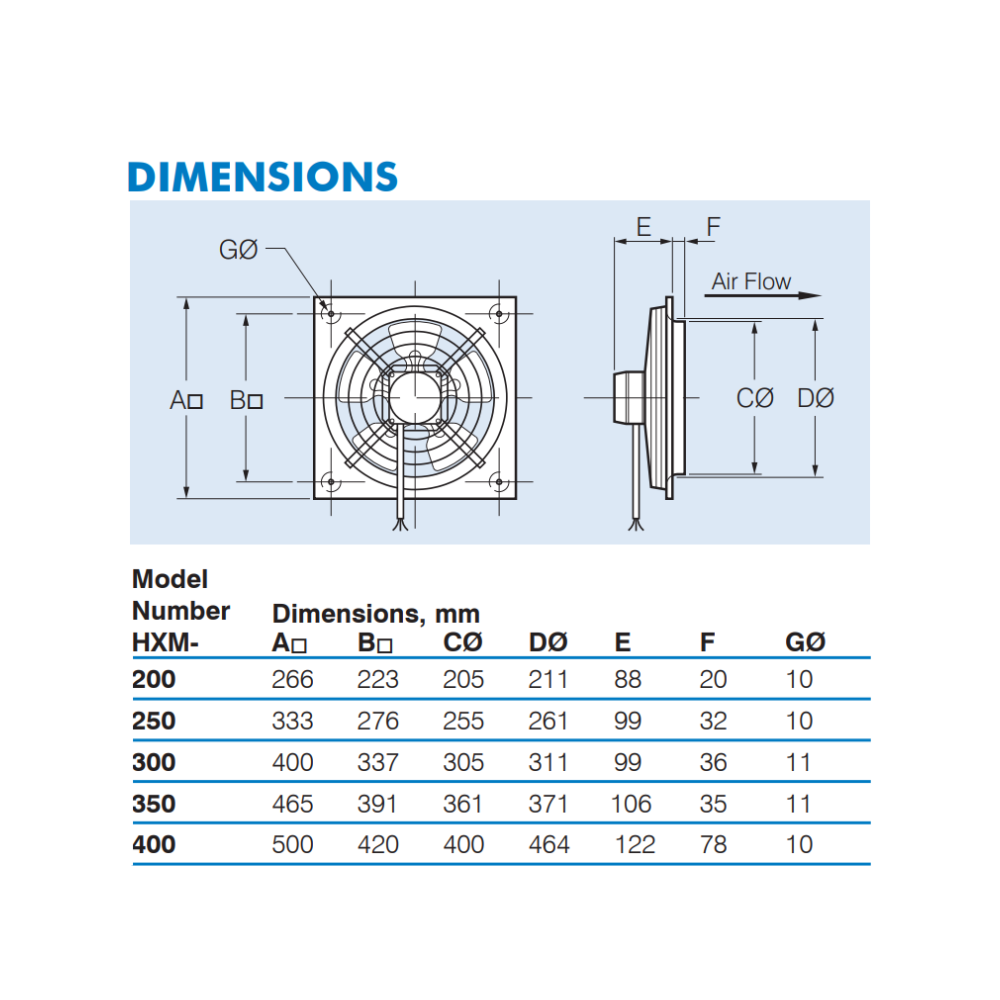

• Fan Diameter - 200MM (8" Inch)
• Airflow - 468 M³/H
• Power - 19W
• Voltage - 230V 50Hz, 1 Phase
• Current - 0.1A
• Noise Level - 29 dB(A) @3m
• Speed - 1320 RPM

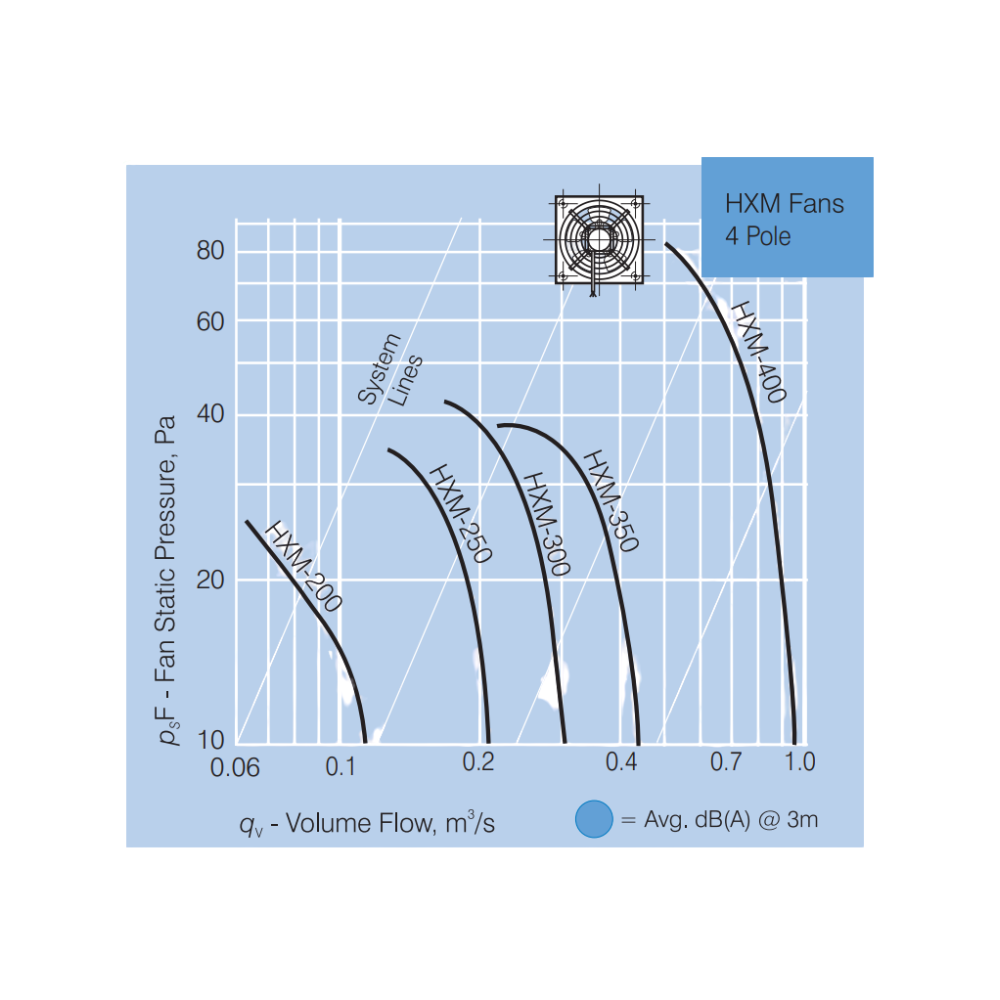

• Max Pressure - 27 Pa
• Insulation Class - Class B
• Ingress Protection - IP44
• Construction - Galvanised steel with epoxy polyester finish
• Motor Type - Capacitor run, speed controllable
• Mounting - Wall mounted square plate
• Max Ambient Temp - 40°C

• [1] x Fantech HXM Series Wall Mounted Square Plate AC Exhaust Fan - IP44 | 1 Phase | HXM-200

• Specification Sheet - Click Here
