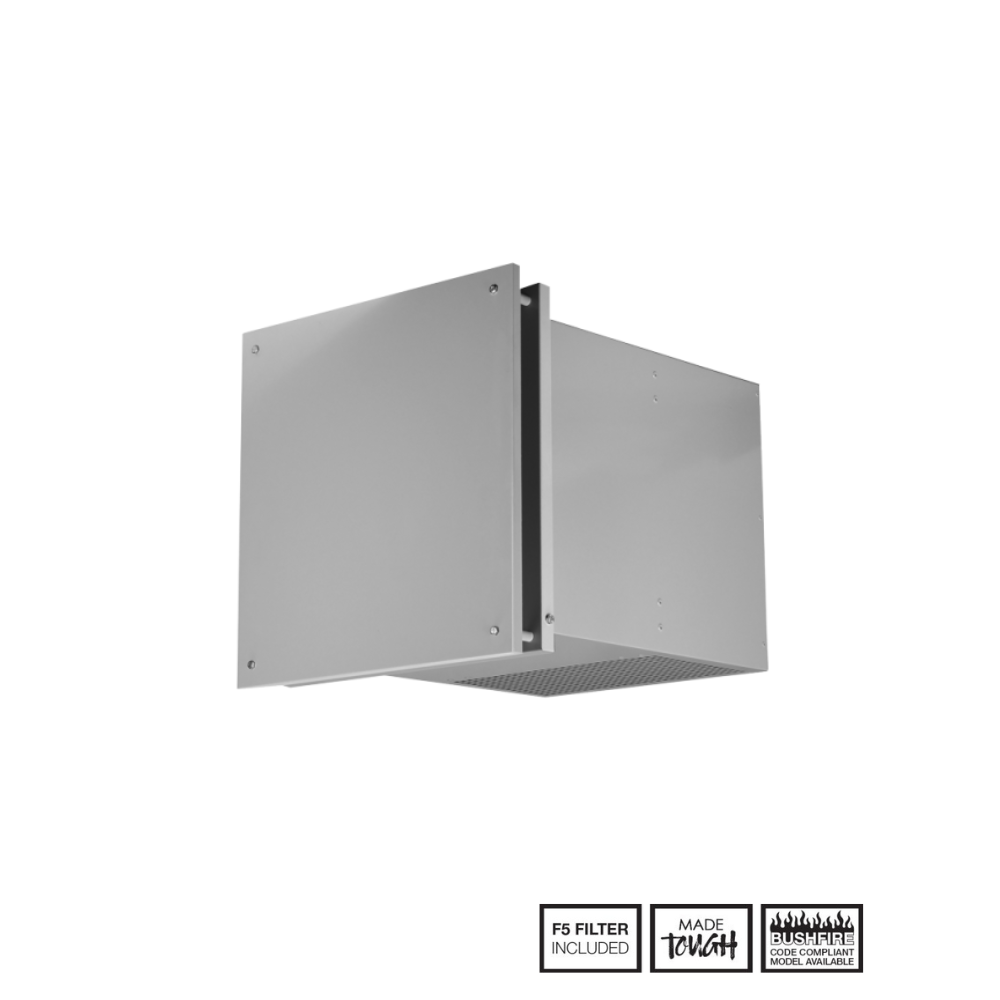

Fantech InFiltra (FSU) Filtered Supply Air Unit -FSU144-Q-BFC | F5 Filter | w/ Bush Fire Mesh
Air Flow 730 M³/H | Power 298W | Noise 51 dB(A) | IP20
Fantech InFiltra (FSU) Filtered Supply Air Unit -FSU144-Q-BFC | F5 ...
Product Overview
| Airflow (M³/H) | 730 |
| Motor Type | Squirrel Cage Induction Motor |
| Exhaust Fan Power (W) | 298 |
| Noise Level | 51 dBA at 3M |
| IP Rating | IP20 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Voltage | 240V - 1 Phase |
| Speeds / Control | 3-Speed |
Description
Description
The InFiltra FSU144-Q-BFC Filtered Supply Unit is a bushfire-compliant fresh air ventilation system designed to introduce filtered outdoor air into residential, commercial, and light industrial buildings while providing enhanced protection for installations located in bushfire-prone regions.
Featuring a high-performance centrifugal fan and integrated F5 disposable air filter, the FSU144-Q-BFC helps improve indoor air quality by reducing airborne dust, pollutants, and particulate matter before fresh air enters the occupied space. The system incorporates a weatherproof intake grille and robust steel housing for dependable operation in demanding Australian conditions.
Manufactured from durable zinc-coated steel and finished in an attractive Pearl White powder coating, the unit is designed for flush wall mounting and long service life. The bushfire-compliant model is fitted with stainless steel or bronze ember protection mesh, meeting AS3959:2009 requirements up to and including BAL-40.
The integrated 3-speed motor allows on-site selection of low, medium, or high airflow settings to suit varying ventilation requirements. Combined with sealed-for-life ball bearings, thermal overload protection, and a low-maintenance filter design, the FSU144-Q-BFC delivers reliable fresh air ventilation and superior durability for Australian homes and commercial buildings.
Features
Features
- Bushfire Compliant Design: Compliant with AS3959:2009 up to and including BAL-40.
- Ember Protection Mesh: Fitted with stainless steel or bronze mesh for bushfire protection.
- F5 Air Filtration: Includes disposable F5 filter for effective particle removal.
- Filtered Fresh Air Supply: Delivers clean outdoor air into indoor environments.
- 3-Speed Fan Operation: Adjustable low, medium, and high speed settings.
- Centrifugal Fan Technology: High-performance impeller ensures reliable airflow.
- Wall Mounted Installation: Designed for flush mounting into external walls.
- Weatherproof Intake Grille: Provides protection from outdoor weather conditions.
- Heavy Duty Steel Construction: Zinc-coated steel housing with Pearl White powder-coated finish.
- Thermal Overload Protection: Auto-reset internal thermal protection fitted as standard.

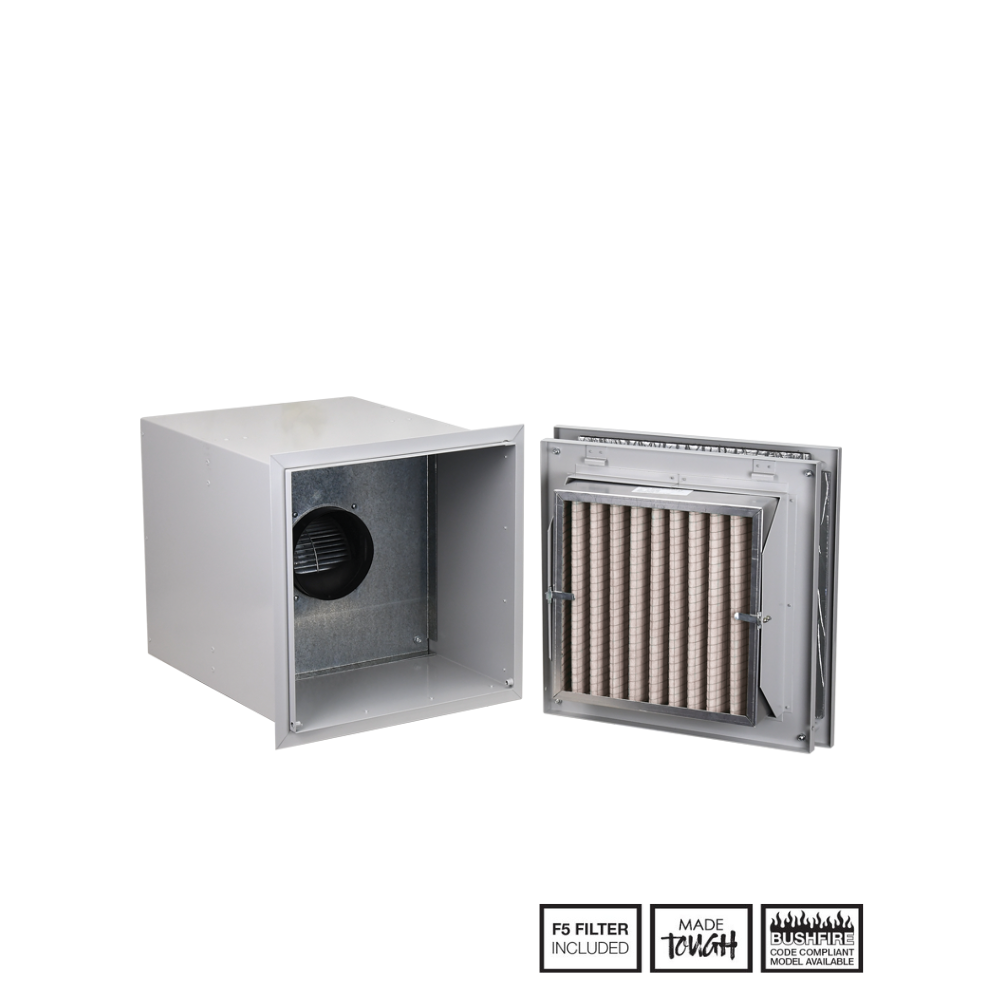

- Easy Filter Access: Removable diffuser panel allows quick filter replacement.
- Low Maintenance Operation: Sealed-for-life ball bearings and durable construction.
Specifications
Specifications
| Specification | FSU144-Q-BFC |
|---|---|
| Model | FSU144-Q-BFC |
| Product Type | Bushfire Compliant Filtered Supply Unit |
| Bushfire Rating | AS3959:2009 BAL-40 Compliant |
| Filter Class | F5 Disposable Filter |
| Filter Size | 345 x 345mm |
| Installation Type | In-Wall Mounted |
| Housing Material | Zinc Coated Steel |
| Finish | Pearl White Powder Coated |
| Fan Type | Centrifugal Impeller |
| Motor Type | External Rotor Squirrel Cage Induction Motor |
| Power Supply | 230V Single Phase 50Hz |
| Bearings | Sealed-for-Life Ball Bearings |
| Motor Class | Class B |
| IP Rating | IP20 |
| Thermal Protection | Auto Reset Internal Thermal Protection |
| Wall Penetration Required | 410 x 410mm |
| Approximate Weight | 15kg |
| Maximum Ambient Temperature | 45°C |

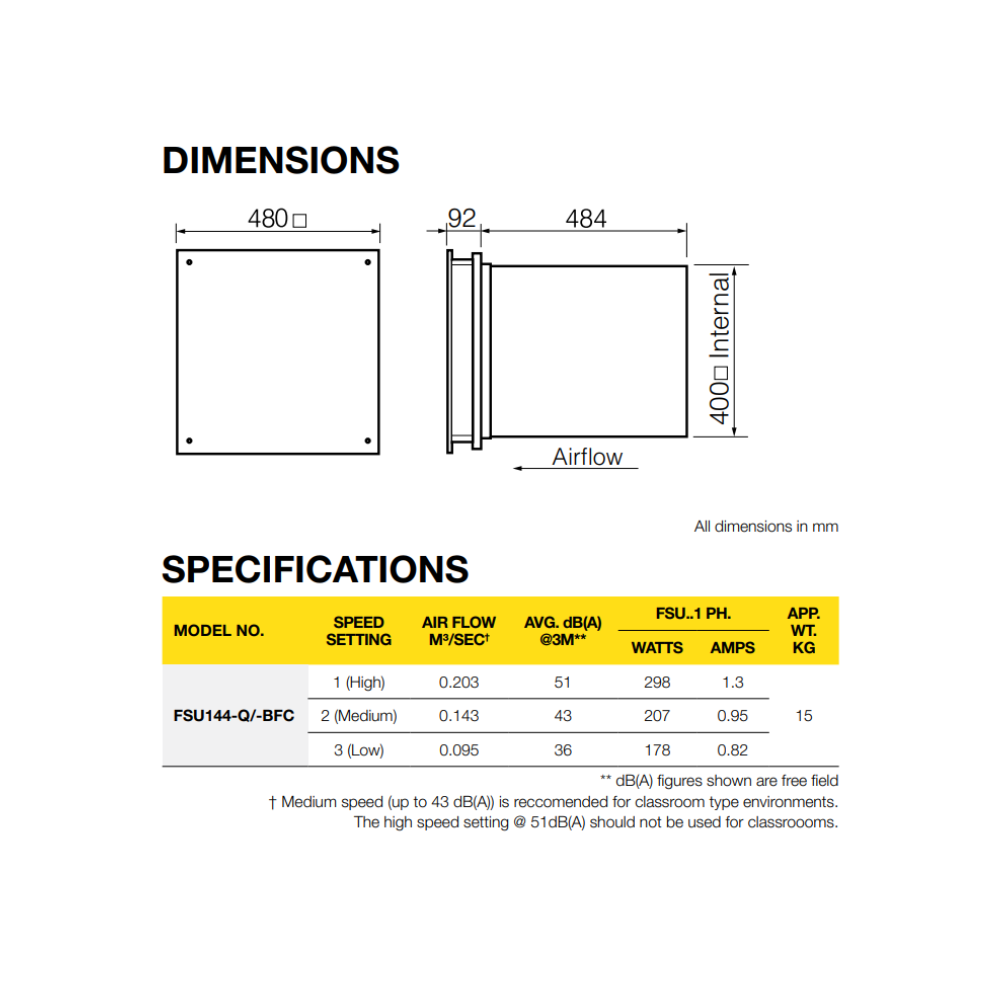

| Model No. | Speed Setting | Air flow m³/sec† |
Avg. dB(A) @3m** |
FSU..1 ph. | App. Wt. kg | |
|---|---|---|---|---|---|---|
| Watts | Amps | |||||
| FSU144-Q/-BFC | 1 (High) | 0.203 | 51 | 298 | 1.3 | 15 |
| 2 (Medium) | 0.143 | 43 | 207 | 0.95 | ||
| 3 (Low) | 0.095 | 36 | 178 | 0.82 | ||
** dB(A) figures shown are free field
† Medium speed (up to 43 dB(A)) is reccomended for classroom type environments.
The high speed setting @ 51dB(A) should not be used for classroooms.
What's in the box
What's in the box
- [1] x Fantech InFiltra (FSU) Filtered Supply Air Unit -FSU144-Q-BFC | F5 Filter | w/ Bush Fire Mesh
