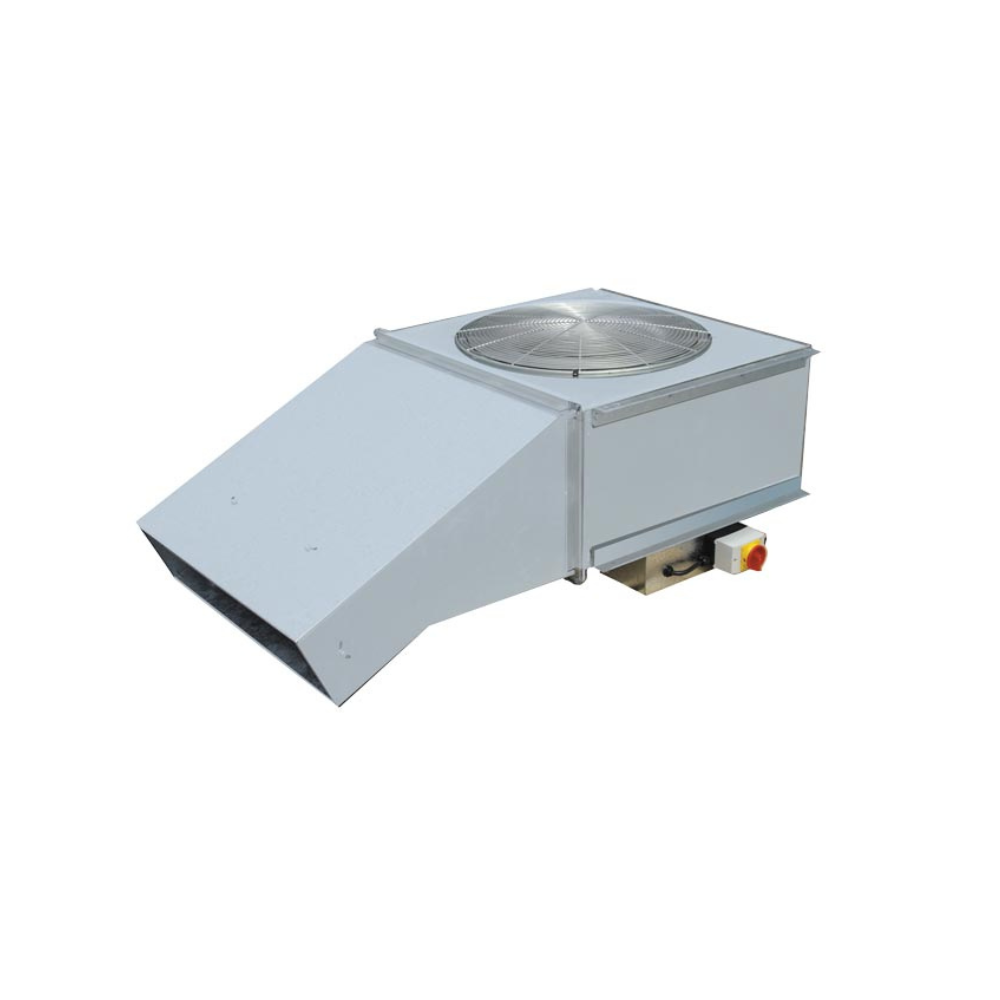

Fantech JetVent Warehouse Air Mover Ceiling Mount - JVWD6 | 3 Phase

Fantech JetVent JVWD6 is a ceiling mounted warehouse air mover engineered for large enclosed spaces across Australia. Suspended from the ceiling, it creates a refreshing cross flow that helps disperse hot, stagnant air in warehouses, distribution centres and recreation facilities. The unit pairs a high performance backward curved centrifugal impeller with an adjustable discharge nozzle so you can aim airflow precisely where it is needed.

Built for commercial duty with a galvanised steel body and durable powder coated finish, the JVWD6 features a 415V 3 phase external rotor motor with optional star or delta 2 speed control, delivering up to 12N discharge thrust at a low 54 dB(A) measured at 3m. A close ceiling inlet configuration is available for tight installs, helping keep floor operations free from obstruction.

• Targets hot spots - Helps eliminate the build up of hot, stagnant and polluted air.
• Low disturbance airflow - Gentle, directed breeze enhances comfort without disrupting workflows.
• Ceiling mounted - High level mounting avoids interference with plant and equipment.
• Adjustable nozzle - Aim and fine tune the airflow direction to specific areas.
• Efficient impeller - Backward curved centrifugal design for strong, efficient air movement.
• Three phase control - Can be wired high or low speed, optional star or delta 2 speed switching.
• Durable construction - Galvanised steel housing with hard wearing grey powder coat.
• Close ceiling option - Alternative inlet position available for low clearance installs.

• Brand: Fantech
• Range: JetVent Warehouse Air Mover
• Model: JVWD6
• Mounting: Ceiling mount, suspended
• Discharge Thrust: 12N high, 3N low
• Average Noise @3m: 54 dB(A) high, 50 dB(A) low
• Voltage: 415V AC
• Phase: 3 Phase
• Power Input: 0.69 kW high, 0.39 kW low
• Current: 1.45 A high, 0.79 A low
• Motor Type: External rotor, squirrel cage induction
• Speed Control: High or low speed wiring, optional star or delta 2 speed switch
• Impeller: Backward curved centrifugal
• Nozzle: Adjustable discharge nozzle
• Body Material: Galvanised steel, powder coated grey

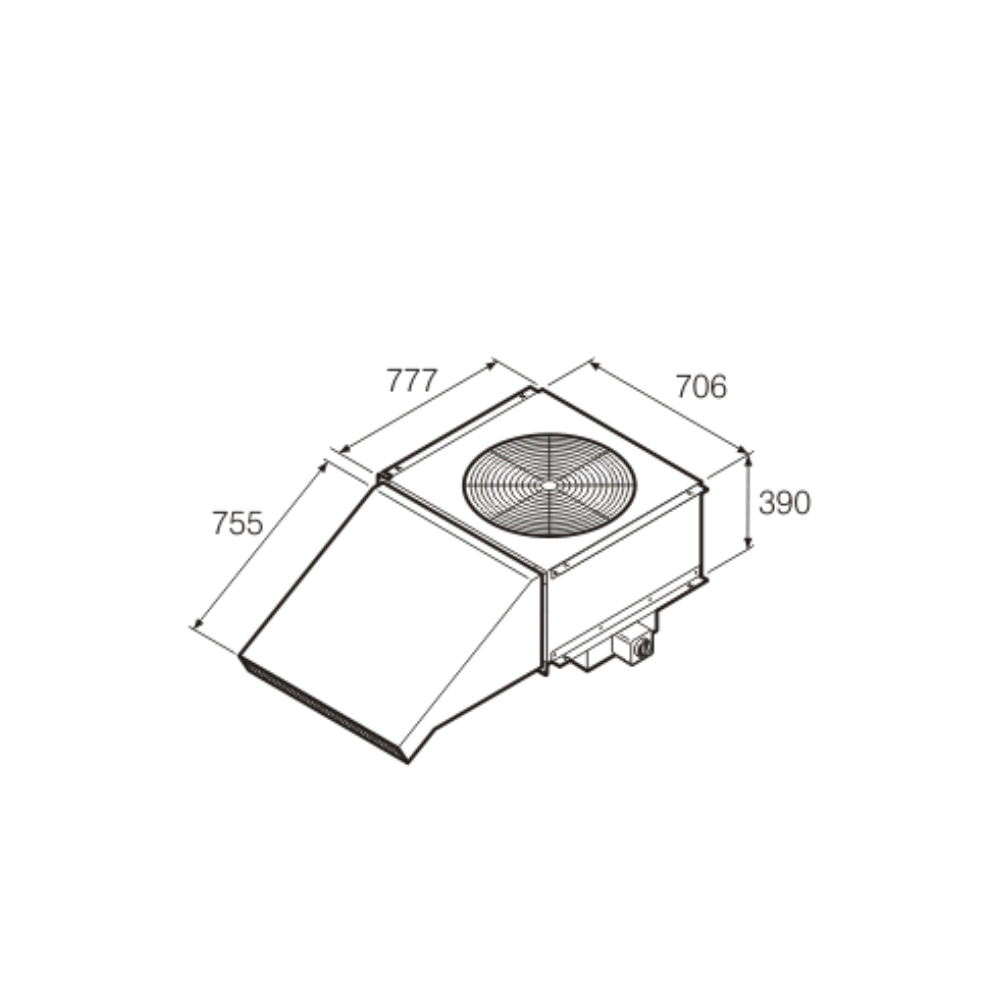

• Dimensions: 777 x 706 x 390 mm (77.7 x 70.6 x 39.0 cm)
• Approx. Weight: 85 kg
• Applications: Warehouses, distribution centres, recreation facilities

• [1] x Fantech JetVent Warehouse Air Mover Ceiling Mount - JVWD6 | 3 Phase

• Specification Sheet - Click Here
