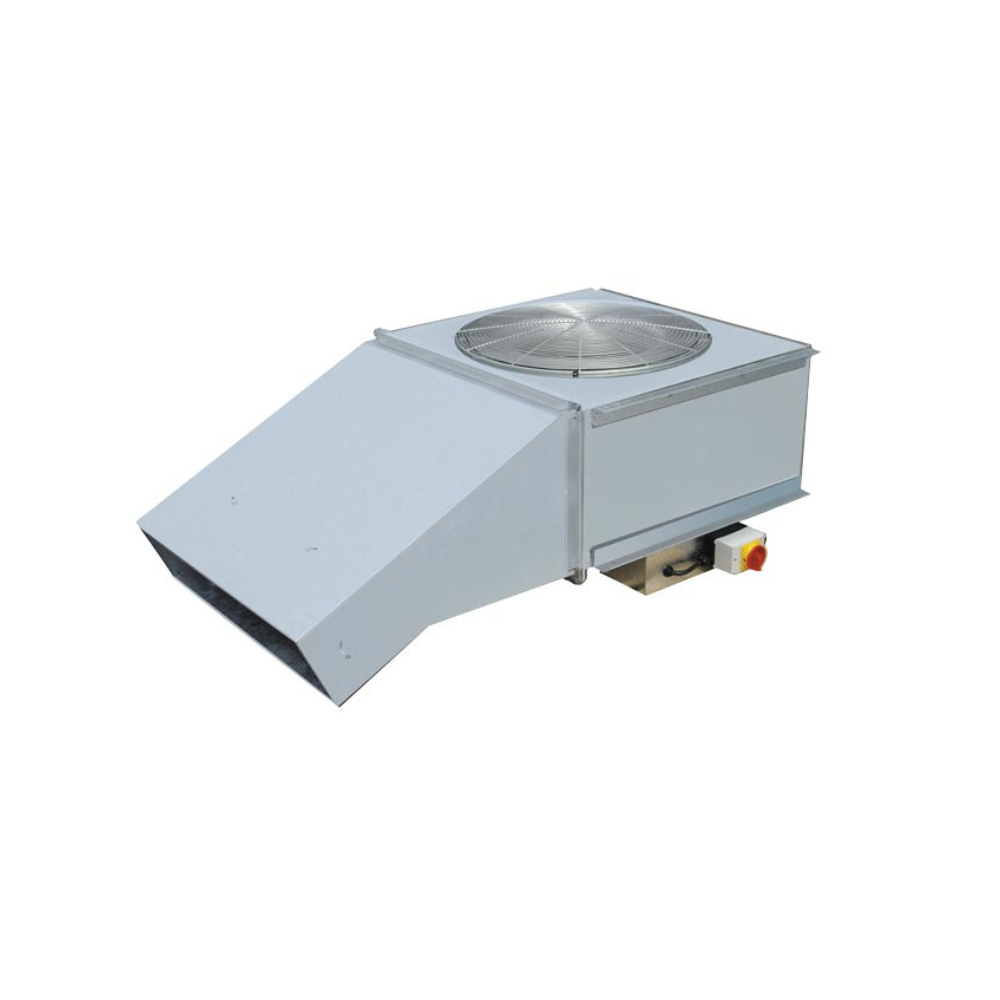

Fantech JetVent Warehouse Air Mover Ceiling Mount - JVWE6 | 1 Phase

Fantech JetVent JVWE6 is a ceiling mounted warehouse air mover engineered to keep large indoor areas in Australia cooler and fresher. Suspended overhead, it creates a consistent cross flow that improves heat transfer at worker level, helping reduce hot, stagnant pockets of air in warehouses, distribution centres and recreation facilities. The unit features a high performance backward curved centrifugal impeller, an adjustable discharge nozzle to direct air where you need it, and a single phase 240V motor that is speed controllable for fine tuning on site.

Built with galvanised steel and a durable grey powder coated finish, the JetVent JVWE6 is designed for reliable operation in commercial environments. The gentle, targeted airflow delivers comfort with minimal disturbance at floor level while its high level mounting keeps equipment clear of busy work areas.

Key performance highlights include 12N discharge thrust, 54 dB(A) at 3m, and a compact footprint to suit tight ceiling grids. Ideal for retrofit upgrades or new builds where improved internal air movement is required.

• Targets hot spots - Eliminates the build up of hot, stagnant and polluted air in large indoor spaces.
• Low disturbance airflow - Gentle breeze enhances comfort with less disruption to the working environment.
• Ceiling mounted - High level mounting avoids interference with plant and floor operations.
• Adjustable nozzle - Direct and fine tune the air flow direction where it is needed most.
• High performance impeller - Backward curved centrifugal design for efficient air movement.
• Single phase control - Speed controllable and supplied with 3 pin plug and lead for easy setup.
• Three phase option - Star or Delta 2 speed control available on the three phase variant.
• Durable build - Galvanised steel housing with grey powder coated finish for commercial longevity.
• Close ceiling option - Variant available with underside inlet for tight ceiling clearances.

• Brand: Fantech
• Range: JetVent Warehouse Air Mover
• Model: JVWE6
• Mounting: Ceiling mount, suspended
• Discharge Thrust: 12N
• Average Noise @3m: 54 dB(A)
• Voltage: 220-240V AC
• Phase: 1 Phase
• Power Input: 0.84 kW
• Current: 4.10 A
• Motor Type: External rotor, squirrel cage
• Speed Control: Yes, single phase speed controllable
• Plug and Lead: Supplied, 3 pin

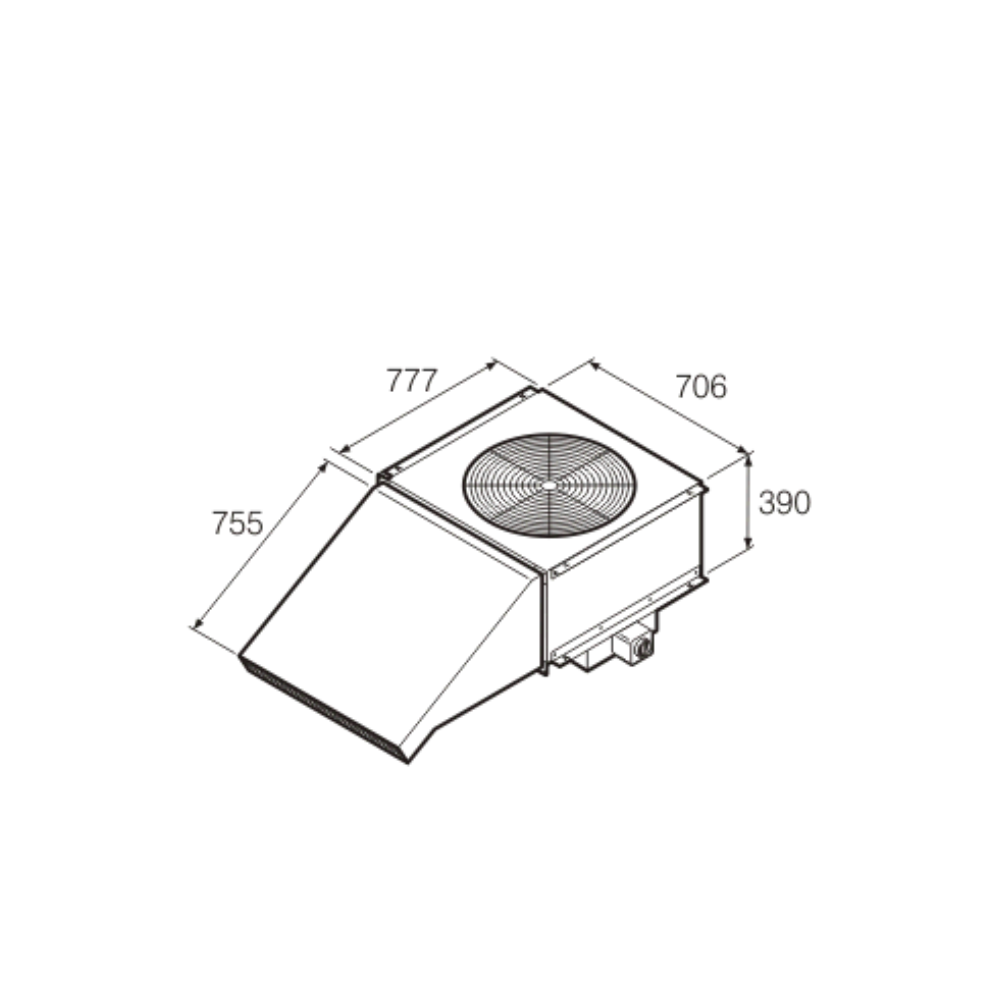

• Dimensions in CM: 77.7 x 70.6 x 39.0 cm
• Body Material: Galvanised steel, powder coated grey
• Impeller: Backward curved centrifugal
• Adjustable Nozzle: Yes
• Applications: Warehouses, distribution centres, recreation facilities

• [1] x Fantech JetVent Warehouse Air Mover Ceiling Mount - JVWE6 | 1 Phase

• Specification Sheet - Click Here
