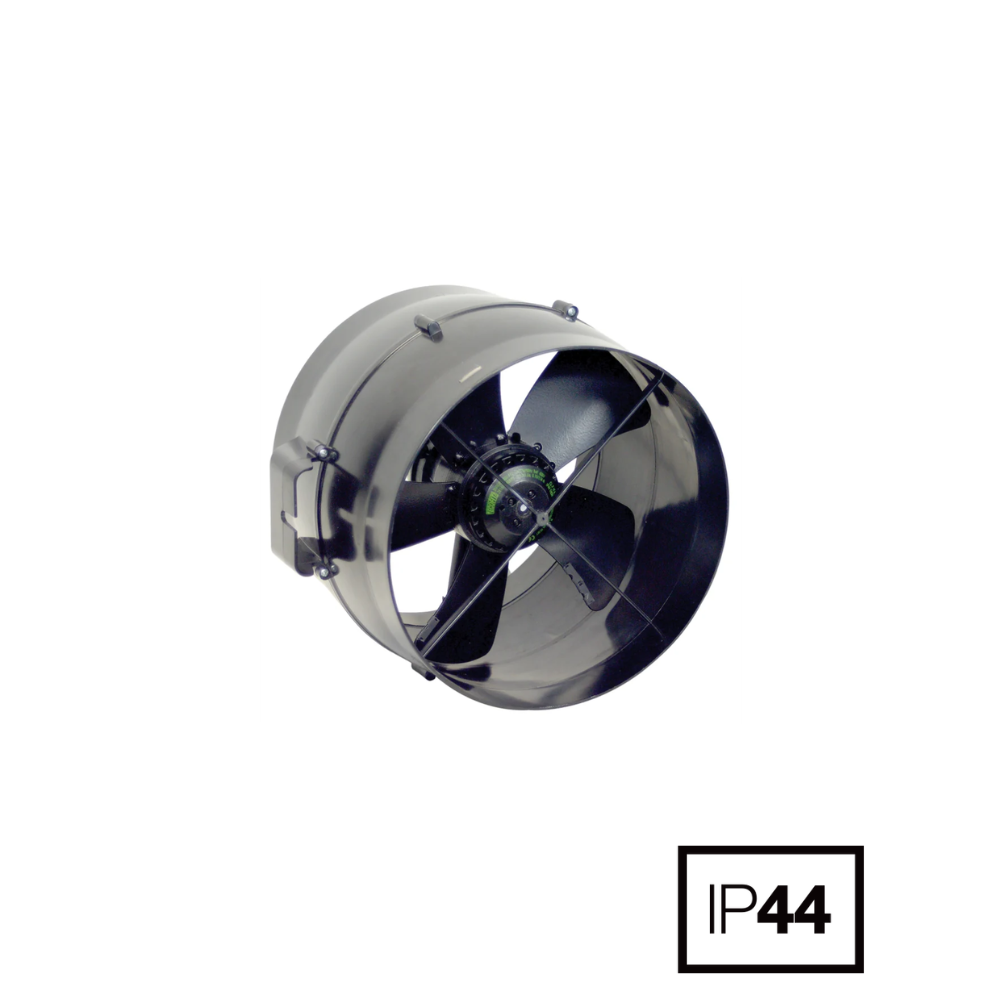

Fantech Minitube Duct Mounted Axial Fan 200MM (8" Inch) - MTP202 | 2 Pole | Plastic Housing
Power Consumption 70W | IP44
Fantech Minitube Duct Mounted Axial Fan 200MM (8" Inch) - MTP2...
Description
Description
The Fantech MTP202 Minitube Axial Fan is a versatile and reliable duct-mounted ventilation fan designed for residential, commercial, and industrial applications. Featuring a lightweight yet durable ABS injection moulded plastic housing, this 200mm axial fan delivers efficient airflow performance while remaining easy to install and maintain.
Powered by a high-quality external rotor squirrel cage induction motor, the MTP202 offers dependable operation and can be speed controlled to suit varying ventilation requirements. The fan is supplied with a convenient flex and plug connection, allowing for fast installation without complex electrical work.
Its compact design enables mounting in virtually any position, making it suitable for exhaust, fresh air supply, transfer air, and general ventilation systems. The sealed-for-life ball bearing motor ensures long service life, while integrated manual reset thermal protection provides additional motor safety.
Whether used in ducted ventilation systems for homes, workshops, commercial premises, grow rooms, warehouses, or industrial facilities, the Fantech MTP202 Minitube Axial Fan delivers reliable airflow performance, low maintenance operation, and installation flexibility.
Features
Features
- 200mm Duct Mounted Axial Fan - Designed to suit standard 200mm ducting systems.
- ABS Plastic Housing - Lightweight, corrosion-resistant, and highly durable construction.
- Plug and Play Installation - Supplied with flex and plug for easy connection.
- Speed Controllable - Compatible with speed controllers for adjustable airflow.
- External Rotor Motor - Reliable squirrel cage induction motor design.
- Flexible Mounting Options - Can be installed in any position to suit system requirements.
- Sealed Ball Bearings - Maintenance-free bearings designed for long service life.
- IP44 Motor Protection - Suitable for demanding ventilation applications.
- Integrated Thermal Protection - Manual reset thermal overload protection fitted as standard.
- Versatile Applications - Suitable for domestic, commercial, industrial, and hydroponic ventilation systems.
Specifications
Specifications
| Specification | MTP202 |
|---|---|
| Model | MTP202 |
| Series | Minitube Axial Fan |
| Duct Size | 200 mm |
| Housing Material | ABS Injection Moulded Plastic |
| Voltage | 230V Single Phase |
| Frequency | 50/60Hz |
| Motor Type | External Rotor Squirrel Cage Induction Motor |
| Power Input | 0.07 kW |
| Current Draw | 0.36 A |
| Speed | 42 rps |
| Noise Level | 52 dB(A) @ 3m |
| Maximum Operating Temperature | 70°C |
| Weight | 3.5 kg |
| Motor Protection | IP44 |
| Thermal Protection | Manual Reset Protection |
What's in the box
What's in the box
- [1] x Fantech Minitube Duct Mounted Axial Fan 200MM (8" Inch) - MTP202 | 2 Pole | Plastic Housing
