Fantech Minitube Duct Mounted Axial Fan 200MM (8" Inch) - MTS204 | 4 Pole | Steel Housing
Power Consumption 30W | IP44
Fantech Minitube Duct Mounted Axial Fan 200MM (8" Inch) - MTS2...
Description
Description

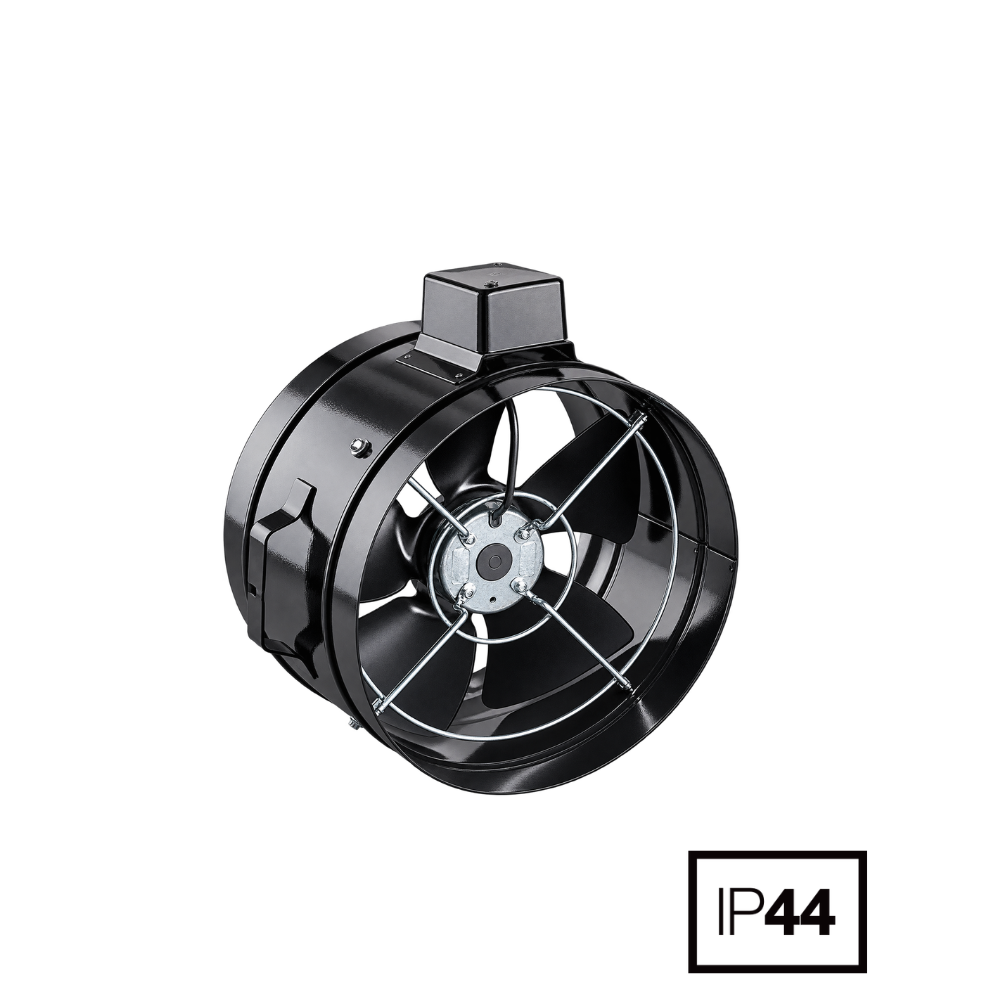

The Fantech MTS204 Minitube Axial Fan is a high-quality duct-mounted ventilation fan engineered for applications where quiet operation and reliable airflow performance are essential. Featuring a robust powder-coated steel housing and a low-speed 4-pole external rotor motor, this 200mm axial fan provides effective ventilation with significantly reduced noise levels.
Part of the trusted Fantech Minitube Steel Series, the MTS204 is designed to suit standard 200mm ducting systems and can be mounted in any position, providing maximum installation flexibility. Its speed-controllable motor allows users to optimise airflow performance while maintaining quiet operation, making it ideal for offices, workshops, residential ventilation systems, commercial buildings, and industrial applications.
The fan incorporates a durable powder-coated steel casing, high-strength powder-coated steel impeller, sealed-for-life ball bearings, and integrated manual reset thermal protection to ensure dependable long-term operation with minimal maintenance requirements.
Operating at only 39dB(A) at 3 metres, the Fantech MTS204 Minitube Axial Fan is an excellent choice for projects requiring a balance of quiet performance, installation flexibility, and professional-grade ventilation reliability.
Features
Features
- 200mm Duct Mounted Axial Fan - Designed to suit standard 200mm ventilation duct systems.
- Low Noise 4-Pole Motor - Operates at only 39dB(A) at 3 metres for quieter ventilation.
- Powder-Coated Steel Housing - Durable construction for commercial and industrial environments.
- Speed Controllable - Compatible with suitable speed controllers for adjustable airflow.
- External Rotor Motor - Reliable squirrel cage induction motor technology.
- Powder-Coated Steel Impeller - High-strength impeller for long service life.
- Flexible Installation - Can be mounted in any position.
- IP44 Motor Protection - Suitable for residential, commercial, and industrial ventilation systems.
- Manual Reset Thermal Protection - Protects the motor from overload conditions.
- Accessory Compatibility - Compatible with a wide range of ventilation accessories and ducting systems.
Specifications
Specifications
| Specification | MTS204 |
|---|---|
| Model | MTS204 |
| Series | Minitube Steel Series |
| Duct Size | 200 mm |
| Housing Material | Powder-Coated Steel |
| Impeller Material | Powder-Coated Steel |
| Voltage | 230V Single Phase |
| Frequency | 50/60Hz |
| Motor Type | External Rotor Squirrel Cage Induction Motor |
| Motor Poles | 4 Pole |
| Power Input | 0.03 kW |
| Current Draw | 0.14 A |
| Speed | 25 rps |
| Noise Level | 39 dB(A) @ 3m |
| Maximum Operating Temperature | 60°C |
| Approximate Weight | 3.5 kg |
| Motor Protection | IP44 |
| Thermal Protection | Manual Reset Protection |
What's in the box
What's in the box
- [1] x Fantech Minitube Duct Mounted Axial Fan 200MM (8" Inch) - MTS204 | 4 Pole | Steel Housing
