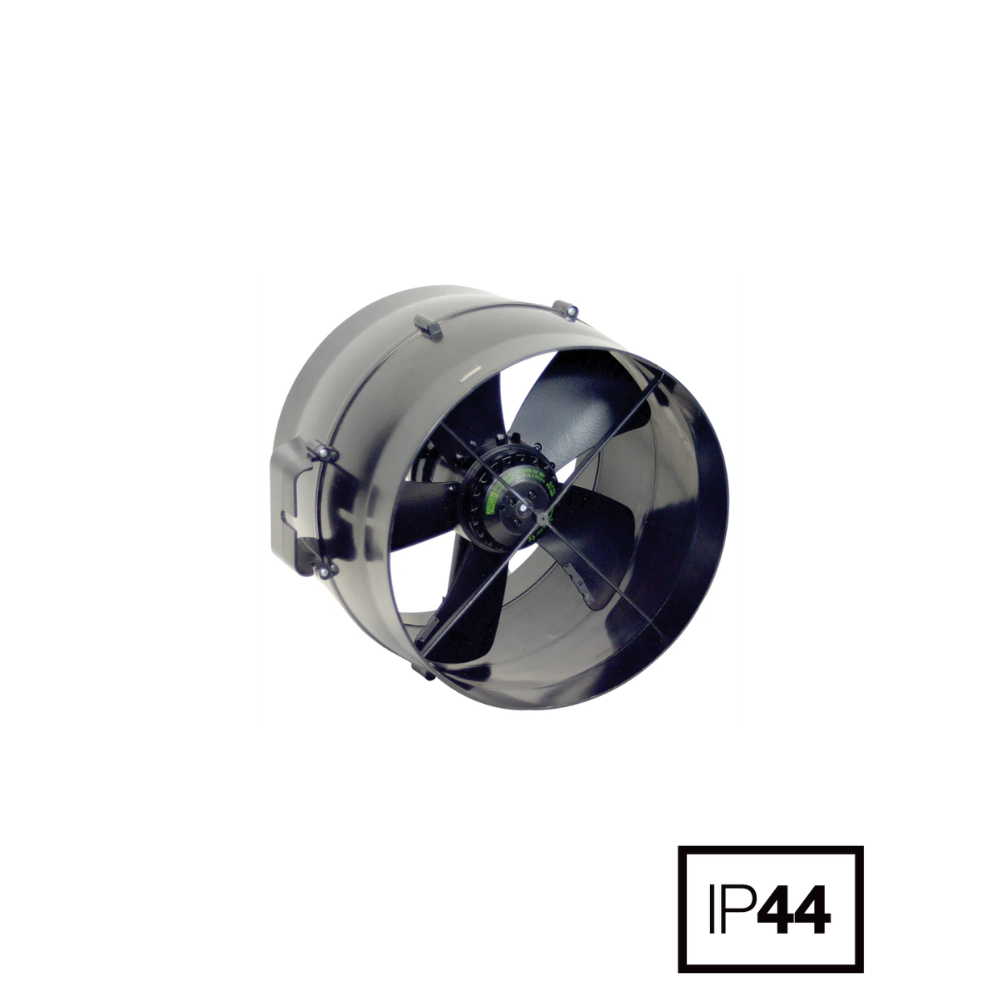

Fantech Minitube Duct Mounted Axial Fan 250MM (10" Inch) - MTP254 | 4 Pole | Plastic Housing
Power Consumption 60W | IP44
Description
Description
The Fantech MTP254 Minitube Axial Fan is a reliable and energy-efficient duct-mounted ventilation fan designed for applications where quieter operation and dependable airflow are essential. Featuring a durable ABS injection moulded plastic housing and a low-speed 4-pole external rotor motor, this 250mm axial fan provides effective ventilation with reduced noise levels.
Designed to suit standard 250mm ducting systems, the MTP254 is ideal for residential, commercial, industrial, and hydroponic ventilation applications. The fan is supplied complete with a convenient flex and plug connection, allowing for fast and straightforward installation. Its versatile design enables mounting in any position to suit a wide variety of duct layouts.
The high-strength powder-coated steel impeller ensures long-term durability and stable airflow performance, while sealed-for-life ball bearings reduce maintenance requirements. Integrated manual reset thermal protection provides additional motor protection and operational safety.
Operating at just 40dB(A) at 3 metres, the Fantech MTP254 Minitube Axial Fan is an excellent choice for projects requiring efficient airflow, quiet performance, and flexible installation options.
Features
Features
- 250mm Duct Mounted Axial Fan - Designed for standard 250mm ventilation duct systems.
- Low Noise 4-Pole Motor - Provides quieter operation at only 40dB(A) at 3 metres.
- ABS Plastic Housing - Lightweight, corrosion-resistant, and durable construction.
- Flex and Plug Included - Simple plug-and-play installation.
- Speed Controllable - Compatible with speed controllers for adjustable airflow.
- External Rotor Motor - Reliable squirrel cage induction motor technology.
- Flexible Mounting Options - Can be installed in any position.
- Powder-Coated Steel Impeller - High-strength construction for long-term performance.
- IP44 Motor Protection - Suitable for residential, commercial, and industrial environments.
- Integrated Thermal Protection - Manual reset motor protection fitted as standard.
Specifications
Specifications
| Specification | MTP254 |
|---|---|
| Model | MTP254 |
| Series | Minitube Axial Fan |
| Duct Size | 250 mm |
| Housing Material | ABS Injection Moulded Plastic |
| Voltage | 230V Single Phase |
| Frequency | 50/60Hz |
| Motor Type | External Rotor Squirrel Cage Induction Motor |
| Motor Poles | 4 Pole |
| Power Input | 0.06 kW |
| Current Draw | 0.28 A |
| Speed | 23 rps |
| Noise Level | 40 dB(A) @ 3m |
| Maximum Operating Temperature | 60°C |
| Weight | 4.0 kg |
| Motor Protection | IP44 |
| Thermal Protection | Manual Reset Protection |
What's in the box
What's in the box
- [1] x Fantech Minitube Duct Mounted Axial Fan 250MM (10" Inch) - MTP254 | 4 Pole | Plastic Housing
