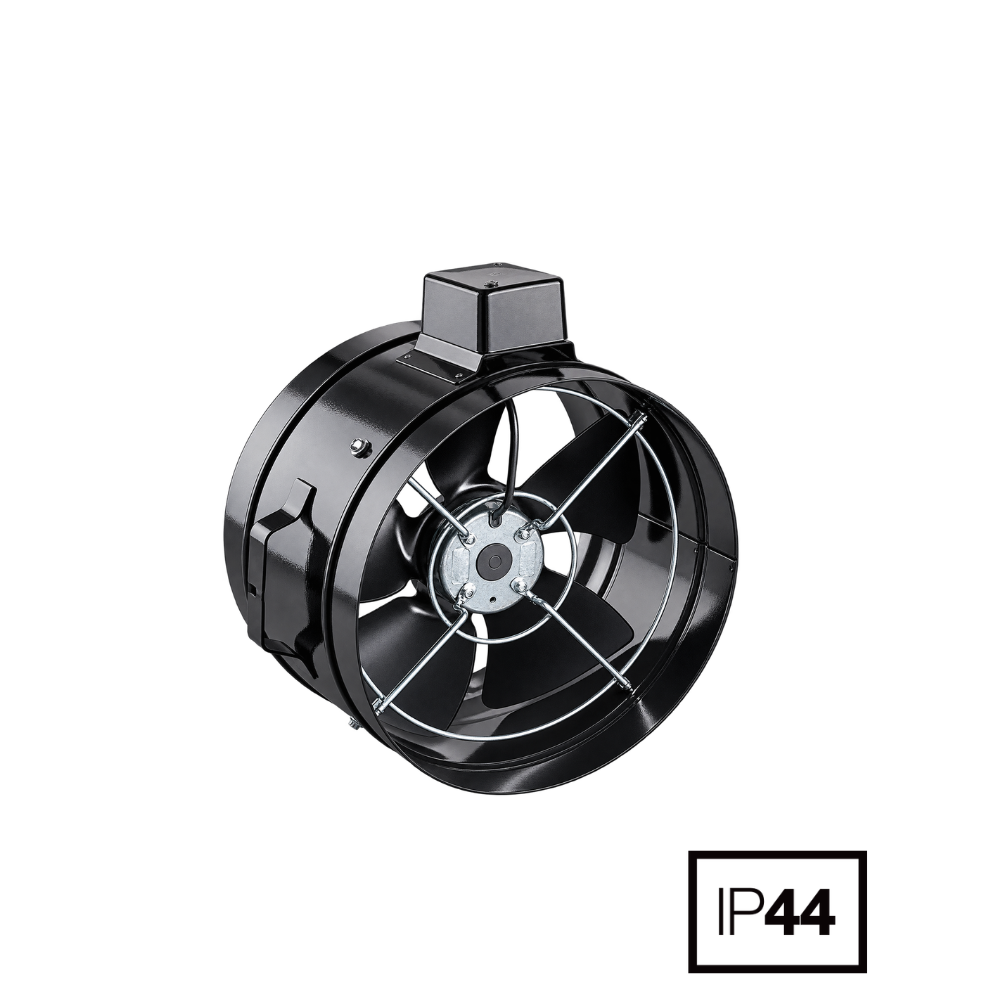

Fantech Minitube Duct Mounted Axial Fan 250MM (10" Inch) - MTS254 | 4 Pole | Steel Housing
Power Consumption 60W | IP44
Fantech Minitube Duct Mounted Axial Fan 250MM (10" Inch) - MTS...
Description
Description
The Fantech MTS254 Minitube Axial Fan is a durable and energy-efficient duct-mounted ventilation fan designed for applications where quiet operation and reliable airflow performance are essential. Featuring a robust powder-coated steel housing and a low-speed 4-pole external rotor motor, this 250mm axial fan delivers effective ventilation while maintaining reduced operating noise.
Suitable for standard 250mm ducting systems, the MTS254 is ideal for residential ventilation, commercial buildings, workshops, warehouses, grow rooms, and industrial facilities. Its compact inline design allows installation in virtually any position, providing flexibility across a wide range of duct layouts and ventilation applications.
The fan features a high-strength powder-coated steel impeller, sealed-for-life ball bearings, and integrated manual reset thermal protection for dependable long-term operation. The speed-controllable motor allows users to adjust airflow performance to suit varying ventilation requirements.
Operating at a low noise level of just 40dB(A) at 3 metres, the Fantech MTS254 Minitube Axial Fan is an excellent solution for projects requiring quieter airflow performance without compromising durability and reliability.
Features
Features
- 250mm Duct Mounted Axial Fan - Designed to suit standard 250mm ventilation duct systems.
- Low Noise 4-Pole Motor - Provides quieter operation at only 40dB(A) at 3 metres.
- Powder-Coated Steel Housing - Durable construction suitable for commercial and industrial applications.
- Speed Controllable - Compatible with suitable speed controllers for adjustable airflow.
- External Rotor Motor - Reliable squirrel cage induction motor technology.
- Powder-Coated Steel Impeller - High-strength impeller for long service life.
- Flexible Mounting - Can be installed in any position.
- IP44 Motor Protection - Suitable for residential, commercial, and industrial ventilation systems.
- Manual Reset Thermal Protection - Protects the motor against overload conditions.
- Accessory Compatibility - Compatible with an extensive range of ventilation accessories.
Specifications
Specifications
| Specification | MTS254 |
|---|---|
| Model | MTS254 |
| Series | Minitube Steel Series |
| Duct Size | 250 mm |
| Housing Material | Powder-Coated Steel |
| Impeller Material | Powder-Coated Steel |
| Voltage | 230V Single Phase |
| Frequency | 50/60Hz |
| Motor Type | External Rotor Squirrel Cage Induction Motor |
| Motor Poles | 4 Pole |
| Power Input | 0.07 kW |
| Current Draw | 0.34 A |
| Speed | 23 rps |
| Noise Level | 40 dB(A) @ 3m |
| Maximum Operating Temperature | 60°C |
| Approximate Weight | 4 kg |
| Motor Protection | IP44 |
| Thermal Protection | Manual Reset Protection |
What's in the box
What's in the box
- [1] x Fantech Minitube Duct Mounted Axial Fan 250MM (10" Inch) - MTS254 | 4 Pole | Steel Housing
