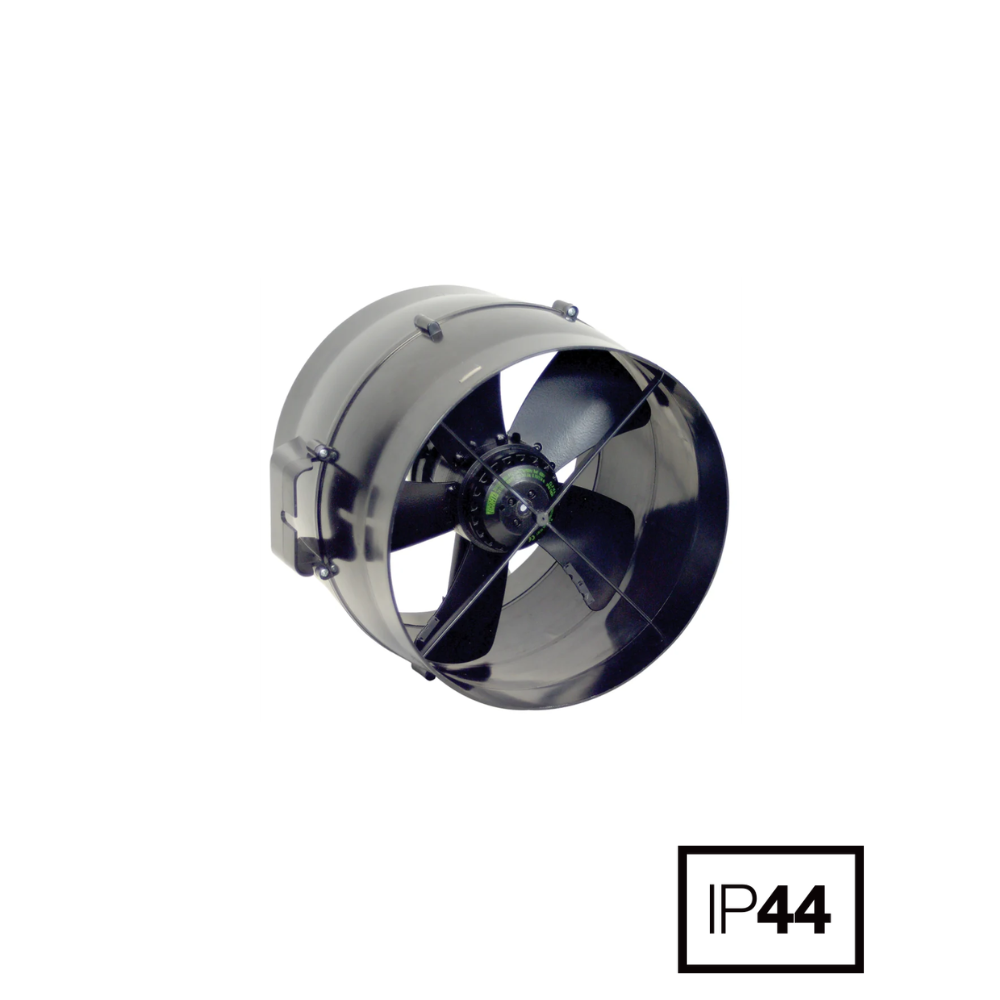

Fantech Minitube Duct Mounted Axial Fan 300MM (12" Inch) - MTP302 | 2 Pole | Plastic Housing
Power Consumption 180W | IP44
Fantech Minitube Duct Mounted Axial Fan 300MM (12" Inch) - MTP...
Description
Description
The Fantech MTP302 Minitube Axial Fan is a high-performance duct-mounted ventilation fan engineered for applications requiring powerful airflow and dependable operation. Designed with a robust ABS injection moulded plastic housing and a powerful 2-pole external rotor motor, this 300mm axial fan delivers reliable ventilation performance for residential, commercial, industrial, and hydroponic environments.
Suitable for standard 300mm ducting systems, the MTP302 is ideal for exhaust air extraction, fresh air intake, transfer air systems, and general ventilation duties. Its compact inline design allows installation in any position, providing flexibility for a wide range of duct layouts and ventilation projects.
The fan is supplied with a convenient flex and plug connection for quick installation and features a high-strength powder-coated steel impeller for long-lasting durability. The speed-controllable motor enables users to fine-tune airflow performance, while sealed-for-life ball bearings minimise maintenance requirements.
Built with integrated manual reset thermal protection and tested to internationally recognised airflow and noise standards, the Fantech MTP302 Minitube Axial Fan offers a reliable and professional ventilation solution for demanding Australian applications.
Features
Features
- 300mm Duct Mounted Axial Fan - Designed for standard 300mm ventilation duct systems.
- Powerful 2-Pole Motor - Provides strong airflow performance for demanding ventilation applications.
- ABS Plastic Housing - Lightweight, corrosion-resistant, and durable construction.
- Flex and Plug Included - Simple plug-and-play installation.
- Speed Controllable - Compatible with speed controllers for adjustable airflow management.
- External Rotor Motor - Reliable squirrel cage induction motor technology.
- Flexible Mounting - Can be installed in any position.
- Powder-Coated Steel Impeller - High-strength construction for long service life.
- IP44 Motor Protection - Suitable for commercial and industrial ventilation environments.
- Integrated Thermal Protection - Manual reset overload protection fitted as standard.
Specifications
Specifications
| Specification | MTP302 |
|---|---|
| Model | MTP302 |
| Series | Minitube Axial Fan |
| Duct Size | 300 mm |
| Housing Material | ABS Injection Moulded Plastic |
| Voltage | 230V Single Phase |
| Frequency | 50/60Hz |
| Motor Type | External Rotor Squirrel Cage Induction Motor |
| Motor Poles | 2 Pole |
| Power Input | 0.18 kW |
| Current Draw | 0.79 A |
| Speed | 41 rps |
| Noise Level | 62 dB(A) @ 3m |
| Maximum Operating Temperature | 50°C |
| Weight | 3.5 kg |
| Motor Protection | IP44 |
| Thermal Protection | Manual Reset Protection |
What's in the box
What's in the box
- [1] x Fantech Minitube Duct Mounted Axial Fan 300MM (12" Inch) - MTP302 | 2 Pole | Plastic Housing
