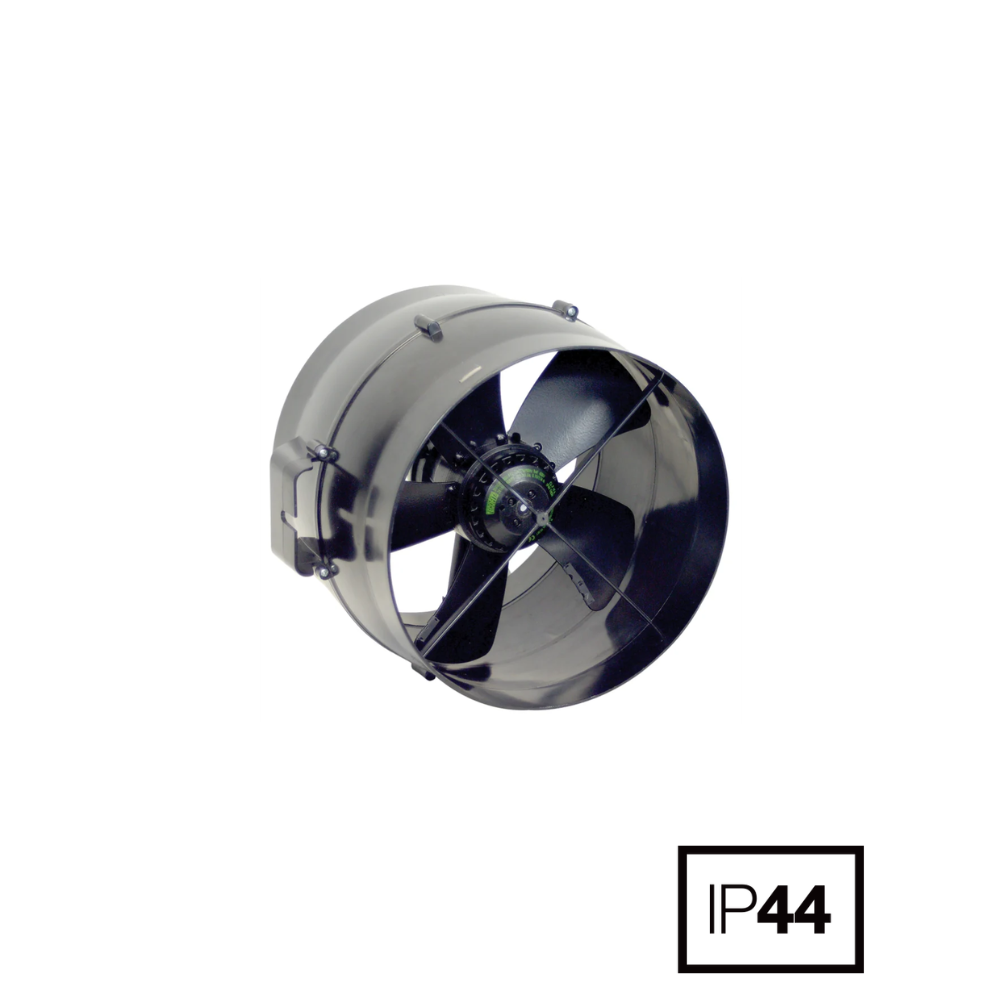

Fantech Minitube Duct Mounted Axial Fan 300MM (12" Inch) - MTP304 | 4 Pole | Plastic Housing
Power Consumption 90W | IP44
Fantech Minitube Duct Mounted Axial Fan 300MM (12" Inch) - MTP...
Description
Description
The Fantech MTP304 Minitube Axial Fan is a high-quality duct-mounted ventilation fan engineered for applications where quieter operation and reliable airflow performance are essential. Featuring a robust ABS injection moulded plastic housing and a low-speed 4-pole external rotor motor, this 300mm axial fan delivers effective ventilation while maintaining lower noise levels compared to higher-speed alternatives.
Designed to suit standard 300mm ducting systems, the MTP304 is suitable for residential, commercial, industrial, and hydroponic ventilation applications. The fan is supplied complete with a convenient flex and plug connection, allowing for quick installation without complex wiring requirements. Its versatile design enables mounting in any position, providing flexibility across a wide range of ventilation projects.
The durable powder-coated steel impeller ensures dependable airflow performance and long-term reliability, while sealed-for-life ball bearings minimise maintenance requirements. Integrated manual reset thermal protection provides additional motor safety and operational protection.
With a low noise level of just 47dB(A) at 3 metres, speed-controllable operation, and durable construction, the Fantech MTP304 Minitube Axial Fan is an ideal solution for ducted ventilation systems requiring quieter airflow performance and installation flexibility.
Features
Features
- 300mm Duct Mounted Axial Fan - Designed to suit standard 300mm ventilation ducting.
- Low Noise 4-Pole Motor - Quieter operation at only 47dB(A) at 3 metres.
- ABS Plastic Housing - Lightweight, corrosion-resistant, and durable construction.
- Flex and Plug Included - Plug-and-play installation for convenience.
- Speed Controllable - Compatible with speed controllers for adjustable airflow.
- External Rotor Motor - Reliable squirrel cage induction motor technology.
- Flexible Mounting - Can be mounted in any position.
- Powder-Coated Steel Impeller - High-strength impeller for long service life.
- IP44 Motor Protection - Suitable for residential, commercial, and industrial environments.
- Integrated Thermal Protection - Manual reset motor protection fitted as standard.
Specifications
Specifications
| Specification | MTP304 |
|---|---|
| Model | MTP304 |
| Series | Minitube Axial Fan |
| Duct Size | 300 mm |
| Housing Material | ABS Injection Moulded Plastic |
| Voltage | 230V Single Phase |
| Frequency | 50/60Hz |
| Motor Type | External Rotor Squirrel Cage Induction Motor |
| Motor Poles | 4 Pole |
| Power Input | 0.09 kW |
| Current Draw | 0.41 A |
| Speed | 22 rps |
| Noise Level | 47 dB(A) @ 3m |
| Maximum Operating Temperature | 50°C |
| Weight | 3.5 kg |
| Motor Protection | IP44 |
| Thermal Protection | Manual Reset Protection |
What's in the box
What's in the box
- [1] x Fantech Minitube Duct Mounted Axial Fan 300MM (12" Inch) - MTP304 | 4 Pole | Plastic Housing
