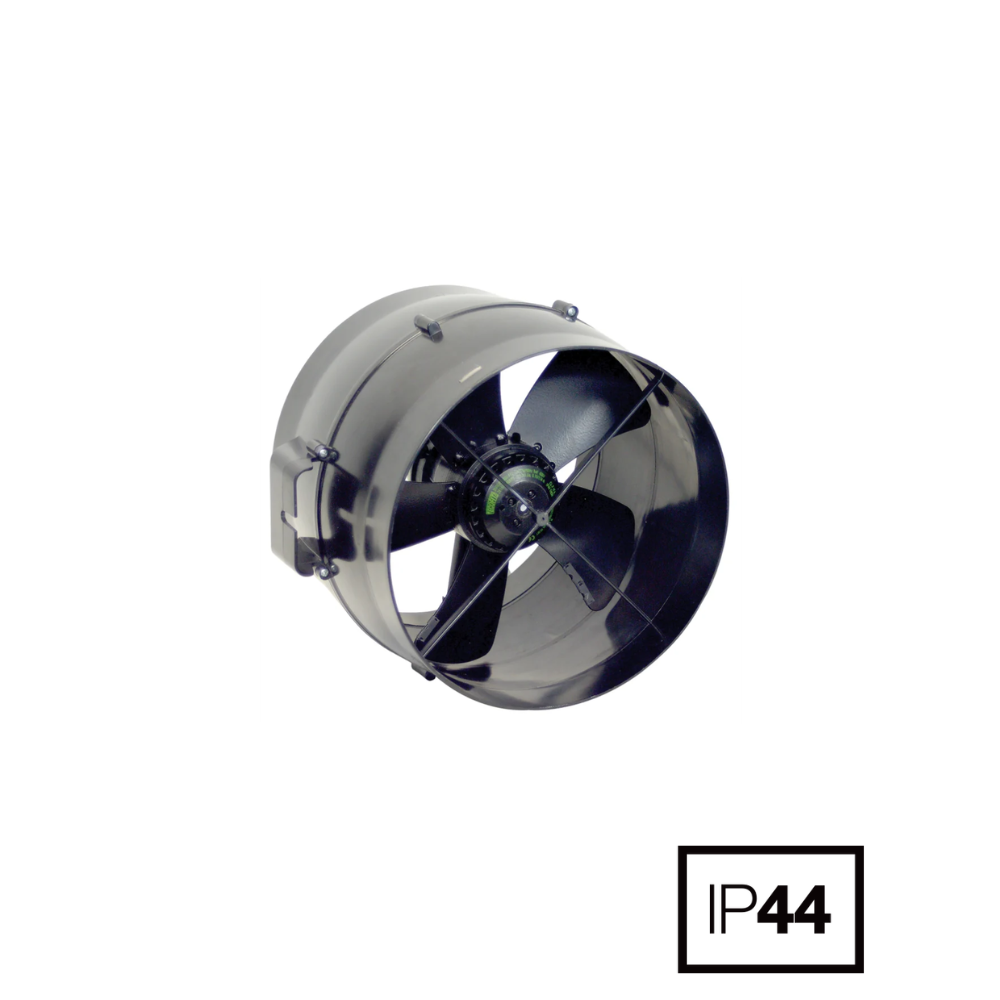

Fantech Minitube Duct Mounted Axial Fan 300MM (12" Inch) - MTP306 | 6 Pole | Plastic Housing
Power Consumption 50W | IP44
Fantech Minitube Duct Mounted Axial Fan 300MM (12" Inch) - MTP...
Description
Description
The Fantech MTP306 Minitube Axial Fan is a premium low-noise duct-mounted ventilation fan designed for applications where quiet operation and reliable airflow performance are essential. Featuring a durable ABS injection moulded plastic housing and an energy-efficient 6-pole external rotor motor, this 300mm axial fan delivers effective ventilation while maintaining exceptionally low sound levels.
Designed to suit standard 300mm ducting systems, the MTP306 is ideal for residential ventilation, commercial buildings, offices, workshops, hydroponic grow rooms, and industrial applications requiring quieter airflow operation. The fan is supplied complete with a convenient flex and plug connection, making installation quick and straightforward.
The robust powder-coated steel impeller ensures long-term durability and consistent airflow performance, while sealed-for-life ball bearings minimise maintenance requirements. Its speed-controllable motor allows airflow adjustment to suit specific ventilation needs, providing flexibility across a wide range of installations.
With an impressive low noise level of just 37dB(A) at 3 metres, integrated thermal protection, and flexible mounting options, the Fantech MTP306 Minitube Axial Fan is an excellent solution for ventilation systems where quiet performance is a priority.
Features
Features
- 300mm Duct Mounted Axial Fan - Designed for standard 300mm ventilation ducting systems.
- Ultra Low Noise 6-Pole Motor - Operates at just 37dB(A) at 3 metres for quiet performance.
- ABS Plastic Housing - Lightweight, corrosion-resistant, and durable construction.
- Flex and Plug Included - Convenient plug-and-play installation.
- Speed Controllable - Compatible with suitable speed controllers for airflow adjustment.
- External Rotor Motor - Reliable squirrel cage induction motor technology.
- Flexible Installation - Can be mounted in any position.
- Powder-Coated Steel Impeller - High-strength construction for dependable long-term operation.
- IP44 Motor Protection - Suitable for residential, commercial, and industrial environments.
- Integrated Thermal Protection - Manual reset overload protection fitted as standard.
Specifications
Specifications
| Specification | MTP306 |
|---|---|
| Model | MTP306 |
| Series | Minitube Axial Fan |
| Duct Size | 300 mm |
| Housing Material | ABS Injection Moulded Plastic |
| Voltage | 230V Single Phase |
| Frequency | 50/60Hz |
| Motor Type | External Rotor Squirrel Cage Induction Motor |
| Motor Poles | 6 Pole |
| Power Input | 0.05 kW |
| Current Draw | 0.23 A |
| Speed | 16 rps |
| Noise Level | 37 dB(A) @ 3m |
| Maximum Operating Temperature | 50°C |
| Weight | 4.8 kg |
| Motor Protection | IP44 |
| Thermal Protection | Manual Reset Protection |
What's in the box
What's in the box
- [1] x Fantech Minitube Duct Mounted Axial Fan 300MM (12" Inch) - MTP306 | 6 Pole | Plastic Housing
