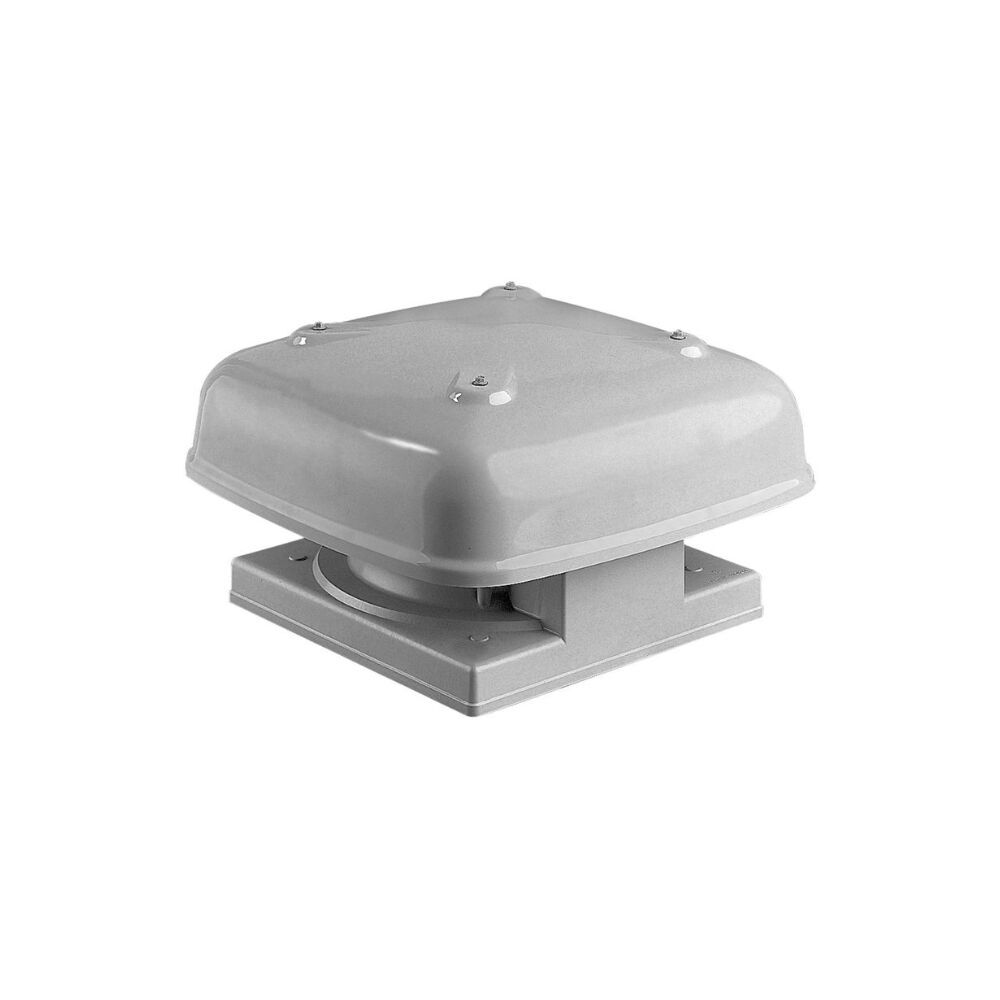

Fantech Minivent Roof Mounted Axial Exhaust Fans - MV112E | 110MM | 2 Pole | 1 Phase

The Fantech Minivent MV112E Roof Mounted Axial Exhaust Fan is a compact and efficient solution designed for both domestic and commercial ventilation needs. With a lightweight yet robust construction, this fan is suitable for a wide range of free intake or duct mounted applications. Delivering an airflow capacity of 122 M3/H, the MV112E offers quiet operation at only 33 dB(A), making it ideal for noise-sensitive environments. This unit is speed controllable, can be mounted at angles up to 300, and operates on single phase 240V power. Built to IP44 protection standards, it ensures durability and reliable performance for long-term operation.

• Robust and lightweight construction for easy handling and installation.
• Wide choice of speeds across the Minivent range for flexible applications.
• Speed controllable motor for energy efficiency and performance adjustment.
• Suitable for ducted systems in both domestic and commercial projects.
• Can be mounted at up to 30° angles for versatile installation.
• Single phase 240V operation ensures compatibility with standard Australian power supply.
• IP44 rated for protection against dust and water ingress.

• Model: MV112E
• Air Flow: 122 M³/H
• Noise Level: 33 dB(A) @ 3M
• Power Consumption: 22W
• Voltage: 240V

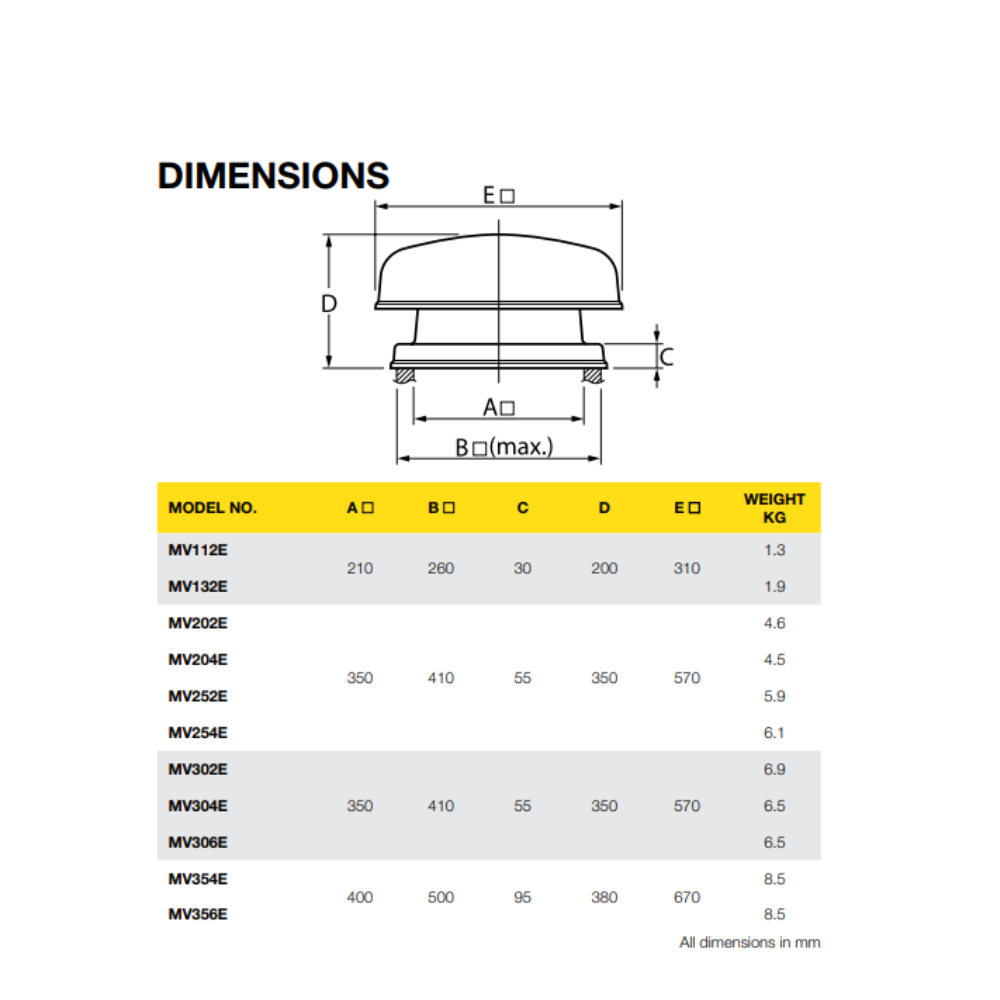

• Flange Size: 110MM (4" Inch)
• Poles: 2 Pole
• Phase: 1 Phase
• IP Rating: IP44

• [1] x Fantech Minivent Roof Mounted Axial Exhaust Fans - MV112E | 110MM | 2 Pole | 1 Phase
