Fantech Minivent Roof Mounted Axial Exhaust Fans - MV132E | 150MM | 2 Pole | 1 Phase
Air Flow 270 M³/H | Power Consumption 46W | IP44
Fantech Minivent Roof Mounted Axial Exhaust Fans - MV132E | 150MM |...
Product Overview
| Model Number | MV132E |
| Airflow (M³/H) | 270 |
| Duct Flange Size | 130MM (5.1" Inch) |
| Motor Type | AC |
| Exhaust Fan Power (W) | 46 |
| Noise Level | 43 dBA at 3M |
| IP Rating | IP44 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Backdraft Damper | No |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | Optional |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Fantech - 2 years warranty* |
Description
Description

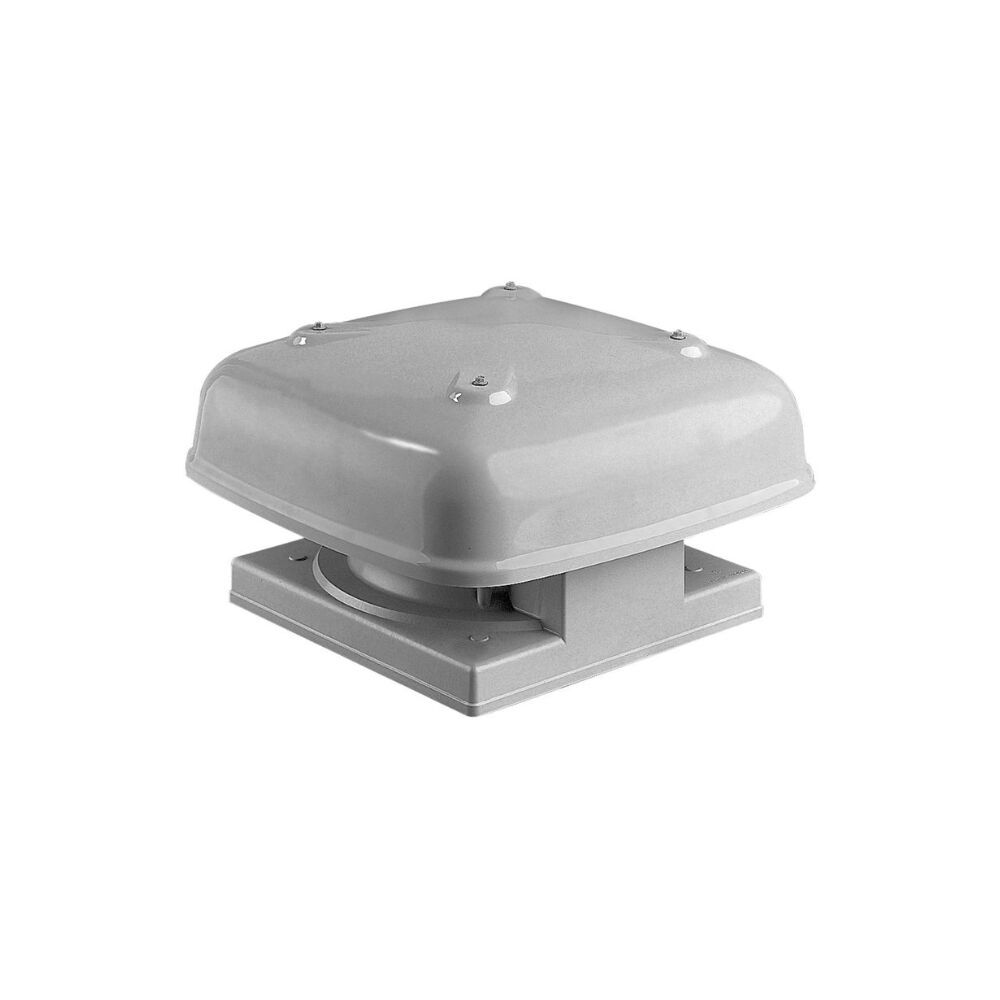

The Fantech Minivent MV132E Roof Mounted Axial Exhaust Fan delivers reliable and efficient performance for a wide range of domestic and commercial ventilation applications. With an airflow capacity of 270 M3/H and a low noise level of 43 dB(A), it is suitable for areas requiring effective extraction with minimal disruption. Built with a robust and lightweight construction, this unit is speed controllable, compatible with ducted systems, and can be installed at angles up to 300. The MV132E operates on single phase 240V power and is IP44 rated for protection against dust and water ingress, ensuring long-lasting durability and performance.
Features
Features
- Robust and lightweight design for easy installation and handling.
- Airflow capacity of 270 M³/H for efficient ventilation.
- Speed controllable motor to match performance with requirements.
- Can be used in ducted systems for flexible applications.
- Mountable at angles up to 30° for versatile installation options.
- Operates on single phase 240V for standard Australian setups.
- Noise level of just 43 dB(A) for quiet operation.
- IP44 rated for dust and moisture protection.
Specifications
Specifications
- Model: MV132E
- Air Flow: 270 M³/H
- Noise Level: 43 dB(A) @ 3M
- Power Consumption: 46W
- Voltage: 240V
- Flange Size: 130MM (5" Inch)
- Poles: 2 Pole
- Phase: 1 Phase
- IP Rating: IP44
What's in the box
What's in the box
- [1] x Fantech Minivent Roof Mounted Axial Exhaust Fans - MV132E | 150MM | 2 Pole | 1 Phase
